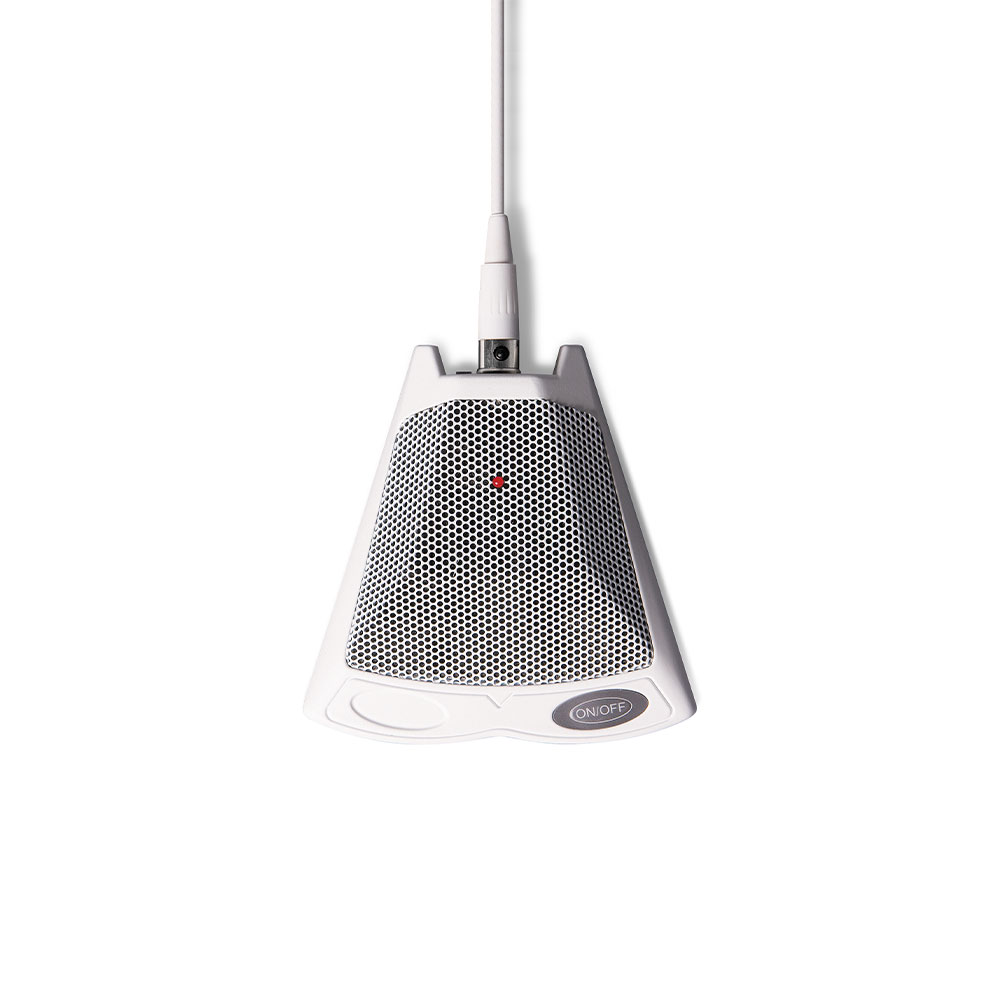

RCS Audio-Systems GFM-300 Boundary surface electret microphone with built-in power supply

Your rating:
Average rating
product review for RCS Audio-Systems GFM-300 Boundary surface electret microphone with built-in power supply
( 4.6 / 5 ) 19 ratings
RCS Audio-Systems GFM-300
This image may differ from the desired article.
184,30 EUR
( 219,32 EUR incl. VAT )
≈ £154.07  |  ≈ $203.65
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems GFM-300 Boundary surface electret microphone with built-in power supply
Datasheet:file_download Download
Lieske Part No.:700662
Mfg Part No: GFM-300
UPC/EAN: 4250458275901
Weight:0.297 kg
Graduated prices net
From piecesPrice per pieces
5171,86 EUR
10159,42 EUR
15146,98 EUR
20134,54 EUR

Product information for RCS Audio-Systems GFM-300:

The GFM-300 from RCS Audio-Systems is a professional boundary electret microphone with cardioid polar pattern, designed for use in conference systems, presentation installations, or speech transmission applications. The microphone features clear, feedback-resistant sound reproduction and is particularly suitable for applications requiring stable and uniform speech pickup over a larger surface area. Power supply is via phantom power in the range of 11 to 52 V DC, with a typical current consumption of 2 mA. The integrated electret capsule ensures high sound quality and enables a relatively large speaking distance.

Applications
The GFM-300 is intended for use in permanently installed sound systems, such as in conference rooms, schools, administrative buildings, or public spaces. The boundary microphone design allows for discreet mounting on tables, podiums, or other flat surfaces, enabling the microphone to be visually integrated seamlessly. The cardioid polar pattern ensures that pickup is primarily from the front, reducing noise interference from the sides and rear. The integrated PTT function via a front-mounted ON/OFF switch allows manual activation of the microphone, which is useful for discussion rounds or moderated events.

Functions and Equipment in Detail
The microphone has a frequency range of 30 to 20,000 Hz, enabling natural and complete reproduction of human speech and high-frequency tones. The sensitivity is -65 dB ±3 dB at 1,000 Hz and 1 Pa, representing balanced sensitivity for typical speech applications. The maximum input level is 130 dB SPL at 1 kHz and 1 % T.H.D., ensuring high tolerance against loud speech or noise levels. The nominal impedance of 100 Ohm is suitable for stable connection to professional mixing consoles and amplifiers. The microphone is white in color, allowing visual harmonization with modern interiors.

Technology Explained Simply
The phantom power supplied through the microphone cable ensures that the microphone is powered via the same cable that transmits the audio signal. This simplifies installation, as no additional power lines are required. The electret technology uses a permanently charged foil, providing high sensitivity and stability without requiring an external charge. The cardioid polar pattern ensures targeted pickup from the front, improving sound quality and minimizing noise from the sides. The PTT function allows manual activation of the microphone, which is useful for moderated events or discussions.

Compatibility and Accessories
The GFM-300 is equipped with an XLR connector, enabling universal connection to professional audio systems. The included cable has a diameter of 3 mm and a length of approximately 5 meters, sufficient to connect the microphone to a mixing console or amplifier. The cable is white, contributing to visual integration in bright rooms. Power supply is via phantom power, so the microphone must be operated with amplifiers, mixing consoles, or microphone preamplifiers equipped accordingly.

Mounting and Installation
The microphone is designed for flat mounting on tables, podiums, or other flat surfaces. The boundary microphone design allows for discreet and stable placement. Installation requires no additional mounting elements, as the microphone is simply placed directly on the surface. Connection to the audio system is made via the included XLR cable. Phantom power supply requires a compatible preamplifier.

Advantages in Operation
The GFM-300 offers high sound quality combined with stability and durability. The integrated PTT function enables targeted use in moderated sessions. Phantom power simplifies installation and reduces the number of required cables. The white color and compact design ensure unobtrusive integration into various environments. The cardioid polar pattern ensures clear speech pickup with low feedback tendency, which is particularly beneficial in rooms with high reflectivity.

Technical data
Frequency range30 - 20.000 Hz
Directional characteristicKidney
Input level (max.)130dB SPL, 1 kHz at 1% T.H.D.
Nominal impedance100 Ohm
Sensitivity-65dB ±3dB at 1.000 Hz at 1Pa
Accessories / Scope of deliveryCable Ø 3 mm – approx. 5 m (XLR), white
Power supplyPhantom power (11-52 V DC), 2mA typical
ColourWhite
Dimensions (W x H x D)102 x 104 x 22 mm


Product data sheet
Datasheet for RCS Audio-Systems GFM-300, EAN: 4250458275901
