RCS Audio-Systems EZ-110 Installation frame for wall and ceiling-mounted speakers series SC-100 content_copy

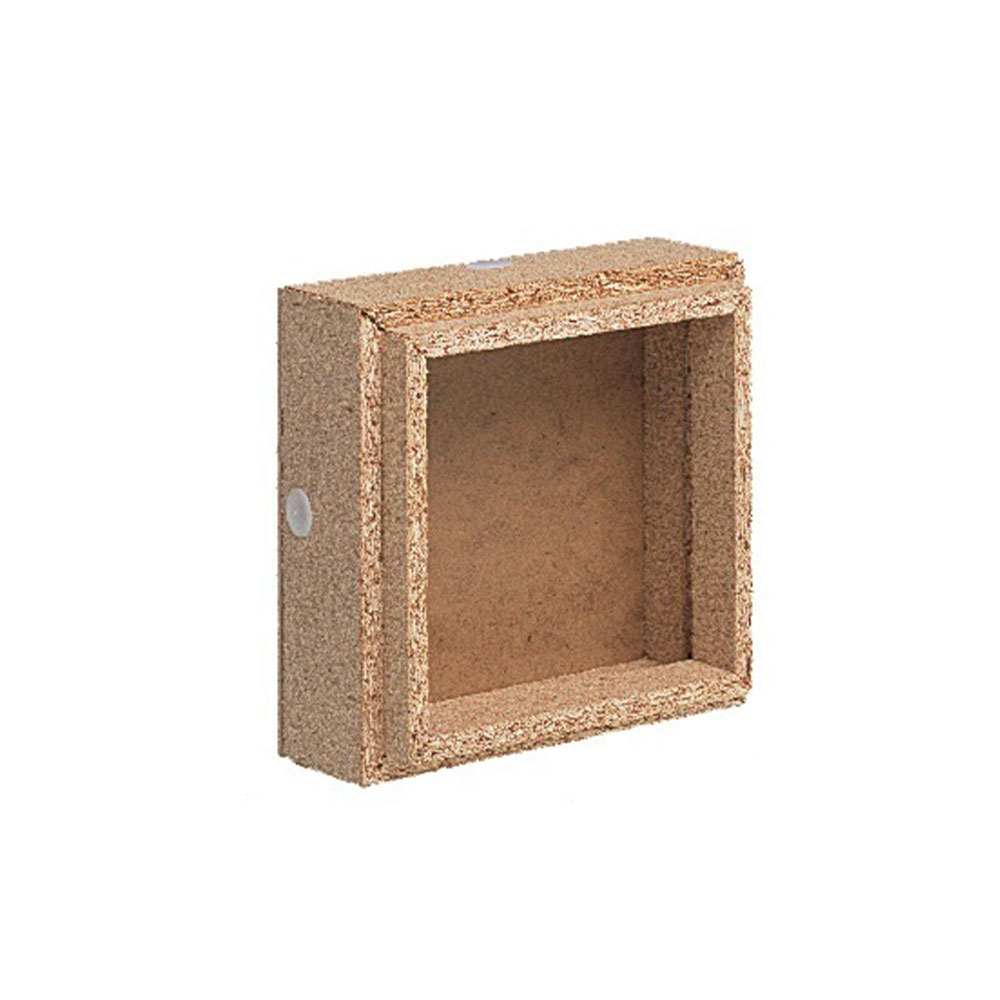

The EZ-110 mounting frame from RCS Audio-Systems is an accessory for installing in-ceiling or in-wall speakers from the SC-100 series into ceilings or walls. It serves as a stable mounting aid for the speaker models SC-104, SC-106, and SC-110, enabling secure and neat installation in building elements such as brick or concrete structures. The frame is made of impregnated particleboard, ensuring high mechanical stability and a precise fit for the intended speakers. The external dimensions are 193 mm (width) × 193 mm (height) × 84 mm (depth), matching the standard dimensions of the SC-100 series.

Mounting frame

The frame is specifically designed for use in ceiling and wall installation scenarios. It is inserted into the pre-cut opening, with the impregnated particleboard providing sufficient strength to securely hold the speakers. Use in building materials such as brick or concrete is intended, as the frame offers a stable base for mounting. The external dimensions of 193 × 193 × 84 mm correspond to the dimensions of the SC-100 series speakers, ensuring a precise fit.

System compatibility

The EZ-110 mounting frame belongs to the SC-100 series and is specifically designed for the speaker models SC-104, SC-106, and SC-110. This system compatibility ensures compatible mounting and uniform optical and functional integration into existing sound systems. The frame is not a standalone speaker system, but an auxiliary component for installing the specified speakers.

Material and construction

The frame is made of impregnated particleboard, a material suitable for its strength and shape stability in building components. The impregnated coating increases resistance to moisture and mechanical stress, which is particularly beneficial when installed in walls or ceilings. The dimensions of 193 mm width, 193 mm height, and 84 mm depth are tailored to the in-ceiling speakers of the SC-100 series, enabling secure and rear-sealed mounting.

Compatibility and accessories

The frame is exclusively intended for the speaker models SC-104, SC-106, and SC-110. These models belong to the SC-100 series and are designed as in-ceiling speakers for 100-V systems. Compatible accessories also offered include in-ceiling speakers with power ratings of 4 W and 6 W, also available in white finish for 100-V systems. Combining the frame with these speakers enables professional installation in buildings with existing sound systems.

Mounting and installation

Installation is performed by inserting the frame into a pre-cut opening in the ceiling or wall. The frame is positioned to securely hold the speakers and provide a flat surface for mounting. Use in brick or concrete structures is intended, with the frame serving as a stable base. No additional mounting aids or tools are specifically required for the frame, as installation is carried out using standard fastening methods.

Operational advantages

Using the EZ-110 mounting frame ensures secure and durable speaker mounting. The impregnated particleboard provides high mechanical stability, keeping the speakers firmly in place even under mechanical stress or over time. The precise fit with models SC-104, SC-106, and SC-110 ensures uniform installation and prevents gaps or movement during installation. The frame is thus an integral component for professional and long-lasting installation of in-ceiling speakers in the SC-100 series.

Technical data
Dimensions (W x H x D)	193 x 193 x 84 mm
System compatibility	SC-100 series

---
