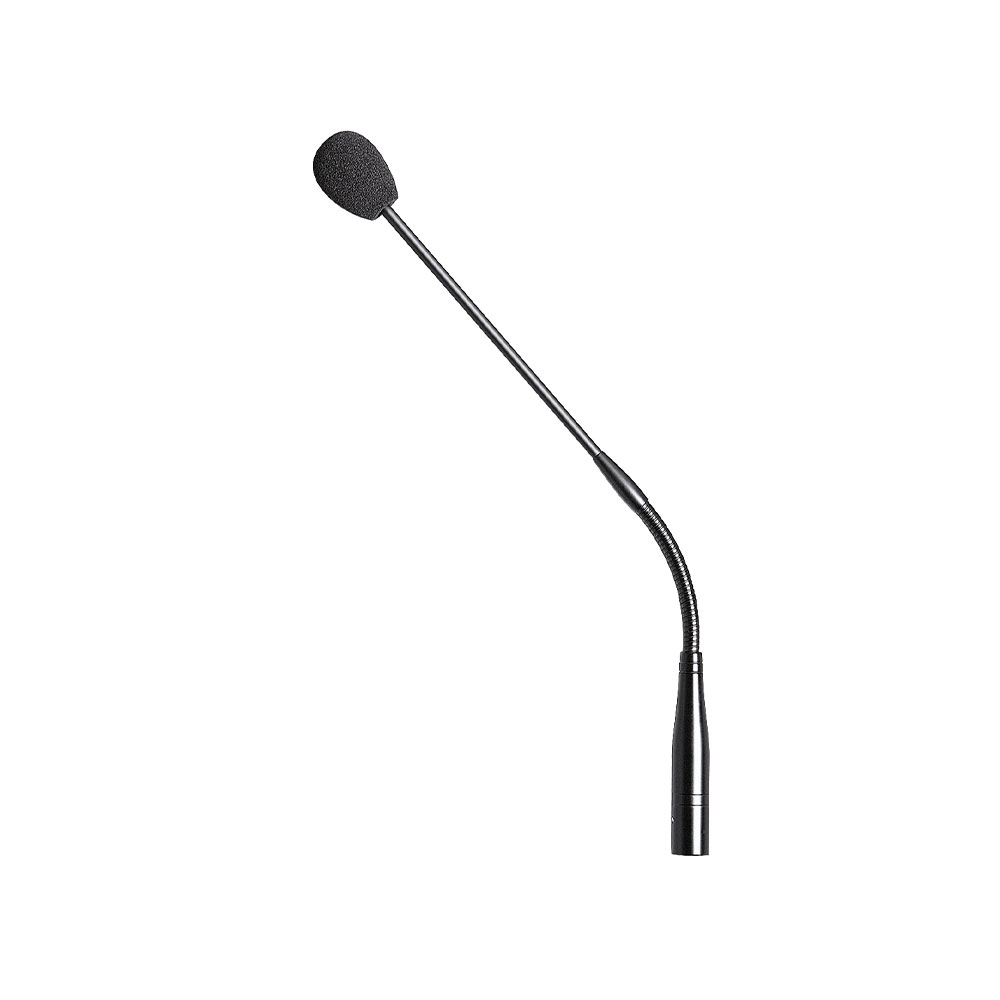

RCS Audio-Systems EXM-420 Electret gooseneck microphone

Your rating:
Average rating
product review for RCS Audio-Systems EXM-420 Electret gooseneck microphone
( 4.3 / 5 ) 19 ratings
RCS Audio-Systems EXM-420
This image may differ from the desired article.
146,30 EUR
( 174,10 EUR incl. VAT )
≈ £122.31  |  ≈ $161.66
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems EXM-420 Electret gooseneck microphone
Datasheet:file_download Download
Lieske Part No.:965899
Mfg Part No: EXM-420
UPC/EAN: 4250458259451
Weight:0.2 kg
Graduated prices net
From piecesPrice per pieces
5136,42 EUR
10126,55 EUR
15116,67 EUR
20106,80 EUR

Product information for RCS Audio-Systems EXM-420:

The electret gooseneck microphone EXM-420 from RCS Audio-Systems is a professional condenser microphone with cardioid characteristic, specifically designed for use in conference systems, presentations, podiums or other applications requiring permanently installed microphones. The device features a flexible gooseneck with a total length of 424 mm, enabling precise alignment of the microphone. The electret capsule is powered via phantom power (9–52 V DC), ensuring stable power supply through the microphone cable. The nominal impedance is 200 Ohm, providing good compatibility with standard amplifiers and mixing consoles. Sensitivity is rated at -65 dB ±3 dB at 1.000 Hz and 1 Pa, representing balanced sensitivity for typical speech applications. The maximum input level is 145 dB SPL at 1 kHz and 1 % T.H.D., offering high headroom for louder speakers or ambient noise. The frequency range extends from 50 Hz to 18.000 Hz, ensuring natural and detailed sound across the entire speech and music spectrum. The microphone is finished in black and has a diameter of 19 mm, making it visually discreet and robust.

Applications

The EXM-420 is particularly suitable for permanent installations in conference rooms, lecture halls, courtrooms or public administration environments, where clear, feedback-resistant speech transmission is required. The cardioid characteristic ensures that the microphone primarily picks up sound from the direction of the speaker while reducing noise from the sides or rear. The integrated wind and pop protection minimizes unwanted air noise and plosive sounds, improving speech quality. The flexible gooseneck construction allows individual adjustment, enabling optimal alignment with the speaker.

Functions and Equipment in Detail

The microphone features an integrated windscreen and an XLR connector, which can be directly connected to mixing consoles, amplifiers or digital audio systems. Phantom power is transmitted through the microphone cable, eliminating the need for additional power sources. The capsule is designed to offer high feedback resistance, which is advantageous when used in enclosed rooms with loudspeakers. The integrated gooseneck construction is robust and allows for durable, stable positioning.

Technology Explained Simply

The electret technology provides a constant charge in the capsule, eliminating the need for external polarizing voltage — power is supplied exclusively via phantom power. The cardioid characteristic means the microphone primarily picks up sound from one direction, reducing interference from the sides or rear. Phantom power (9–52 V DC) is transmitted through the microphone cable, enabling simple and cable-efficient power supply. The sensitivity of -65 dB is typical for speech applications and ensures balanced volume without overloading. The maximum input level of 145 dB SPL allows recording even loud speakers without distortion.

Compatibility and Accessories

The EXM-420 is compatible with all standard devices that support phantom power, such as mixing consoles, amplifiers, digital recorders or conference systems. The XLR connector is universally usable and enables a secure, interference-free connection. The microphone can be mounted directly onto a device, as a mounting thread is provided at the lower end of the gooseneck, which can be secured with a matching nut. This allows mounting on amplifiers, control panels or other equipment. The delivery includes the windscreen and the XLR connector.

Installation and Mounting

Mounting is done via the integrated mounting thread at the lower end of the gooseneck. The nut is screwed on to securely fix the microphone. The flexible gooseneck construction allows individual adjustment, enabling optimal alignment with the speaker. Connection is made via the XLR connector to the audio system. Phantom power is transmitted through the cable, eliminating the need for additional power sources.

Operational Advantages

The EXM-420 offers high speech clarity, stable power supply via phantom power, and robust, flexible mounting. The integrated wind and pop protection functions ensure clean recording. The cardioid characteristic reduces interference from the sides, which is particularly beneficial in rooms with multiple people. The length of 424 mm allows optimal placement for speakers of different heights. Use in conference and presentation systems is especially suitable due to the high quality and reliability.

Technical data
Sensitivity-65dB ±3dB at 1.000 Hz at 1Pa
Power supplyPhantom power (9 – 52 V DC), 2mA typical
Accessories / Scope of deliveryWindshield, XLR connector
Input level (max.)145dB SPL, 1 kHz at 1% T.H.D.
ColourBlack
Nominal impedance200 Ohm
Directional characteristicKidney
Dimensions (Ø x H)Ø 19 mm x 424 mm
Frequency range50 - 18.000 Hz


Product data sheet
Datasheet for RCS Audio-Systems EXM-420, EAN: 4250458259451

Questions & answers

What is the delivery time of RCS Audio-Systems EXM-420 Electret gooseneck microphone?

The article RCS Audio-Systems EXM-420 Electret gooseneck microphone is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems EXM-420 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems EXM-420 Electret gooseneck microphone always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems EXM-420 Electret gooseneck microphone if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of RCS Audio-Systems EXM-420 Electret gooseneck microphone we can offer you a price of 136,42 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
