RCS Audio-Systems ESP-2000 B EN 54-4 emergency power supply, 1 U, certified according to EN 54-4

Your rating:
Average rating
product review for RCS Audio-Systems ESP-2000 B EN 54-4 emergency power supply, 1 U, certified according to EN 54-4
( 4.5 / 5 ) 187 ratings

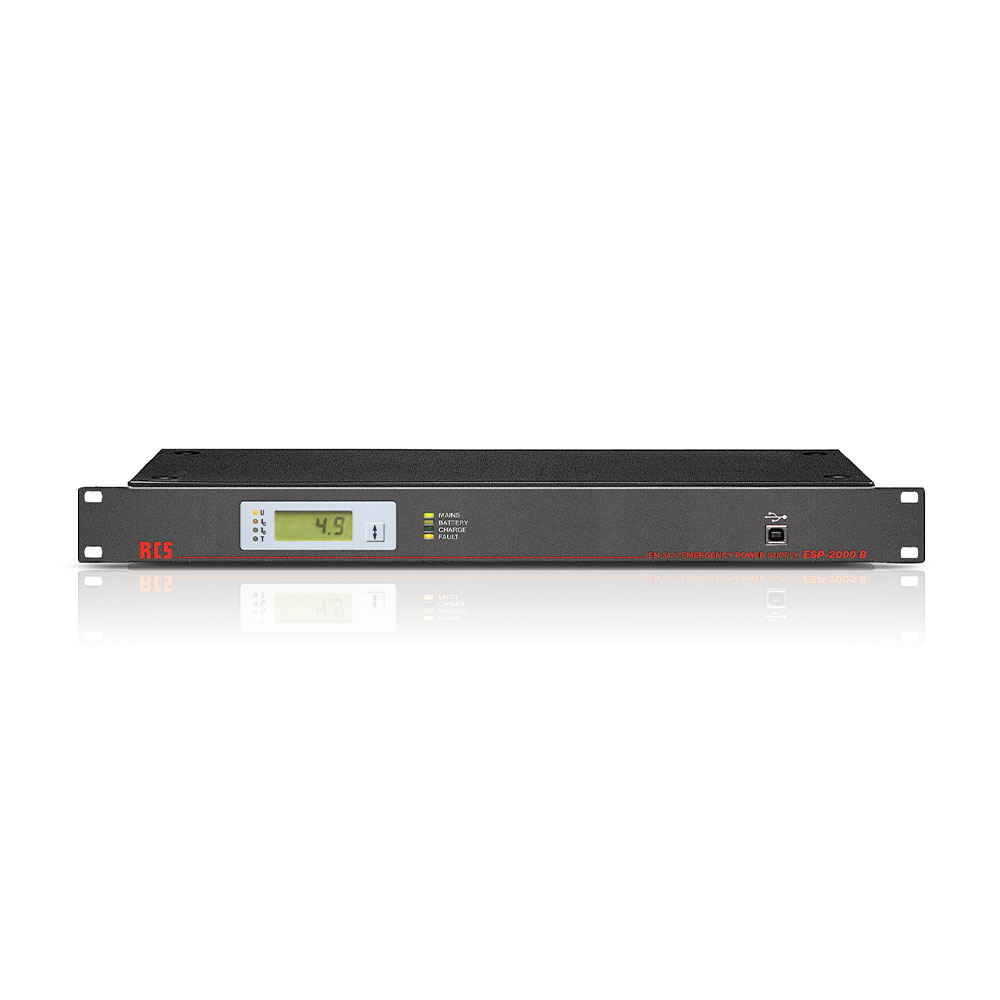

RCS Audio-Systems ESP-2000 B
This image may differ from the desired article.
2.261,00 EUR
( 2.690,59 EUR incl. VAT )
≈ £1,890.20  |  ≈ $2,484.84
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems ESP-2000 B EN 54-4 emergency power supply, 1 U, certified according to EN 54-4
Datasheet:file_download Download
Lieske Part No.:101625
Mfg Part No: ESP-2000 B
UPC/EAN: 4250458232201
Weight:5.3 kg
Type:ESP-2000B
Graduated prices net
From piecesPrice per pieces
22.108,38 EUR
41.955,76 EUR
61.803,15 EUR
81.650,53 EUR

Product information for RCS Audio-Systems ESP-2000 B:

The emergency power management ESP-2000 B from RCS Audio-Systems is a certified emergency power supply for voice alarm systems, meeting the requirements of standard VDE 0833 – Part 4. The device is certified according to EN 54-4:2007 and serves as digital emergency power management to ensure safe power supply for amplifiers in emergency situations. It is designed in a 48,3 cm ( 19 inch )-rack format with a height of 1 HE and enables integration into existing alarm and public address systems. Power supply is via a 230 V AC (50–60 Hz) source, with power consumption at 384 W. The charging cut-off voltage is approximately 27.1 V DC, and the maximum charging current is specified as 16 A. The battery capacity can range between 65 and 320 Ah, and all commercially available lead-acid batteries can be used.

Applications

The ESP-2000 B is specifically designed for voice alarm systems used in public buildings, transport facilities, industrial plants, or other critical infrastructures. It ensures continuous power supply to amplifiers even if the mains voltage fails. The application is in emergency warning systems, where reliable and immediate power supply for alarm activation is essential. Certification according to EN 54-4 and EN 12101-10, as well as compliance with NFS 61940, ensures adherence to European safety and functional standards.

Functions and Equipment in Detail

The device continuously monitors the mains voltage status and automatically switches to emergency power supply in case of failure. It features mains fault monitoring with automatic switching to emergency power mode. Battery fault monitoring is performed by measuring internal resistance, enabling early detection of defects. The 6 power outputs for amplifiers are each rated at 30 A and monitored to ensure safe operation. An equalization charge prevents voltage differences between individual battery cells, extending battery life. The fast charging function with up to 16 A allows rapid charging even with large battery capacities.

Technology Explained Simply

Power supply is provided via a switch-mode power supply, which converts the 230 V AC input voltage into the required DC voltage for charging. The digital charging unit precisely controls the charging process, with the temperature sensor adjusting the permissible charging current according to the actual temperature in the ELA enclosure to prevent overheating. The integrated deep discharge protection safeguards 24 V battery sets from excessive discharge, which could cause damage. Faults are indicated via LEDs on the front panel, a buzzer, and a potential-free changeover contact on the rear. The fault alarm contacts are implemented as drop-out relays in the event of a fault, enabling clear signaling.

Compatibility and Accessories

The ESP-2000 B is compatible with all commercially available lead-acid batteries and can be combined with external battery sets such as the BA-140 (65 Ah) or BA-160 (78 Ah). Configuration of operating parameters is done via a USB interface, with the configuration software included in the delivery scope. The rear of the device provides connections for temperature sensors, external fault alarms, and an Ethernet connection (RJ-45) for network integration. The connections for the 6 amplifier outputs are clearly labeled, enabling easy integration into existing systems.

Mounting and Installation

The device is designed for 48,3 cm ( 19 inch )-rack mounting and occupies a height of 1 HE. Dimensions are 483 x 44 x 358 mm (W x H x D). Installation is carried out in a suitable enclosure, taking into account the temperature conditions required for the operation of the temperature sensor. The connections are clearly labeled, making installation straightforward even for technicians without specific knowledge of the device.

Advantages in Operation

The digital control enables precise and reliable battery charging, extending battery life. The automatic switching during mains failures ensures uninterrupted power supply to amplifiers. Fault diagnosis via LED, buzzer, and relay contact allows for quick identification and resolution of malfunctions. Certification according to EN 54-4 ensures compliance with safety requirements for emergency warning systems in Europe. USB configuration offers flexibility in adapting operating parameters to specific requirements.

Note: Batteries are not included in the delivery scope.

Technical data
Height units1 HE
Dimensions (W x H x D)483 x 44 x 358 mm; 1 HE
Charging cut-off voltageca. 27,1 V DC
Power source230 V AC (50-60 Hz)
Power consumption384 W
Loading currentmax. 16 A
Battery capacity65-320 Ah
19" rack mountingJa


Product data sheet
Datasheet for RCS Audio-Systems ESP-2000 B, EAN: 4250458232201
