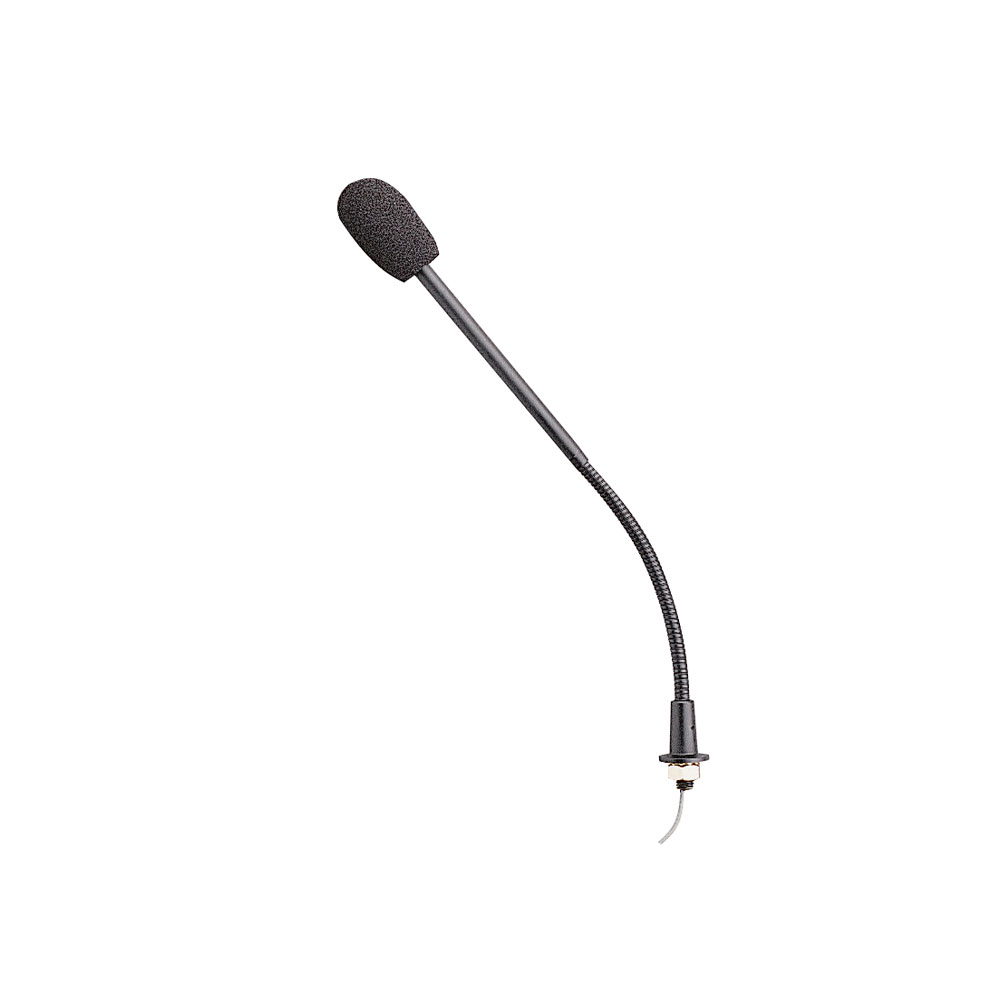

RCS Audio-Systems EGM-300 Gooseneck microphone, unbalanced, electret with free ends
|
86,45 EUR |
|||||||||||
|
( 102,88 EUR incl. VAT ) ≈ £72.27 | ≈ $95.53 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 200277 | ||||||||||
| Mfg Part No: | EGM-300 | ||||||||||
| UPC/EAN: | 4250458207810 | ||||||||||
| Weight: | 0.08 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems EGM-300:
Applications
This microphone is particularly suitable for installation in equipment front panels, control consoles, or amplifiers. The flexible mounting, enabled by the M8 mounting thread at the base of the gooseneck, allows for secure and stable installation. The length of 290 mm provides sufficient space for precise alignment, allowing the microphone to be optimally positioned towards the speaker.
Functions and Features in Detail
The EGM-300 features a cardioid polar pattern, which captures sound primarily from the front of the microphone while reducing sound from the sides and rear. This minimizes the risk of feedback, especially in systems with speakers in close proximity. The sensitivity is -78 dB ±3 dB, representing a balanced sensitivity for typical voice applications. The frequency range of 100 to 15,000 Hz covers the relevant range for voice transmission and ensures clear, natural reproduction without unnecessary distortions.
Technology Explained Simply
The microphone is powered by phantom power in the range of 9 to 24 V DC. The power supply is external, meaning the microphone operates independently of an internal battery or dedicated power supply. The connection cable is unbalanced and has free ends (1 conductor + shield), allowing for individual connection solutions. The nominal impedance of 1.2 kOhm is suitable for use with standard amplifiers and mixing consoles. The dimensions are Ø 16 mm x 290 mm, with a weight of approximately 80 g. The color is black, enabling discreet integration into technical equipment.
Compatibility and Accessories
The microphone is designed for use with devices that provide phantom power, such as mixing consoles, amplifiers, or digital audio systems. The unbalanced wiring with free ends requires individual wiring, which can be adapted according to the application. The product includes a windscreen to reduce pickup of wind and plosive sounds. Additionally, an M8 nut, a lock washer, and a flat washer are included in the delivery scope to ensure secure mounting.
Mounting and Installation
Mounting is performed via the M8 mounting thread at the base of the gooseneck. The included mounting accessories (nut, lock washer, flat washer) enable secure fastening into panels or equipment front panels. The flexible gooseneck design allows for precise alignment of the microphone towards the speaker, optimizing voice pickup.
Operational Advantages
Thanks to the cardioid polar pattern and integrated windscreen, the EGM-300 delivers clear, feedback-resistant voice transmission. The flexible mounting and individual connection options via free ends make it a universally applicable microphone for professional applications. Phantom power enables easy integration into existing systems without requiring additional power supply units.
| Technical data | |
| Power supply | Phantom power (9 – 24 V DC), externally unsymmetrical free ends |
| Nominal impedance | 1.2 kOhm |
| Accessories / Scope of delivery | M8 nut, lock washer, flat washer, wind protection |
| Colour | Black |
| Directional characteristic | Kidney |
| Frequency range | 100 - 15.000 Hz |
| Sensitivity | -78 dB, ±3 dB |
| Dimensions (Ø x H) | Ø 16 mm x 290 mm |
