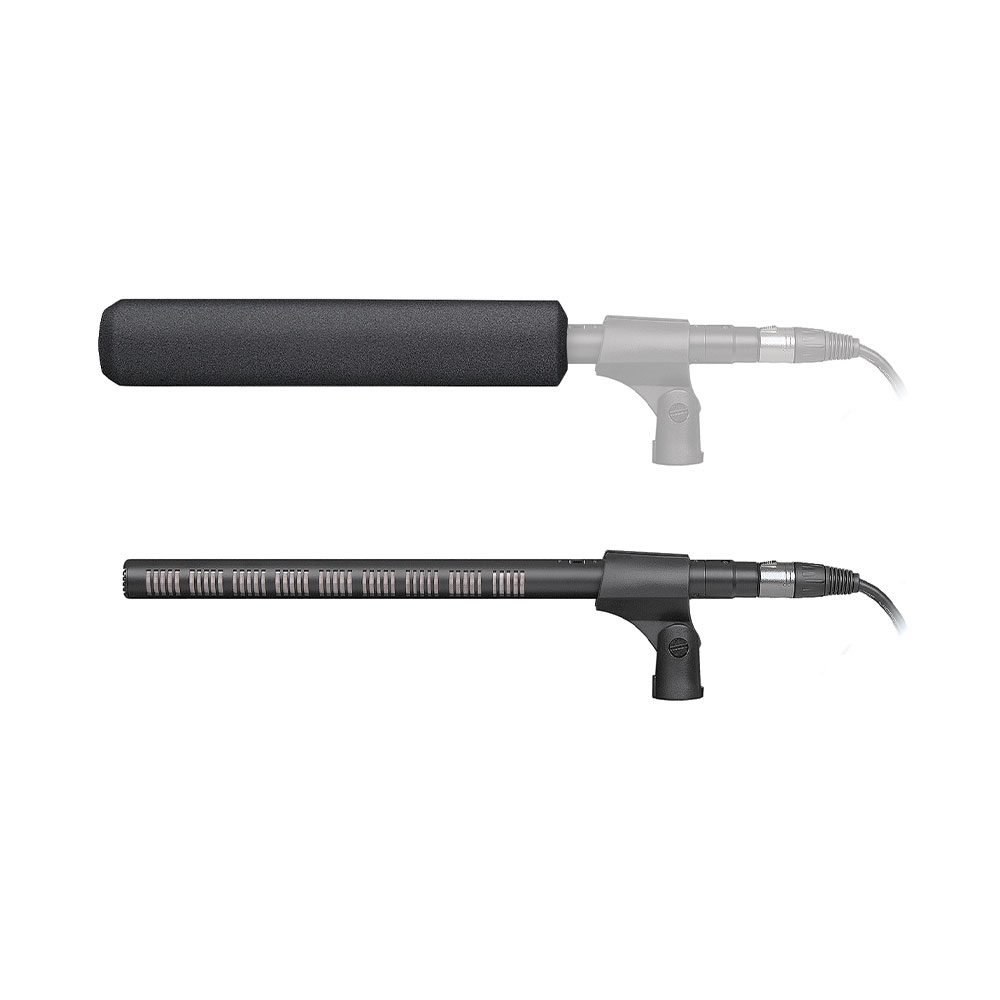

RCS Audio-Systems ECM-400 Electret shotgun microphone with phantom power

Your rating:
Average rating
product review for RCS Audio-Systems ECM-400 Electret shotgun microphone with phantom power
( 4.6 / 5 ) 25 ratings
RCS Audio-Systems ECM-400
This image may differ from the desired article.
260,30 EUR
( 309,76 EUR incl. VAT )
≈ £217.61  |  ≈ $287.63
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems ECM-400 Electret shotgun microphone with phantom power
Datasheet:file_download Download
Lieske Part No.:805301
Mfg Part No: ECM-400
UPC/EAN: 4250458247410
Weight:0.2 kg
Graduated prices net
From piecesPrice per pieces
4242,73 EUR
8225,16 EUR
12207,59 EUR
16190,02 EUR

Product information for RCS Audio-Systems ECM-400:

The ECM-400 from RCS Audio-Systems is an electret shotgun microphone with a cardioid characteristic, designed for targeted capture of sound sources from a distance. It features high directivity and is therefore suitable for applications requiring precise directional alignment, such as professional audio and video recording, reporting, or live transmission. The microphone is powered via phantom power at 9 to 52 V DC and has a nominal impedance of 150 Ohm, making it compatible with standard amplifiers and mixing consoles.

Applications

The ECM-400 is designed for universal use, particularly in situations requiring high consonant intelligibility and the ability to capture sound sources from a distance. Its optimized frequency response ensures accurate reproduction of subtle tonal differences and speech clarity. It is therefore especially suitable for outdoor recordings, sports events, interviews, or film and television production, where the sound source cannot be placed directly in front of the microphone.

Functions and Equipment in Detail

The microphone features an integrated bass roll-off switch, which can be toggled between two settings: Flat (flat, no filter) or Roll-Off (bass attenuation). This allows adaptation to different environmental conditions, such as reducing wind noise or unwanted low-frequency content. The maximum input level is 130 dB SPL at 1 kHz and 1 % THD, ensuring high tolerance for loud sound sources. The dynamic range is 110 dB, and the signal-to-noise ratio is 74 dB at 1 kHz, indicating good audio quality.

Technology Explained Simply

The shotgun characteristic of the ECM-400 means the microphone picks up sound in a very narrow direction, effectively suppressing noise from side and rear directions. The nominal impedance of 150 Ohm is standard for professional applications and ensures optimal impedance matching with amplifiers and mixing consoles. The frequency response of 30 to 20,000 Hz covers the entire audible range, enabling capture of fine tonal nuances.

Compatibility and Accessories

The ECM-400 is compatible with all devices supporting phantom power in the range of 9 to 52 V DC, such as professional mixing consoles, recording devices, or editing systems. The package includes a windscreen and a microphone mount, facilitating use outdoors or in mobile recording situations. The windscreen reduces wind noise, while the mount enables secure installation.

Mounting and Installation

Mounting is done using the included microphone mount, which can be attached to tripods, cameras, or other holders. Phantom power is supplied via the cable, eliminating the need for additional power sources.

Operational Advantages

The ECM-400 offers high sensitivity combined with effective noise suppression, resulting in clear and detailed audio reproduction. The combination of shotgun characteristic and integrated roll-off switch allows flexible adaptation to various operating conditions. Its compact design, with a diameter of 21 mm and a height of 32.5 mm, makes the microphone easy to handle and discreet in use.

Technical data
Max. input level130 dB SPL, 1 kHz at 1 % THD
Dimensions (Ø x H)Ø 21 mm x 32,5 mm
Accessories / Scope of delivery1 windscreen, 1 microphone holder
Frequency range30 - 20.000 Hz
SwitchBass - Roll-Off switch or Flat
Directional characteristicshotgun
Power supplyPhantom Power 9-52V DC, 2 mA typical
Dynamic range110 dB, 1 kHz at Max. SPL; S/N Ratio 74 dB, 1 kHz
Nominal impedance150 Ohm


Please note...
If you pay by prepayment or on account, we will ship this article for free within Germany ! Note that although the delivery charges will be shown to you in the shopping cart, we won't charge them.
Product data sheet
Datasheet for RCS Audio-Systems ECM-400, EAN: 4250458247410

Questions & answers

What is the delivery time of RCS Audio-Systems ECM-400 Electret shotgun microphone with phantom power?

The article RCS Audio-Systems ECM-400 Electret shotgun microphone with phantom power is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems ECM-400 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems ECM-400 Electret shotgun microphone with phantom power always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems ECM-400 Electret shotgun microphone with phantom power if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of RCS Audio-Systems ECM-400 Electret shotgun microphone with phantom power we can offer you a price of 242,73 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
