RCS Audio-Systems CSP-220 Sound projector, 20 W, with 100 V transformer

Your rating:
Average rating
product review for RCS Audio-Systems CSP-220 Sound projector, 20 W, with 100 V transformer
( 4.4 / 5 ) 58 ratings

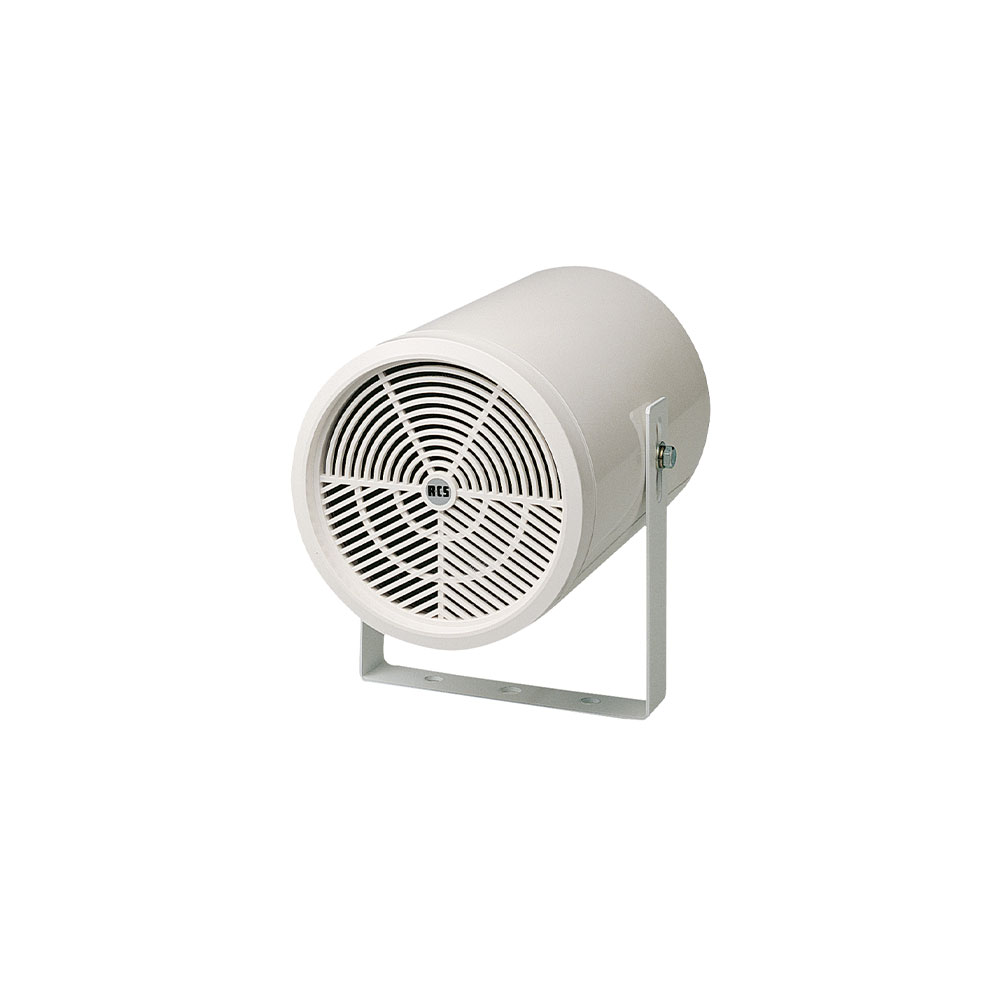

RCS Audio-Systems CSP-220
This image may differ from the desired article.
RCS Audio-Systems CSP-220RCS Audio-Systems CSP-220
112,10 EUR
( 133,40 EUR incl. VAT )
≈ £93.72  |  ≈ $123.87
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems CSP-220 Sound projector, 20 W, with 100 V transformer
Lieske Part No.:228228
Mfg Part No: CSP-220
UPC/EAN: 4250458283210
Weight:2.2 kg
Graduated prices net
From piecesPrice per pieces
5105,37 EUR
1098,65 EUR
1591,92 EUR
2085,20 EUR

Product information for RCS Audio-Systems CSP-220:

The CSP-220 from RCS Audio-Systems is a sound projector designed for use in ELA systems (Electronic Loudspeaker Systems), suitable for both voice alarm and background music applications. The device combines the sound pressure level of a pressure chamber loudspeaker with the broadband characteristics of a dynamic loudspeaker, enabling clear speech intelligibility and simultaneously high-quality music reproduction. The housing is made of scratch- and impact-resistant plastic and is finished in white (similar to RAL 9010), allowing it to blend visually into many indoor and protected outdoor environments. The loudspeaker is designed in a trumpet shape, which directs sound radiation precisely and ensures a defined directional characteristic.

Applications

The CSP-220 is intended for use in indoor spaces as well as protected outdoor areas where clear voice transmission and sufficient sound level are required. Typical applications include public buildings, administrative buildings, schools, shopping centres, or industrial facilities, where voice alarms or background music are played via a central loudspeaker system. The protection rating IP 44 according to DIN 40050 protects the device against splashing water and dust, enabling its use outdoors under protected conditions, for example under canopies or in covered areas.

Functions and Equipment in Detail

The device features a 16,5 cm ( 6,5 inch ) Twin-Cone loudspeaker chassis, providing a wide frequency response range of 100 to 20,000 Hz (±10 dB). This frequency range covers the entire audible spectrum for speech and music, ensuring natural reproduction. The rated power handling is 20 W (program power), with music power reaching up to 35 W. The maximum sound pressure level (SPL) is 109 dB, providing sufficient loudness for larger rooms or outdoor areas. At an input power of 1 W and a distance of 1 m, the sound pressure level is 95 dB, highlighting the efficiency of the loudspeaker.

Technology Explained Simply

The CSP-220 is equipped with integrated transformers, enabling connection to 100 V-, 70 V- and 50 V-systems. For each system, three power taps (20 W, 10 W, 5 W) are available, which can be selected according to requirements. Additionally, low-impedance operation at 8 Ohm is possible, allowing flexible integration into various system concepts. Connection is made via a pre-wired cable with clearly marked conductors, enabling simple and error-free connection to the desired power level or impedance.

Compatibility and Accessories

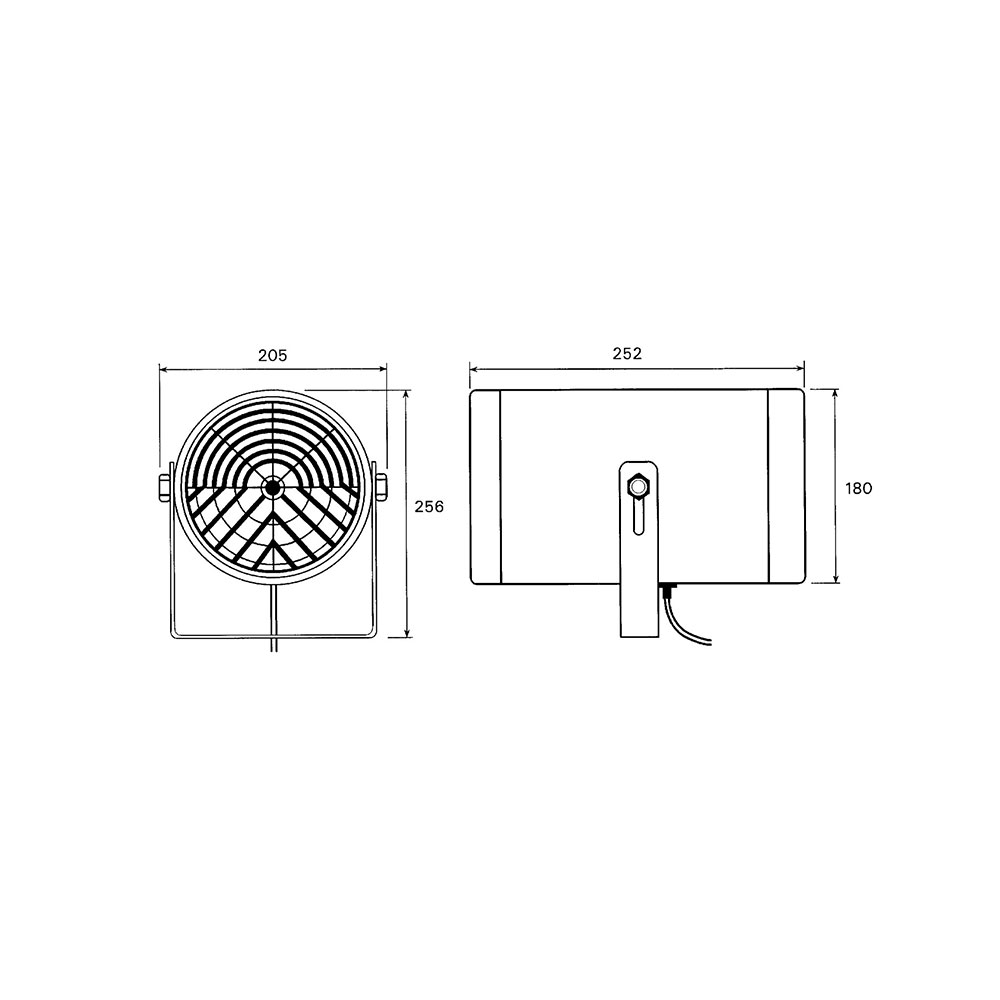

The CSP-220 can be mounted individually or in groups. When multiple units are operated in phase in vertical arrangement, the vertical radiation angle narrows, creating a column-like directional effect – ideal for targeted sound radiation into specific areas. Mounting is done using a supplied foldable mounting bracket in cream white (similar to RAL 9001), enabling flexible wall or ceiling mounting. The dimensions of the device without bracket are Ø 180 mm × 252 mm, and the net weight is 2.2 kg.

Mounting and Installation

Installation is performed using the integrated mounting bracket, which can be attached to walls or ceilings. The pre-wired connection cables with marked conductors simplify wiring, as the desired power level or impedance can be selected directly at the device. Installation is straightforward for professionals in the electrical and IT sectors, requiring no additional tools or components.

Operational Advantages

The CSP-220 offers high operational reliability due to its robust construction and integrated transformers, which allow flexible adaptation to various system voltages. Clear speech intelligibility and good music reproduction make it a universally applicable device in professional installations. The IP 44 protection rating ensures reliable operation even in outdoor conditions, as long as there is no direct exposure to precipitation. The combination of design, performance, and functionality makes the CSP-220 a reliable component of ELA systems.

Scope of Delivery

The scope of delivery includes the sound projector CSP-220, a foldable mounting bracket, and a pre-wired connection cable with marked conductors.

Technical data
Dimensions (Ø x H)Ø 180 x 252 mm (without bracket)
Sound pressure level (SPL) Pmax109 dB
Frequency range (±10dB)100 - 20.000 Hz
ShapeFunnel
Rated load capacity (program)20 W (35 W)
Speaker diameter6,5?
Degree of protection DIN 40050IP 44
ColourWhite, similar to RAL 9010
Impedance8 Ohm
Sound pressure level (SPL) 1 W/1 m95 dB
Adjustments at 100 V20 - 10 - 5 W (also 70 V and 50 V)
