RCS Audio-Systems CS-212 Speaker column, 12 W (100 V), aluminum
|
121,60 EUR |
|||||||||||
|
( 144,70 EUR incl. VAT ) ≈ £101.66 | ≈ $134.37 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 708565 | ||||||||||
| Mfg Part No: | CS-212 | ||||||||||
| UPC/EAN: | 4250458292410 | ||||||||||
| Weight: | 2.2 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems CS-212:
Applications
The CS-212 is designed for speech sound reinforcement in rooms with high architectural requirements. It is ideally suited for churches, conference rooms, schools, or other facilities where a discreet yet powerful speaker solution is needed. The slim design minimises visual obstructions, while the sound quality ensures clear speech intelligibility.
Functions and Equipment in Detail
The column features four built-in speakers with a diameter of 70 mm, ensuring even sound distribution. An integrated transformer allows adaptation to various operating voltages (100 V, 70 V, 25 V) and provides power taps of 12 W, 6 W, 3 W, and 1.5 W. The impedance selector switch on the rear enables simple power adjustment, allowing flexible integration into existing 100-V networks.
Technology Explained Simply
The rated power is 12 W (program power), with a maximum power (Pmax) of 18 W. The sound pressure level at 1 W/1 m is 92 dB, indicating good reproduction quality. At maximum power, the column reaches a sound pressure level of 103 dB/1 m. The frequency range of 100 Hz to 15,000 Hz (±10 dB) covers the relevant range for speech and music reproduction. The combination of speaker units and transformer ensures clear, distortion-free reproduction.
Compatibility and Accessories
The CS-212 is designed for use in 100-V networks but can also be connected to 70-V or 25-V systems. The power taps (12/6/3/1.5 W) allow flexible adaptation to different room sizes and requirements. The column is intended for wall or ceiling mounting, with mounting components included in the delivery scope.

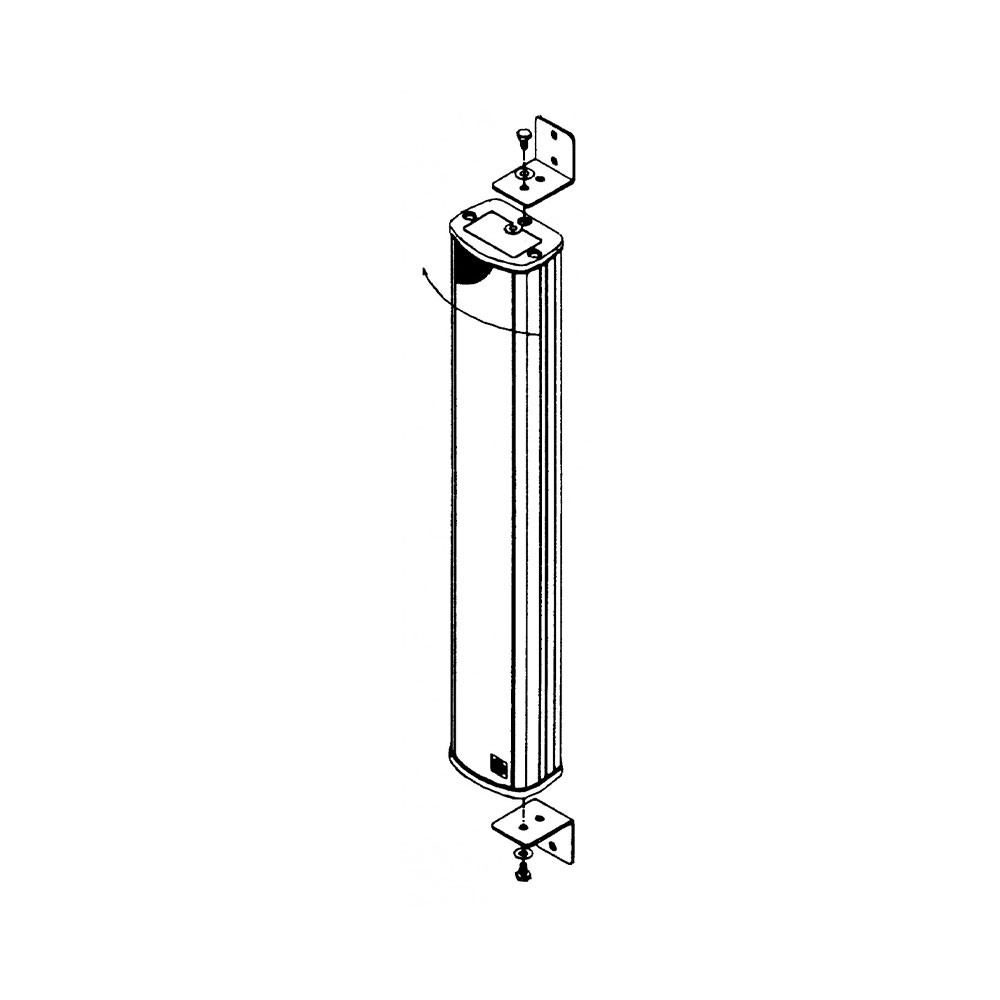

Installation and Mounting

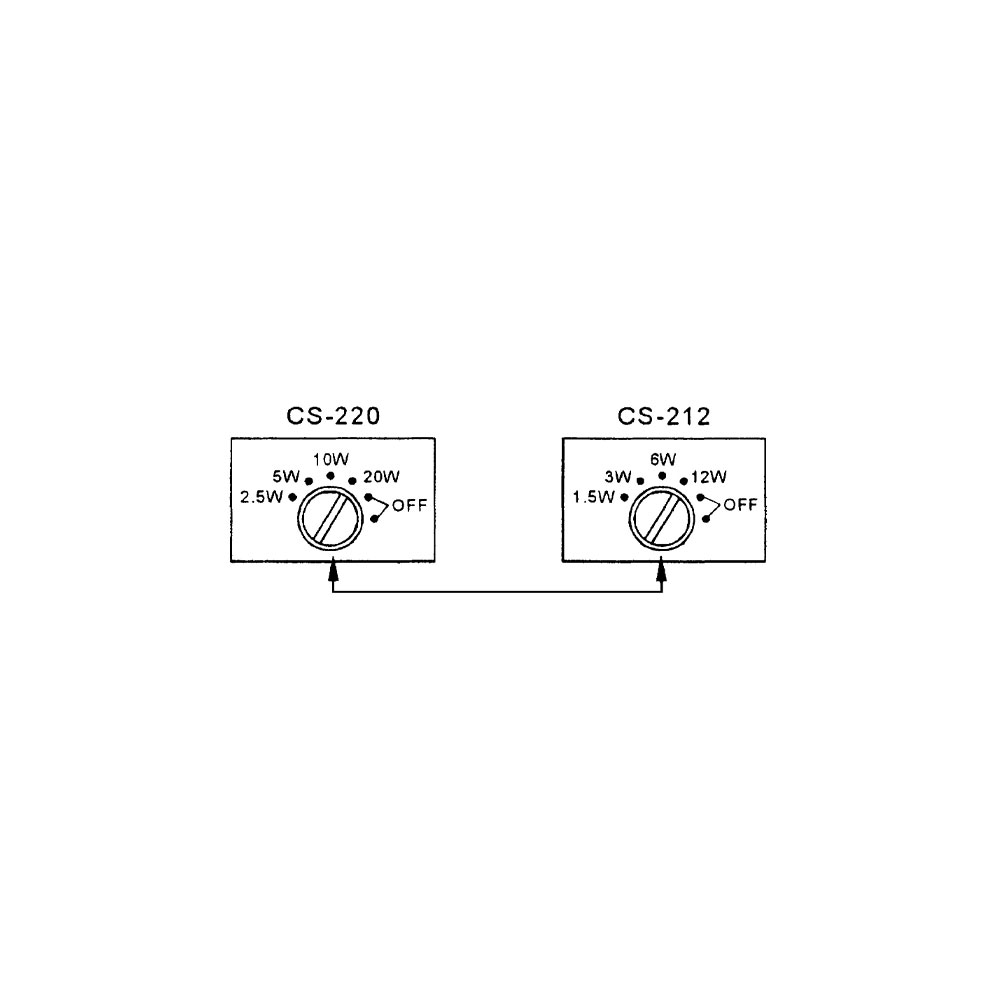

Installation is carried out using the included mounting accessories, which enable secure fastening to walls or ceilings. The rear of the column features an impedance selector switch, allowing power adjustment on-site. The connection cables are intended for connection to the 100-V network.
Operational Advantages
The CS-212 offers an excellent combination of aesthetic design and technical performance. The slim form ensures discreet integration into the room, while the speaker chassis and transformer ensure clear speech transmission. The simple power adjustment via the impedance selector switch simplifies installation and operation in existing sound reinforcement systems. The robust construction from aluminium and plastic ensures long service life under normal indoor conditions.
| Technical data | |
| Dimensions (W x H x D) | 405 x 106 x 75 mm |
| Rated load capacity (program) | 12 W (18 W) |
| Sound pressure level (SPL) 1 W/1 m | 92 dB |
| Frequency range (±10dB) | 100 - 15.000 Hz |
| Sound pressure level (SPL) Pmax/1 m | 103 dB |
| Speaker | 4 pcs Ø 70 mm (built-in) |
| Colour | White, similar to RAL 9010 |
| Shape | Angular |
| Adjustments at 100 V | 12/6/3/1,5 W |
