RCS Audio-Systems CPA-5480C, small central unit, 480 W, 3 U

Your rating:
Average rating
product review for RCS Audio-Systems CPA-5480C, small central unit, 480 W, 3 U
( 4.5 / 5 ) 108 ratings

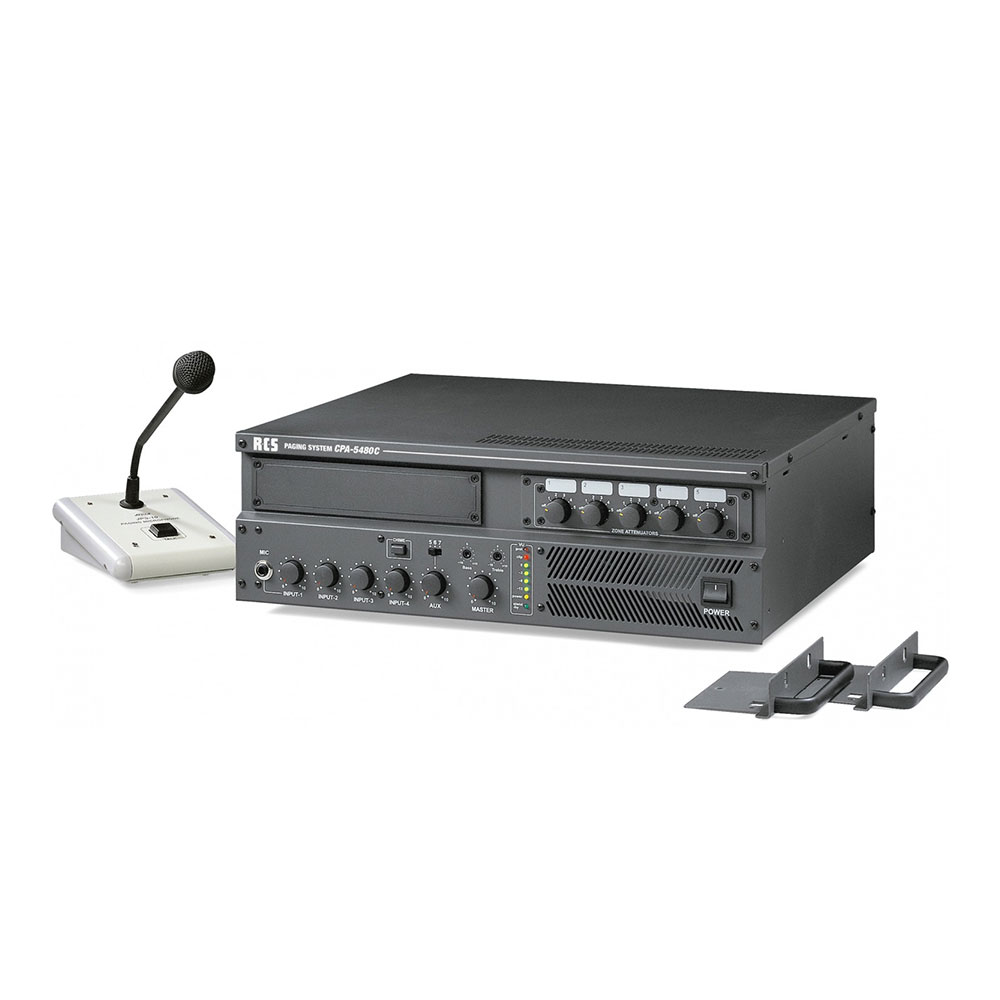

RCS Audio-Systems CPA-5480C
This image may differ from the desired article.
RCS Audio-Systems CPA-5480CRCS Audio-Systems CPA-5480C
1.159,00 EUR
( 1.379,21 EUR incl. VAT )
≈ £968.92  |  ≈ $1,280.70
plus delivery charges: 100,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems CPA-5480C, small central unit, 480 W, 3 U
Datasheet:file_download Download
Lieske Part No.:469789
Mfg Part No: CPA-5480C
UPC/EAN: 4250458291710
Weight:10 kg
Graduated prices net
From piecesPrice per pieces
21.080,77 EUR
41.002,54 EUR
6924,30 EUR
8846,07 EUR

Product information for RCS Audio-Systems CPA-5480C:

The CPA-5480C from RCS Audio-Systems is a modular small central unit of the CPA-5000 series, designed for professional sound systems with high requirements for speech intelligibility, operational reliability, and system expandability. With an output power of 480 W RMS, it is suitable for medium to large sound zones and offers five individually switchable and adjustable speaker circuits. The amplifier outputs support both high-voltage technology (100 V and 70 V) and low-impedance 8-Ohm systems, enabling flexible integration into existing installations. The device can be operated either with mains power (230 V AC, 50–60 Hz) or via a 24 V DC backup power supply, making it particularly suitable for safety-critical applications such as emergency warning systems. The installation width is 3 HE, and the device dimensions are 430 mm (W) × 133 mm (H) × 352 mm (D). The CPA-5480C is designed for mounting in 48,3 cm ( 19 inch ) racks.

Applications
This small central unit is designed for professional sound systems, particularly in areas where reliable and prioritized speech transmission is required, such as in administrative buildings, schools, hospitals, industrial facilities, or public transport installations. Integrated functions such as voice-activated priority switching, contact-controlled priorities, and remotely operable gong and siren functions support its use in emergency situations. The option to install audio carrier modules extends functionality for background music or automated announcements.

Functions and Equipment in Detail
The CPA-5480C features seven inputs: four Mic/Line inputs (Input 1–4) and three AUX inputs (Input 5–7). The microphone inputs are balanced and equipped with switchable phantom power. Input 1 has a voice-activated priority function, while inputs 2 to 4 feature contact-controlled priority functions that take precedence over AUX inputs. The AUX inputs are unbalanced and intended for background music or playback devices. Input sensitivity is -50 dB (2.45 mV) at 2 kOhm impedance for microphone inputs, and -10 dB (245 mV) at 2 kOhm (balanced) or 5 kOhm (unbalanced) for line inputs. The AMP-IN and PRE-OUT connections allow for inserting equalizers or cascading with additional amplifiers. The audio carrier module socket (Pack Unit) is designed for -10 dB (245 mV) at 10 kOhm.

Technology Explained Simply
The output power of 480 W RMS ensures sufficient volume for larger rooms or multiple zones. The frequency response is -3 dB between 200 Hz and 19 kHz for microphone inputs and between 35 Hz and 19 kHz for line inputs, enabling clear speech transmission and a balanced tonal range. The total harmonic distortion is less than 0.5 %, indicating high signal purity. Signal-to-noise ratios exceed 70 dB for microphone inputs and 80 dB for line inputs, ensuring good separation from background noise. Tone control includes a bass control (±10 dB at 100 Hz) and a treble control (±10 dB at 10 kHz), both accessible on the front panel. Power supply is via 230 V AC or 24 V DC, with a maximum current consumption of 7.5 A.

Compatibility and Accessories
The CPA-5480C includes a blank slot for integrating an audio carrier module, which can be used for additional functions such as music playback or automated announcements. The optional desktop intercom station MS-050P can be connected via a 4-pin screw connector and supports the functions of pre-gong and priority control. Up to three MS-050P intercom stations can be connected. The gong and siren functions are remotely operable and adjustable in volume at the rear of the device.

Mounting and Installation
The device is designed for mounting in 48,3 cm ( 19 inch ) racks and includes the necessary mounting brackets. Operation is performed via the front panel, where the five speaker circuits are individually switchable and adjustable. The rear panel provides all necessary connections, including inputs for microphones, AUX, AMP-IN, PRE-OUT, power supply (230 V AC and 24 V DC), and speaker outputs (100 V, 70 V, 8 Ohm). Connections are clearly labeled and designed for professional installations.

Operational Advantages
The CPA-5480C offers high operational reliability through the ability to switch between mains and backup power supply. The priority logic ensures that important announcements (e.g., emergency calls) always take precedence over background music or other inputs. The modular design allows for functional expansion via audio carrier modules. The clear front panel operation and remote control of gong and siren functions facilitate use in emergency situations. High signal purity and low distortion ensure high-quality speech transmission.

Technical data
AMP-IN inputsAMP IN: 0dB (775mV) 10 k Ohm, unbalanced
Inputs media player modulePack Unit: -10dB (245mV) 10 k Ohm, unbalanced
Signal-to-noise ratioMic: > 70 dB Line: > 80 dB
Height units3 HE
Inputs PRE OUTPRE OUT: 0dB (775mV) 100 Ohm, unbalanced
MIC inputsInput 1 Mic : -50dB (2.45mV) / 2 k Ohm, balanced
Inputs MIC/LINEInput 2-4 Mic: -50dB (2.45mV) / 2 k Ohm, symmetrical; Line -10dB (245mV), symmetrical
AUX inputsInput 5-7 AUX: -10dB (245mV) / 5 k Ohm, unbalanced
Height and depth adjustersBass: ±10dB at 100Hz, Treble: ±10dB at 10 kHz
Dimensions (W x H x D)430 x 133 x 352 mm; 3 HE
Power consumptionmax. 7.5 A
Output power480 W (RMS)
Frequency rangeMic: -3dB (200Hz ~ 19 kHz) Line: -3dB (35Hz ~ 19 kHz)
Total harmonic distortionless than 0.5%
Power supply230 V AC (50-60Hz) mains power and 24 V DC
Outputs, speakers70 V or 100 V and low-ohmic 8 Ohm
19" rack mountingJa


Please note...
If you pay by prepayment or on account, we will ship this article for free within Germany ! Note that although the delivery charges will be shown to you in the shopping cart, we won't charge them.
Product data sheet
Datasheet for RCS Audio-Systems CPA-5480C, EAN: 4250458291710

Questions & answers

What is the delivery time of RCS Audio-Systems CPA-5480C, small central unit, 480 W, 3 U?

The article RCS Audio-Systems CPA-5480C, small central unit, 480 W, 3 U is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems CPA-5480C to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems CPA-5480C, small central unit, 480 W, 3 U always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems CPA-5480C, small central unit, 480 W, 3 U if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of RCS Audio-Systems CPA-5480C, small central unit, 480 W, 3 U we can offer you a price of 1.080,77 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
