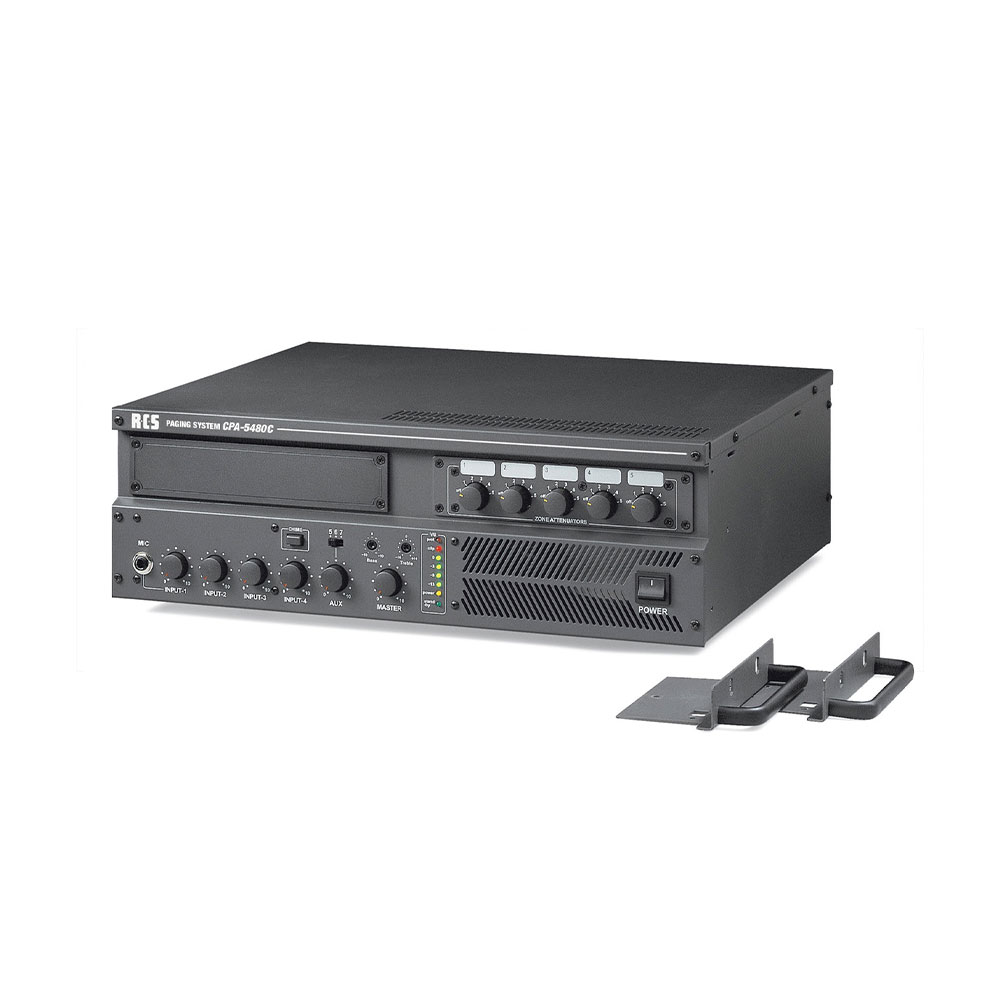

RCS Audio-Systems CPA-5120C, small central unit, 120 W, 3 U
|
807,50 EUR |
|||||||||||
|
( 960,93 EUR incl. VAT ) ≈ £675.07 | ≈ $892.29 plus delivery charges: 100,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 120044 | ||||||||||
| Mfg Part No: | CPA-5120C | ||||||||||
| UPC/EAN: | 4250458211510 | ||||||||||
| Weight: | 10 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems CPA-5120C:
Applications
The CPA-5120C is intended for use in professional voice alarm systems (ELA), where reliable and targeted communication is required in emergency situations. It is suitable for buildings with multiple zones, where different areas need to be addressed independently. The integrated priority functions enable orderly signal transmission, with critical messages such as emergency calls or alarms taking precedence over normal announcements. Remote control of signal tones such as two-tone gong and siren supports alerting in various situations.
Functions and Equipment in Detail
The central unit features five symmetrical microphone inputs, with input 1 equipped with an electronic priority circuit that operates voice-activated. Inputs 2 to 4 can be switched between microphone and line input, with the line inputs having a level of -10 dB (245 mV). Additionally, three AUX inputs (inputs 5–7) are available for external media sources such as CD players or MP3 players. Inputs 5–7 are asymmetrical and have an impedance of 5 kOhm. A special input for media modules (Pack Unit) allows integration of additional devices such as media players or tuners.
Technology Explained Simply
The CPA-5120C provides a clear separation between the different input channels and enables targeted control of signal priority. The voice-activated priority circuit at input 1 ensures that a microphone, once activated, automatically takes precedence over other inputs. The contact-activated priorities at inputs 2–4 allow integration of external switches or sensors that can be assigned higher priority when needed. Remote control of signal tones (two-tone gong and siren) is achieved via contacts on the rear, enabling integration into existing security systems. Bass and treble adjustment (±10 dB at 100 Hz and 10 kHz respectively) allows application-specific tone tuning.
Compatibility and Accessories
The CPA-5120C is compatible with the microphone desk station MS-050P, which connects via a 4-pole screw connector. Up to three such stations can be connected to the central unit, enabling decentralized operation in different areas of a building. The stations can also activate the pre-alarm and priority functions. Additionally, the central unit is equipped with AMP-IN and PRE-OUT sockets, enabling cascading with additional amplifiers or inserting devices such as equalizers.
Mounting and Installation
The central unit is designed for 48,3 cm ( 19 inch ) rack mounting and is supplied with mounting brackets that allow secure installation in the rack. Power supply is via 230 V AC (50–60 Hz) or 24 V DC, enabling backup power operation. The maximum power consumption is 1.8 A. Dimensions are 430 mm (W) × 133 mm (H) × 352 mm (D), corresponding to the standard size for 3 U. The front panel features controls for volume adjustment of the five zones, tone adjustment, and display of operational status.
Operational Advantages
The CPA-5120C offers high signal quality with a distortion factor of less than 0.5 % and a signal-to-noise ratio of over 70 dB (microphone) or 80 dB (line). The frequency range extends from 200 Hz to 19 kHz (microphone) or 35 Hz to 19 kHz (line), ensuring clear and intelligible voice transmission. Remote control of signal tones and the ability to integrate media modules increase the system's flexibility. The combination of 100 V/70 V and 8-ohm outputs enables driving various speaker configurations, making the central unit suitable for different application scenarios. Integration of up to three MS-050P stations extends functionality and enables decentralized control of the sound system.
| Technical data | |
| Output power | 120 W (RMS) |
| Dimensions (W x H x D) | 430 x 133 x 352 mm; 3 HE |
| Inputs MIC/LINE | Input 2-4 Mic: -50dB (2.45mV) / 2 k Ohm, symmetrical; Line -10dB (245mV), symmetrical |
| Height units | 3 HE |
| Power consumption | max. 1.8 A |
| Height and depth adjusters | Bass: ±10dB at 100Hz, Treble: ±10dB at 10 kHz |
| Total harmonic distortion | less than 0.5% |
| Outputs, speakers | 70 V or 100 V and low-ohmic 8 Ohm |
| Frequency range | Mic: -3dB (200Hz ~ 19 kHz) Line: -3dB (35Hz ~ 19 kHz) |
| Signal-to-noise ratio | Mic: > 70 dB Line: > 80 dB |
| MIC inputs | Input 1 Mic : -50dB (2.45mV) / 2 k Ohm, balanced |
| Power supply | 230 V AC (50-60Hz) mains power and 24 V DC |
| Inputs PRE OUT | PRE OUT: 0dB (775mV) 100 Ohm, unbalanced |
| AMP-IN inputs | AMP IN: 0dB (775mV) 10 k Ohm, unbalanced |
| Inputs media player module | Pack Unit: -10dB (245mV) 10 k Ohm, unbalanced |
| AUX inputs | Input 5-7 AUX: -10dB (245mV) / 5 k Ohm, unbalanced |
| 19" rack mounting | |
Questions & answers
What is the delivery time of RCS Audio-Systems CPA-5120C, small central unit, 120 W, 3 U?
The article RCS Audio-Systems CPA-5120C, small central unit, 120 W, 3 U is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems CPA-5120C to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you RCS Audio-Systems CPA-5120C, small central unit, 120 W, 3 U always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems CPA-5120C, small central unit, 120 W, 3 U if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of RCS Audio-Systems CPA-5120C, small central unit, 120 W, 3 U we can offer you a price of 752,99 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
