RCS Audio-Systems BA-4240DP 4-channel power amplifier (4x240W sine, 3 U), prepared for FD-20 content_copy

The RCS Audio-Systems BA-4240DP is a 4-channel power amplifier in 19˝ format, specifically designed for use in professional ELA systems (Electronic Loudspeaker Systems). It supports common high-voltage technologies with 100 V-, 50 V- and 25 V-systems and is designed for continuous operation in critical applications. The devices are fully monitored and feature fault alarm contacts for all functions relevant in emergency situations, making them suitable for safety-critical installations such as emergency call or alarm transmission systems.

Applications

The amplifier is suitable for professional sound systems in buildings, industrial facilities, transportation infrastructure or public institutions, where reliable and continuous audio transmission is required. The support for 100 V technology enables efficient power transmission over long distances with minimal losses, which is typical for large rooms or building complexes. The integrated monitoring and the ability to control the amplifier via external signals make it particularly suitable for systems with high requirements for availability and safety.

Functions and Equipment in Detail

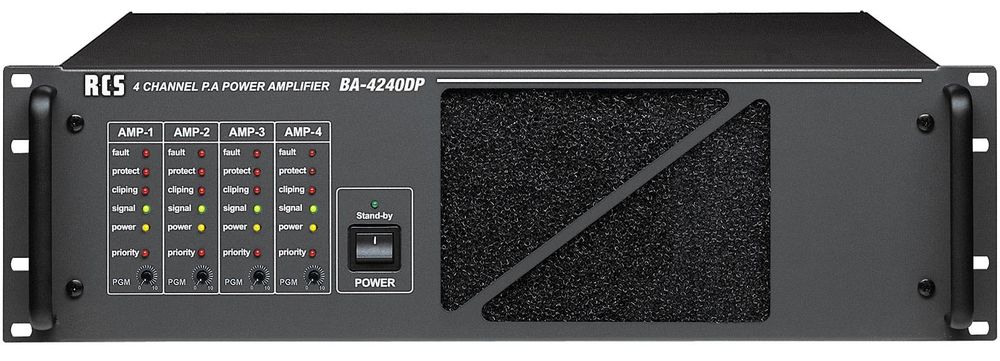

The BA-4240DP features four electronically balanced audio inputs for program and music signals, as well as four additional inputs with priority function, which can be used for mandatory announcements or emergency calls. This priority function ensures that important messages are transmitted even when other channels are active. The devices are designed for mounting in 19˝ racks and have a height of 3 HE. The inputs and outputs are implemented using screw terminals, which reduces wiring effort and eliminates the need for XLR connectors. The electronic balancing of inputs and outputs minimizes hum interference caused by ground loops.

Technology Explained Simply

The amplifiers are manufactured with high-quality components such as toroidal transformers, ensuring stable and low-noise signal transmission. The devices are absolutely short-circuit and no-load safe, meaning they will not be damaged even under faulty conditions such as a short circuit in the speaker circuit or no-load (no speaker connected). A soft-start circuit ensures that no unpleasant noises occur when switching on. The LED indicator lights on the front panel, in various colors, provide information about the operating status and possible fault conditions, such as overload or power failure. A Ground/Lift switch allows separation between chassis ground and signal ground to avoid hum loops.

Compatibility and Accessories

The amplifier can be equipped with up to four pilot tone modules (FD-20) for monitoring the amplifier’s function. These modules enable continuous channel testing and signal fault conditions via the fault alarm contacts. The amplifiers are designed for integration into larger systems and can be switched on externally via a Power Remote contact, even if the local on/off switch is turned off. This is particularly useful in systems operated via central control or a BMS (Building Management System).

Mounting and Installation

The BA-4240DP is designed as a 19˝ rack unit and can be mounted in standard racks. The screw terminals for inputs and outputs simplify installation and reduce the number of required connectors. The devices are designed for continuous operation and require no special mounting conditions, except for ensuring the specified cooling and air circulation within the rack.

Advantages in Operation

The combination of high-voltage technology, electronic balancing, integrated monitoring, and the ability to control externally makes the BA-4240DP a robust and reliable component in professional sound systems. The LED indicators enable quick diagnosis of operating conditions, and the fault alarm contacts ensure rapid response to errors. The use of toroidal transformers and protection against short-circuit and no-load conditions increase the device’s lifespan and operational safety.

General
Number of channels	4 channels
Power per channel	240 W sinus
Construction type	19˝-rack device HE
Height	3 HE
Technology	100 V-, 50 V-, 25 V-technology -
Inputs	4 electronically balanced program inputs + 4 priority inputs -
Monitoring	fully monitored with fault alarm contacts -
Control	Power Remote contact -
Balancing	Electronically symmetrized inputs and outputs -
Hum reduction	Ground/Lift switch for separating chassis ground/signal ground -
Accessory compatibility	up to 4 Pilotton modules (FD-20) -
Operational safety	Short-circuit and no-load protected -
Manufacturing quality	High-quality components, e.g. toroidal transformers -

---
