RCS Audio-Systems AM-100 BT BT player, for ME-1A

Your rating:
Average rating
product review for RCS Audio-Systems AM-100 BT BT player, for ME-1A
( 4 / 5 ) 1 ratings

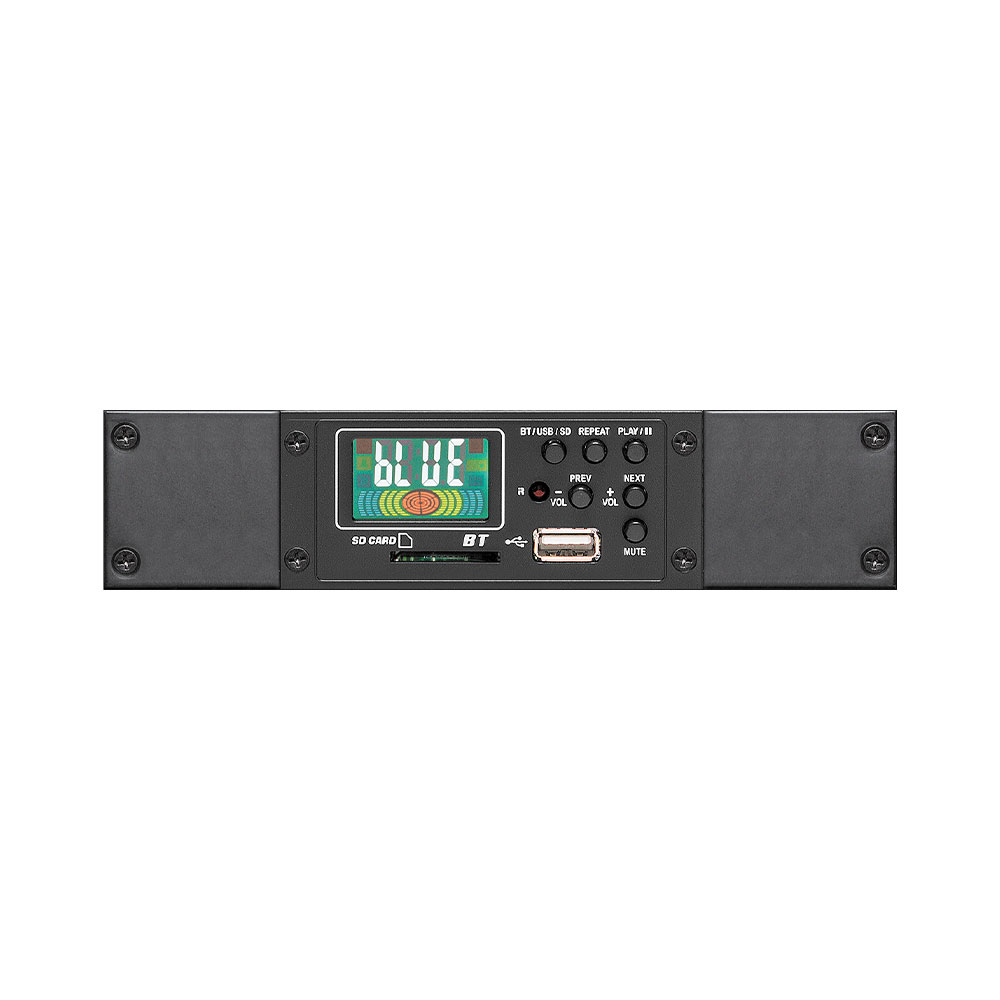

RCS Audio-Systems AM-100 BT
This image may differ from the desired article.
RCS Audio-Systems AM-100 BTRCS Audio-Systems AM-100 BTRCS Audio-Systems AM-100 BT
223,25 EUR
( 265,67 EUR incl. VAT )
≈ £185.97  |  ≈ $244.91
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems AM-100 BT BT player, for ME-1A
Lieske Part No.:1927530
Mfg Part No: AM-100 BT
UPC/EAN: 4250458200347
Weight:0.123 kg
Graduated prices net
From piecesPrice per pieces
5208,18 EUR
10193,11 EUR
15178,04 EUR
20162,97 EUR

Product information for RCS Audio-Systems AM-100 BT:

The AM-100 BT from RCS Audio-Systems is a compact built-in module for professional audio and control systems, specifically designed for installation in empty slots of small central units or module carriers. It serves as a multimedia player with integrated Bluetooth functionality as well as support for USB and SD card playback. The module enables direct audio transmission from smartphones, tablets, or PCs via Bluetooth and simultaneously offers the option to play audio files from external storage media such as USB sticks, SD cards, or USB hard drives. Control is performed via an integrated graphical LCD display and a supplied IR remote control, making functions such as play, pause, track selection, or mode switching easy to operate. The display clearly shows information such as playback time, track number, volume, and current operating mode.

Applications

The module is designed for use in professional installations, particularly in small central units that feature standardized module sizes. It is suitable for applications in buildings with integrated audio and communication systems, such as office buildings, schools, hospitals, or facilities with central loudspeaker systems. The direct power supply via the small central unit (12 V DC) and the low power consumption of 40 mA make it especially suitable for permanent installations, as it does not require additional power supply and places minimal load on the system.

Functions and Equipment in Detail

The AM-100 BT features a USB 2.0 port, an SD card slot, and supports Bluetooth connectivity according to version 3.0. Audio file playback is independent of the source—whether via Bluetooth connection, USB storage, or SD card. The integrated control via the LCD display and remote control enables intuitive operation, with the display supporting menu navigation and time display. The remote control is included in the delivery and allows operation from a distance.

Technology Explained Simply

Bluetooth technology (BT 3.0) enables wireless transmission of audio signals between the module and compatible end devices such as smartphones or tablets. The USB and SD card interfaces allow direct playback of files stored on these storage media. Power supply is via the 12 V DC interface of the small central unit, enabling the module to be integrated into existing systems without additional power supply. The power consumption of 40 mA is low and contributes to energy efficiency.

Compatibility and Accessories

The module is specifically designed for installation in empty slots of small central units or module carriers. The standardized module size facilitates integration into existing systems. It is compatible with Bluetooth-enabled end devices, USB storage devices (sticks, hard drives), and SD cards. The use of external USB hard drives is also supported. The remote control is included in the delivery and is used for remote control of the module.

Installation and Mounting

Mounting is performed in empty slots of small central units or module carriers. The module includes connection and mounting accessories, which are included in the delivery, to ensure secure and stable installation. Installation requires no additional power supply, as the module is directly powered via the 12 V DC interface of the small central unit. The user manual, also included in the delivery, supports setup and operation.

Operational Advantages

The AM-100 BT offers a compact, energy-efficient solution for integrating multimedia functions into existing audio systems. The combination of Bluetooth streaming and USB/SD playback in a single device reduces the number of required components. The remote control and LCD display ensure user-friendly operation. Direct power supply via the small central unit and low power consumption make the module especially suitable for permanent and low-maintenance installations. The standardized module size facilitates integration into various systems.

Delivery Contents

Included in the delivery: 1× AM-100 BT player module, 1× remote control, connection and mounting accessories, and the user manual. The listed components are required for installation and operation of the module.

Dimensions

The module dimensions are 190 mm (width) × 45 mm (height) × 185 mm (depth). These dimensions correspond to the standardized module size for installation in small central units and module carriers. The precise specification of dimensions enables accurate planning of mounting and integration into existing systems.

Technical data
Dimensions (W x H x D)190 x 45 x 185 mm
ConnectionsUSB 2.0, SD-Card slot, BT 3.0


Questions & answers

What is the delivery time of RCS Audio-Systems AM-100 BT BT player, for ME-1A?

The article RCS Audio-Systems AM-100 BT BT player, for ME-1A is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems AM-100 BT to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems AM-100 BT BT player, for ME-1A always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems AM-100 BT BT player, for ME-1A if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of RCS Audio-Systems AM-100 BT BT player, for ME-1A we can offer you a price of 208,18 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
