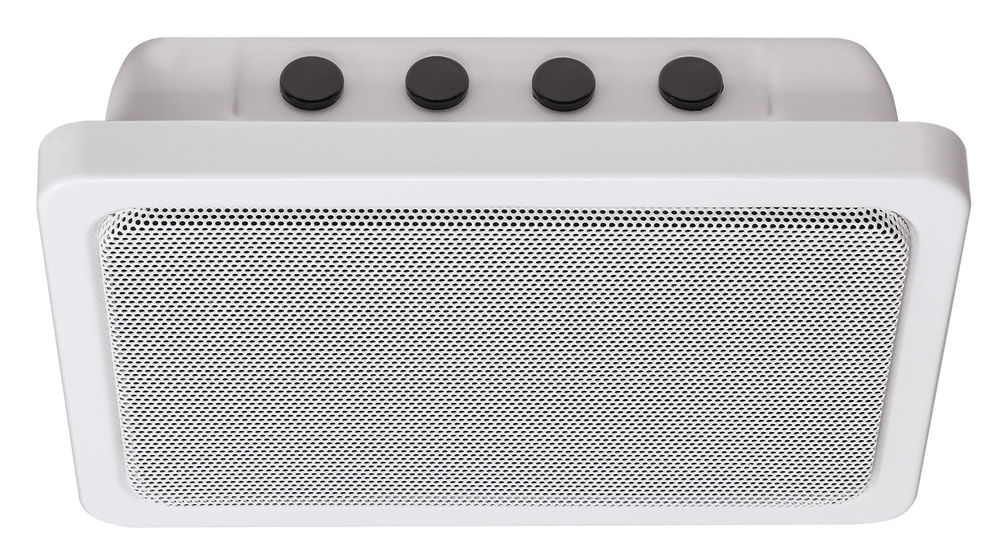

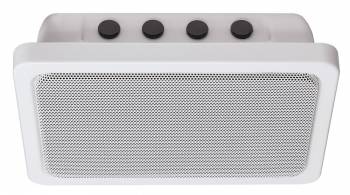

RCS Audio-Systems ABT-W6 AB EN 54-24 alarm built-in loudspeaker, 2x 6 W, 100 V, white, all-metal
|
91,20 EUR |
|||||||||||
|
( 108,53 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1927527 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ABT-W6 AB | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems ABT-W6 AB:
With two integrated 5-inch full-range drivers, the unit is ideal for long corridors, passageways, or large open spaces where two acoustically independent zones must be served—such as redundant voice message systems. Each channel can be independently operated and tapped in a 100 V installation.
The rugged powder-coated metal housing ensures resonance-free performance and supports both surface and flush mounting. The speaker’s neutral and modern appearance is highly rated by architects and planners.
Technical Specifications:
- Model: ABT-W6 AB
- Certification: EN 54-24:2008, BS 5839
- Rated / Program Power: 2 × 6 W / 2 × 15 W
- Power Taps (100 V): 2 × 6 / 3 / 1.5 / 0.75 W
- Frequency Range (±10 dB): 150 – 20,000 Hz
- Sound Pressure Level:
- 1 W / 4 m: 84 dB
- Max SPL / 4 m: 91 dB
- Dispersion at 1 kHz: 165°
- Speaker Drivers: 2 × 5˝ full-range, 8 Ohms
- Cutout Dimensions (W×H) / Installation Depth: 235 × 155 mm / 55 mm
- External Dimensions (W×H×D): 180 × 260 × 80 mm
- Weight: 2.8 kg
- Color: White (RAL 9003)
- Mounting Options: Surface and flush-mounted
Scope of Delivery:
- 1× ABT-W6 AB dual loudspeaker
- Mounting and connection accessories
- Certification documents
- User manual
Key Features:
- Dual speaker configuration for separate alarm zones
- Certified to EN 54-24 – ideal for VAS and EVAC systems
- Robust, low-resonance powder-coated metal housing
- Suitable for both surface and flush installation
- Architecturally discreet design in RAL 9003 white
Questions & answers
What is the delivery time of RCS Audio-Systems ABT-W6 AB EN 54-24 alarm built-in loudspeaker, 2x 6 W, 100 V, white, all-metal?
The article RCS Audio-Systems ABT-W6 AB EN 54-24 alarm built-in loudspeaker, 2x 6 W, 100 V, white, all-metal is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems ABT-W6 AB to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you RCS Audio-Systems ABT-W6 AB EN 54-24 alarm built-in loudspeaker, 2x 6 W, 100 V, white, all-metal always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems ABT-W6 AB EN 54-24 alarm built-in loudspeaker, 2x 6 W, 100 V, white, all-metal if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of RCS Audio-Systems ABT-W6 AB EN 54-24 alarm built-in loudspeaker, 2x 6 W, 100 V, white, all-metal we can offer you a price of 85,73 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of RCS Audio-Systems ABT-W6 AB EN 54-24 alarm built-in loudspeaker, 2x 6 W, 100 V, white, all-metal via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
