RCS Audio-Systems AAS-200 A Amok alarm system (GSM/GPS)

Your rating:
Average rating
product review for RCS Audio-Systems AAS-200 A Amok alarm system (GSM/GPS)
( 5 / 5 ) 1 ratings

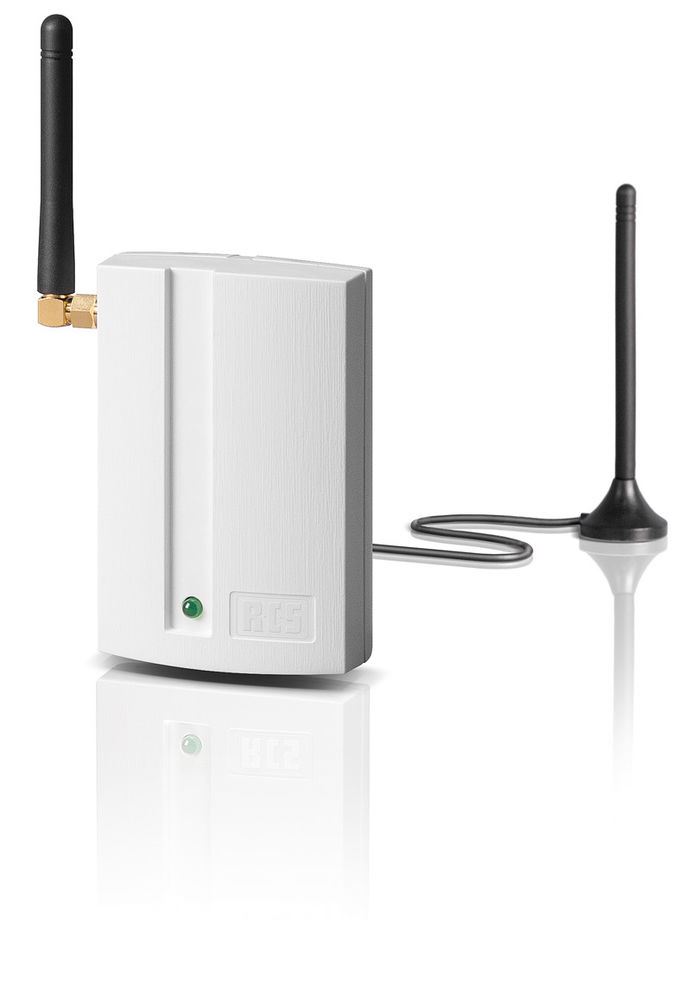

RCS Audio-Systems AAS-200 A
This image may differ from the desired article.
RCS Audio-Systems AAS-200 ARCS Audio-Systems AAS-200 A
470,25 EUR
( 559,60 EUR incl. VAT )
≈ £391.72  |  ≈ $515.86
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems AAS-200 A Amok alarm system (GSM/GPS)
Datasheet:file_download Download
Lieske Part No.:1927525
Mfg Part No: AAS-200 A
UPC/EAN: 4250458205878
Weight:0.2 kg
Graduated prices net
From piecesPrice per pieces
4438,51 EUR
8406,77 EUR
12375,02 EUR
16343,28 EUR

Product information for RCS Audio-Systems AAS-200 A:

The AAS-200 A from RCS Audio-Systems is an amok alarm system for mobile alarm triggering via mobile phone, specifically designed for schools, public institutions, and security-critical areas. It enables authorized persons to trigger an emergency call by making a simple call from an authorized mobile phone, without requiring a fixed network connection. The device integrates into existing voice alarm systems (SAA) and automatically activates loudspeaker announcements or acoustic signals via potential-free relay outputs. Alarm triggering occurs via GSM mobile network, with the caller's phone number serving as authentication for alarm activation.

Applications
This system is intended for use in educational institutions, administrative offices, hospitals, and other facilities with high security requirements. It enables rapid and contactless alarm triggering in case of dangerous situations such as amok attacks, fire alarms, or other emergencies. Integration into existing SAA systems allows for coordinated response, with alarm triggering via potential-free contacts. The operation is straightforward: an authorized person dials a stored emergency number, the device verifies the number, and if authorized, activates a contact that, for example, triggers an automatic announcement via the loudspeaker system.

Functions and Equipment in Detail
The AAS-200 A supports up to 256 authorized telephone numbers, which can be uniquely assigned to different alarm scenarios. This allows differentiation between various alarm types, such as amok or fire alarms. Configuration is performed via PC software (Windows, USB connection), via SMS, or directly through a phone call. Programming is thus flexible and adaptable to specific requirements. The alarm inputs and relay outputs are potential-free, enabling easy integration into existing security systems.

Technology Explained Simply
The device operates via GSM technology (CTR 31, CTR 32) and does not require a fixed network connection. The operating voltage is 12 V DC with a current consumption of 1 A. The operating temperature range is from 0 °C to +40 °C, enabling use in indoor environments under normal ambient conditions. The housing is designed for wall mounting and complies with protection class IP20 according to DIN EN 60529, providing protection against finger contact and solid foreign objects, but not against water or dust. Dimensions are 96 mm (W) × 63 mm (H) × 28 mm (D), and the weight is approximately 200 g.

Compatibility and Accessories
The AAS-200 A is designed for integration into existing voice alarm systems (SAA). The potential-free relay outputs enable control of loudspeaker systems, signal tone generators, or other alarm components. In combination with an alarm selector device, the alarm can also be forwarded to a control room. Configuration is performed using the included PC software, connected via USB. The use of multiple AAS-200 A devices allows differentiation between various alarm types by storing different phone numbers in the contact list of authorized mobile phones.

Mounting and Installation
The device is designed for wall mounting and can be installed indoors. Installation should take place at a suitable location easily accessible to authorized personnel. Connection materials are included in the delivery, as is the operating manual. Installation does not require special tools; wiring is done via the potential-free inputs and outputs.

Operational Advantages
The AAS-200 A provides fast and reliable alarm triggering without dependency on fixed network connections. Mobile alarm triggering via authorized mobile phone numbers enables flexible use, even in buildings without direct fixed network access. Configuration via PC software, SMS, or phone call offers flexibility for setup and maintenance. Support for up to 256 authorized numbers and the ability to distinguish between different alarm types increases system efficiency and security. Integration into existing SAA systems reduces the need for additional hardware and enables coordinated response to alarms.

Delivery Contents
The device is delivered with PC configuration software (for Windows), connection materials, and operating manual. The software enables setup and configuration of the device via USB connection to a PC. Connection materials include the necessary cables and mounting components for wall installation. The operating manual contains information on installation, configuration, and maintenance of the system.

Technical data
Telephone connectionGSM (CTR 31, CTR 32)
ProgrammingPhone call, SMS, PC
Alarm inputs4 (dry contacts)
Operation temperature±0 to +40 °C
Housingfor wall mounting
Power supply12 V DC/ 1 A
Degree of protectionIP20 (according to DIN EN 60529)
Dimensions (W x H x D)96 x 63 x 28 mm
Relay outputs4 (dry contacts)


Product data sheet
Datasheet for RCS Audio-Systems AAS-200 A, EAN: 4250458205878
