RAK Wireless RAK815 Hybrid Location Tracker
RAK815-868
Overview
The WisTrio LPWAN Tracker (RAK815) is a wireless remote solution based on the Semtech SX1276 in conjunction with the NRF52832. It has LoRaWAN®, Bluetooth 5.0 and GPS on board a complete solution for tracking applications.
The possible application scenarios for which the RAK815 is suitable are further expanded by the addition of an acceleration sensor and a temperature and humidity sensor.

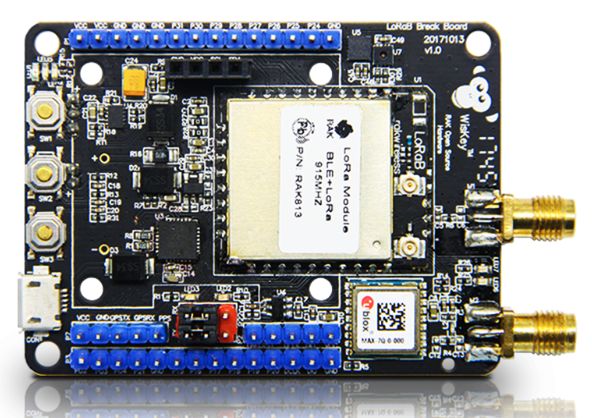

The board is in standard Arduino form factor, with access to the pin headers,
3 customizable buttons, 2 customizable LEDs, a battery connector, LCD interface (I2C). The programmable pin header is great for when the onboard sensors aren't enough and you want to add more quickly and easily.
The board is easy to control using AT commands. You can set up the device either via the micro USB port or via Bluetooth after pairing.
Full documentation for this product can be found on our website documentation page.
To use this product properly, make sure you purchase a compatible emulator kit. We recommend that you purchase directly from the SEGGER Microcontroller website to ensure you receive an original product.

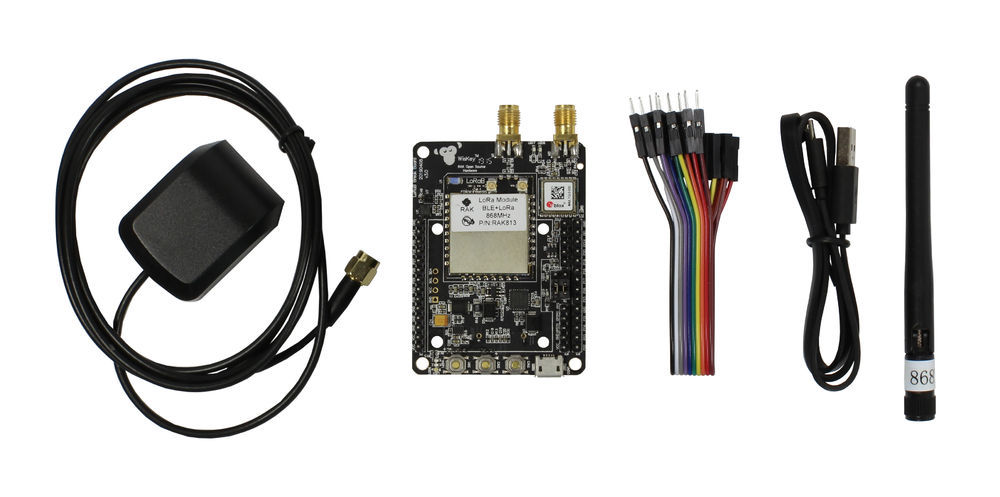

FeaturesSemtech SX1276 LoRaWAN"¢ Version V1.0.2 NRF52832 Bluetooth Version 5.0 U-Blox GPS Support for ABP and OTAA activation Dedicated battery port Micro USB interface for charging and configuration Operating temperature: -20ºC ~ 60ºC Scope of delivery 1 x RAK815 1 x MicroUSB 1 x GPS antenna 1 x LoRa® antenna 1 x rod antenna 10 x Dupont cables 5 x bridging caps battery connection cable
