Weather Station Monitoring
Sensor for Temperature, Humidity and Wind Speed
Overview

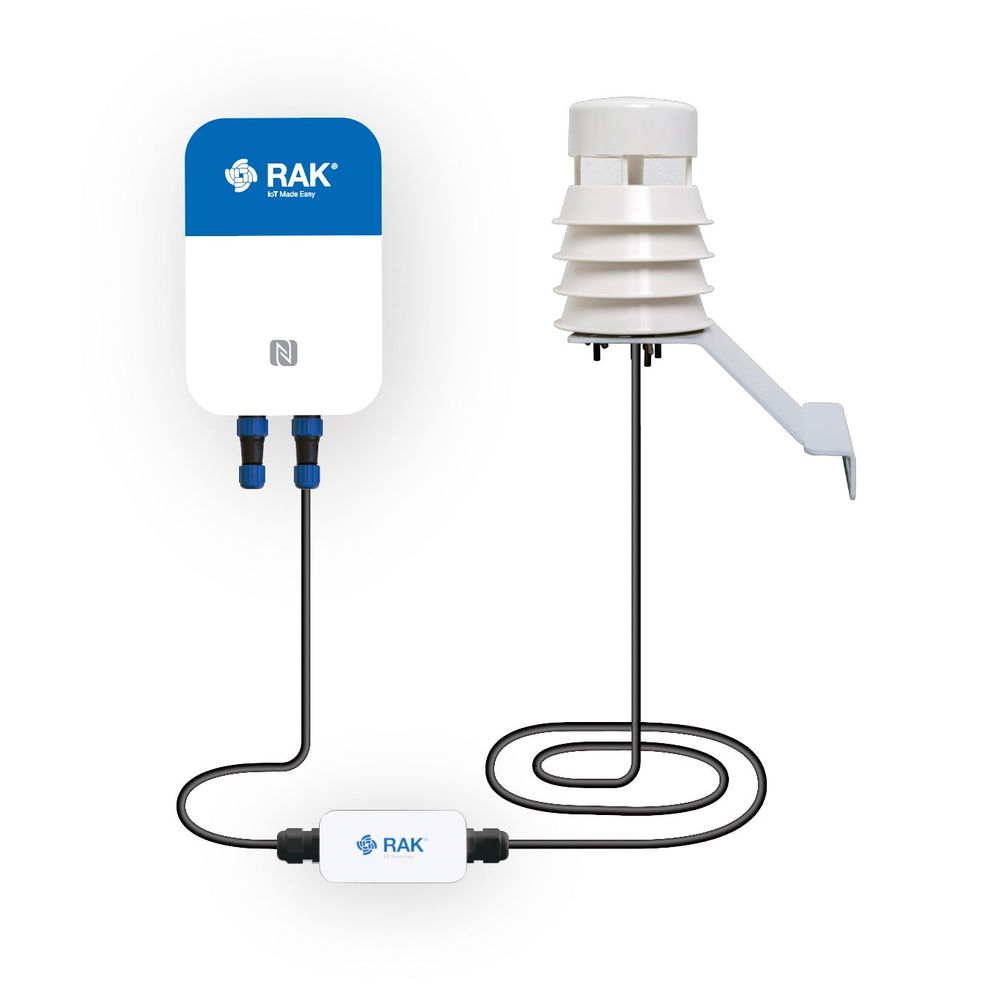

The Sensor Hub weather station allows you to monitor outdoor environmental parameters. It is suitable for smart cities, smart farms, smart agriculture, environmental monitoring and other use cases.
The weather station is equipped with high-precision sensors that measure wind speed and direction, air pressure, humidity and temperature.
The Sensor Hub weather station guarantees long-term metrological monitoring with its robust design.
The splitter cable can be used to connect multiple Sensor Probes and Probe IOs to a single Sensor Hub port. The extension cable can be used to increase the distance between Sensor Hub and probe/probe IO.
Note: Sensor Hub with Sensor Probe IO and sensor connected cannot be powered by batteries. You must only use the supplied power adapter.
The Sensor Hub has two variants based on the communication type - LoRaWAN only and LoRaWAN+NB IoT. The NB-IoT module of the SensorHub supports two types of LTE (Long-Term Evolution) categories, namely CAT M1 and CAT NB2. CAT M1 offers higher data rates and lower latency, while CAT NB2 offers ultra-low power consumption and wider coverage, making it an ideal choice for devices that run on batteries and require long-term connectivity.
FeaturesLoRaWAN/NB-IoT communication (NB optional) Precise parameter measurement Protection class IP65 External DC power supply (optional) Solar panel as power source (optional) Measure item Measurement type Range Resolution Accuracy Wind speed Ultrasonic 0-40m/s 0.01m/s ±0.5+2%FS Wind direction Ultrasonic 0-359º 1° ±3° Temperature MEMS -40-+100? 0.1? ±0.5? Humidity MEMS 0-100%RH 0.1%RH ±3% Air pressure MEMS 10-1100hPa 0.1hpa ±1.5hPa Scope of delivery1 x Sensor Hub 1 x Sensor Probe IO 1 x Micro Weather sensor 1 x Power supply for the Sensor Hub 1 x Mounting material for the Micro Weather sensor
