RAK Wireless · Accessories · Outdoor Antennas · GPS Antenna
|
35,86 EUR 36,47 EUR |
|
|
( 42,67 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 536946 |
|---|---|
| Mfg Part No: | 920039 |
| Weight: | 0.15 kg |
Product information for RAK Wireless 920039:
Overview

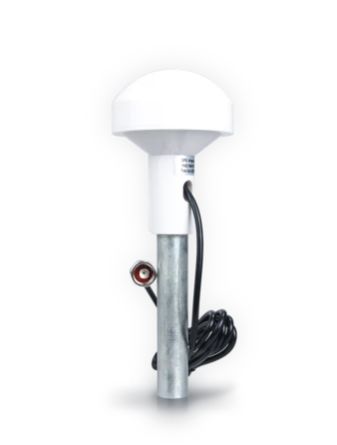

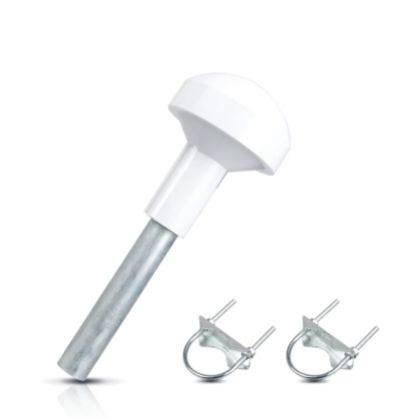

This GPS antenna is a high gain, high efficiency antenna equipped with anti-static lightning protection (LNA) function. It is often used in power base stations and supports the frequencies 1559 - 1577 MHz.
Technical dataFrequency: 1559 - 1557 MHz Gain: 28 ± 2dB typical gain Voltage: 3V ± 0.3V DC Current: = 10mA @ 3V Noise figure: 1.5dB max Bandwidth: 18MHz min Output VSWR: 3.0 max Polarization: Right-hand circularly polarized antenna ( RHCP) Filter: SAW filter 30dB min ± 45MHz Output impedance: 50O Connection: N-type connector Dimensions: Œ€ 96mm x 129mm Cable: 2m ± 50mm RG195 coaxial cable Operating temperature: -40°C to +85°C Storage temperature: -40° C to +90°C Humidity during operation/storage: 10% to 95% relative humidity
Questions & answers
What is the delivery time of RAK Wireless · Accessories · Outdoor Antennas · GPS Antenna?
The article RAK Wireless · Accessories · Outdoor Antennas · GPS Antenna is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RAK Wireless 920039 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you RAK Wireless · Accessories · Outdoor Antennas · GPS Antenna always at the best possible price. We can give you a discount of 2% on RAK Wireless · Accessories · Outdoor Antennas · GPS Antenna if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
