RAK Wireless · LoRa · WisGate · Developer Gateway · RAK7244P LoRaWAN? Gateway (with built-in PoE module)
|
-5% 250,66 EUR 263,86 EUR |
|
|
( 298,29 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1704083 |
|---|---|
| Mfg Part No: | 715054 |
| Weight: | 1 kg |
Product information for RAK Wireless 715054:
LoRaWAN™ Gateway (with built-in PoE module)
Overview

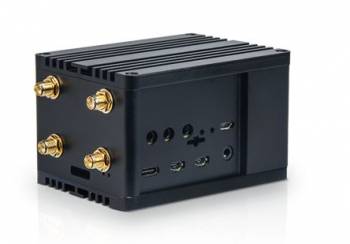

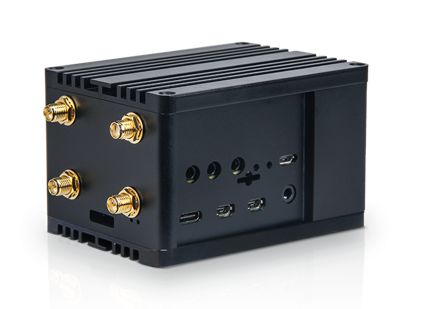

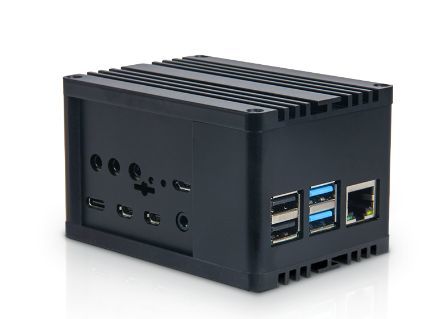

The WisGate Developer D4 (RAK7244) is a successor to the WisGate Developer D3 (RAK7243). This device consists of a Raspberry Pi 4, a RAK2245 Pi HAT that includes a GPS module and a heatsink for better performance and heat dissipation management, and an optional RAK2013 Cellular Pi HAT. Its housing is made entirely of aluminum.
The built-in RAK2245 Pi HAT uses Semtech's SX1301 RF front-end chip, which is a powerful LoRa® digital processing engine. It is capable of receiving up to 8 LoRa® packets simultaneously, sent with different spreading factors on different channels, and is available in multiple variants so that it can be used for all LoRa Alliance® frequency bands. This unique capability enables the implementation of innovative network architectures, which represents an advantage over other short-haul systems. The built-in RAK2013 Cellular Pi HAT is based on Quectel's EG95, an LTE CAT4 module specifically optimized for M2M and IoT applications.
The WisGate Developer D4 is a Class A and C compliant module that is ideal for prototypes, proof-of-concept demonstrations or for evaluating future deployment scenarios. It includes ready-to-use firmware based on Raspbian OS, which allows the gateway to be connected to any standard LoRaWAN® server. It is developer friendly as the large Raspbian OS community is well established. It is particularly suitable for addressing a variety of applications such as smart grids, smart farms and other IoT enterprise applications.
Note that you cannot add the WisLink Cellular Pi HAT RAK2013 later without modifying the RAK2245 board in the gateway and integrating it into the WisGate Developer RAK7243/44.
FeaturesRefreshed case design with a new MCU (Raspberry Pi4) Pre-assembled, fully functional LPWAN developer gateway Full support of the LoRaWAN® stack (version 1.0.2) Support for 8 channels and spreading factors (SF7-SF12) Band support: 433MHz, 470MHz, 865MHz, 868MHz, 915MHz, 920MHz, 923MHz TX power up to 27dBm RX sensitivity: -139dBm Integrated Ublox MAX-7Q GPS module
Box contents1 x RAK7244P LPWAN developer gateway 1 x LPWAN antenna 1 x GPS antenna 1 x power adapter 1 x SD card Link to data sheet
Questions & answers
What is the delivery time of RAK Wireless · LoRa · WisGate · Developer Gateway · RAK7244P LoRaWAN? Gateway (with built-in PoE module)?
The article RAK Wireless · LoRa · WisGate · Developer Gateway · RAK7244P LoRaWAN? Gateway (with built-in PoE module) is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RAK Wireless 715054 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you RAK Wireless · LoRa · WisGate · Developer Gateway · RAK7244P LoRaWAN? Gateway (with built-in PoE module) always at the best possible price. We can give you a discount of 2% on RAK Wireless · LoRa · WisGate · Developer Gateway · RAK7244P LoRaWAN? Gateway (with built-in PoE module) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
