RAK Wireless LoRaWAN Concentrator RAK9003 PoE Pi HAT
|
27,78 EUR |
|
|
( 33,06 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1020712 |
|---|---|
| Mfg Part No: | 610001 |
| Weight: | 0.05 kg |
Product information for RAK Wireless 610001:
RAK9003
Overview
Expand your Raspberry Pi-based networking solution with the option to be powered directly from your gateway's Ethernet port. You don't need a separate power supply! This feature is particularly useful for applications that utilize wired network connectivity.

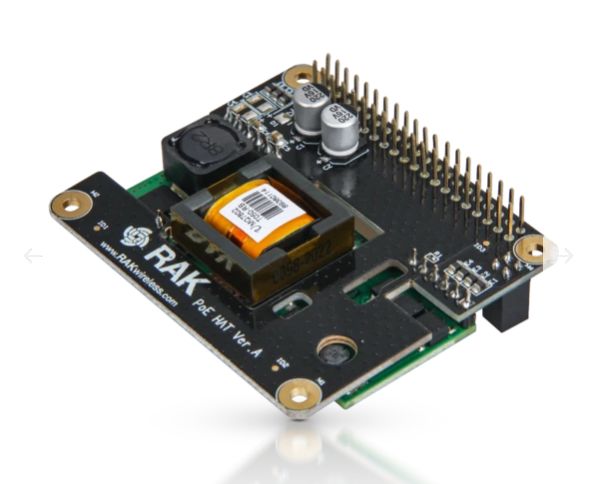

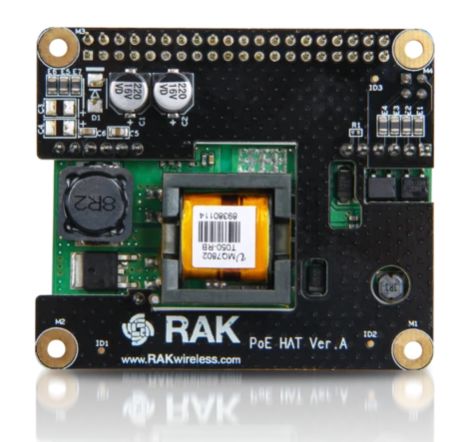

RAK9003 PoE Pi Hat is a Raspberry PI form factor add-on board that plugs directly into a Raspberry PI. RAK9003 PoE Pi Hat allows the Raspberry Pi to be powered via a standard CAT 5 Ethernet cable.
RAK9003 PoE Pi Hat is compatible with the IEEE 802.3af/at Power-over-Ethernet (PoE), it is compatible with both PoE Mode A and Mode B. The RAK9003 PoE Pi Hat signature and control circuitry provides the PoE AT compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before providing up to 30W of power to the port. The RAK9003 PoE Pi Hat is compatible with Class 0 to 4 devices. The highly efficient DC/DC converter operates over a wide input voltage range and delivers a regulated output with low ripple and noise. The DC/DC converter also has integrated overload and short-circuit protection at the output.
FeaturesRaspberry Pi form factor with a 40-pin compatible header (Pi3 B, Pi4 compatible) Compliant with IEEE 802.3af/at (Mode A It contains power negotiation circuitry at the physical layer and is compatible with Class 0 to Class 4 devices. Width Operating voltage: 42V ~ 57V. Output current: 5V@5A Output voltage ripple: High efficiency: 83% (input 48V, 5V@5A). High isolation: 5KV isolation between input and output. RoHS compliant °C ~+85 °C Link to data sheet
Questions & answers
What is the delivery time of RAK Wireless LoRaWAN Concentrator RAK9003 PoE Pi HAT?
The article RAK Wireless LoRaWAN Concentrator RAK9003 PoE Pi HAT is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RAK Wireless 610001 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you RAK Wireless LoRaWAN Concentrator RAK9003 PoE Pi HAT always at the best possible price. We can give you a discount of 2% on RAK Wireless LoRaWAN Concentrator RAK9003 PoE Pi HAT if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
