RAK Wireless · LoRa · WisLink LPWAN · RAK2245 96 Boards IoT Edition is a LoRa Concentrator Module, based on SX1301, Pre-install LoRa GATEWAY OS
|
113,39 EUR 117,30 EUR |
|
|
( 134,93 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1289160 |
|---|---|
| Mfg Part No: | 515006 |
| UPC/EAN: | LoRa Gateways |
| Weight: | 0.12 kg |
Product information for RAK Wireless 515006:

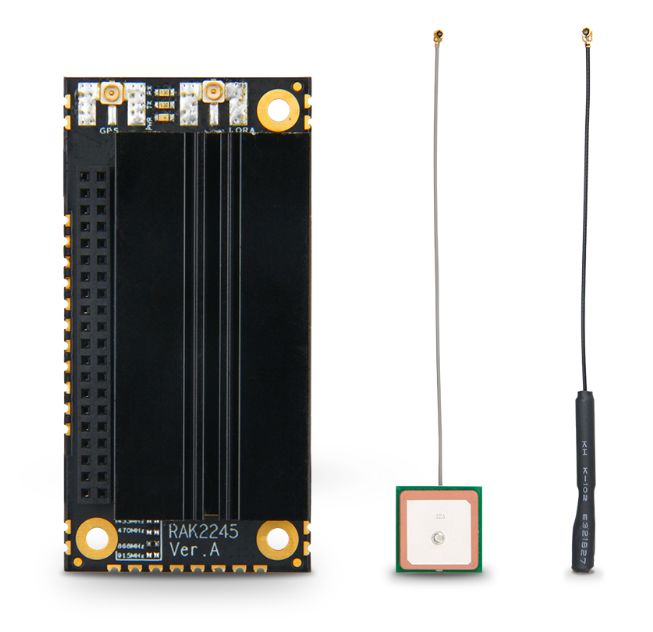

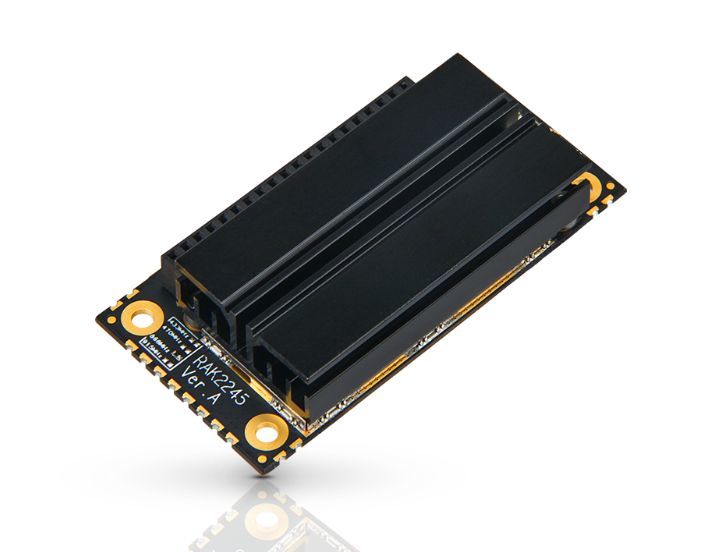

RAK2245
Overview:
The RAK2245 96Boards has the same compact form factor and great performance as the other RAK2245 modules. It is fully compatible with modules that support the 96Boards standard such as: B. Nitrogen and Orange Pi. This makes it an easy way to integrate LoRaWAN® into an existing solution that uses a 96Boards-compatible IoT module.
Like the other modules in the RAK2245 series, it is based on the Semtech® 1301 and dual SX1257/58 front-end chips. It is a full-featured 8-channel LoRa® concentrator with a number of improvements over the last generation (RAK831).
FeaturesSX1301 + 2x SX1257/58 offer 8 uplink and 1 downlink LoRa® demodulation paths Maximum Tx power of 27dBm RX sensitivity of -139dBm Improved noise resistance through improved RF chain filtering (additional SAW) Full support of the LoRaWAN® 1.0.2 stack Supported bands: (EU433, CN470, IN865, EU868, AU915, US915, KR620, AS920 and AS923) Integrated Ublox MAX-7Q GPs module 40-pin header mounting (2mm pitch, compatible with 96Boards) Smallest LPWAN concentrator at the time of its release - 60mm (L ) x 30mm(W) x 14.9mm(H) Newly designed heatsink for better heat dissipation and reduced thermal noise Scope of delivery1 x RAK2245 96 Boards Edit 1 x SubG antenna 1 x GPS antenna
Questions & answers
What is the delivery time of RAK Wireless · LoRa · WisLink LPWAN · RAK2245 96 Boards IoT Edition is a LoRa Concentrator Module, based on SX1301, Pre-install LoRa GATEWAY OS?
The article RAK Wireless · LoRa · WisLink LPWAN · RAK2245 96 Boards IoT Edition is a LoRa Concentrator Module, based on SX1301, Pre-install LoRa GATEWAY OS is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RAK Wireless 515006 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you RAK Wireless · LoRa · WisLink LPWAN · RAK2245 96 Boards IoT Edition is a LoRa Concentrator Module, based on SX1301, Pre-install LoRa GATEWAY OS always at the best possible price. We can give you a discount of 2% on RAK Wireless · LoRa · WisLink LPWAN · RAK2245 96 Boards IoT Edition is a LoRa Concentrator Module, based on SX1301, Pre-install LoRa GATEWAY OS if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
