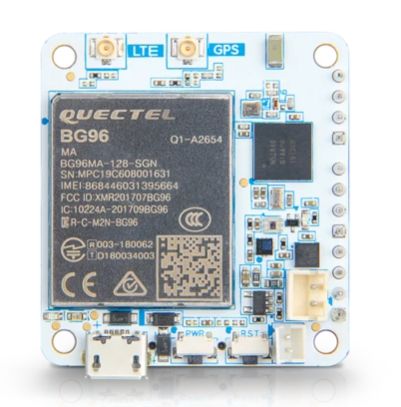

RAK Wireless WisTrio NB-IoT Tracker RAK5010
Overview
WisTrio NB-IoT Tracker Pro (RAK5010) is a tracker with integrated LTE CAT M1 Since it has both GPS and BLE, it can be used for outdoor and indoor scenarios where location-based services are required.
The RAK5010's built-in sensors are temperature and humidity sensor, motion sensor, pressure sensor and light sensor, while the RAK5010-M model only includes the temperature and humidity sensor and 3-axis motion sensor at a reduced price. The expansion IOs enable the addition of additional sensors in addition to the on-board sensors.
This board is particularly suitable as a rapid testing and prototyping tool for applications that require NB-IoT connectivity. Application development supports the GCC environment.
To properly use this product, you must purchase a compatible emulator kit. We recommend that you purchase directly from the SEGGER Microcontroller website to ensure you receive an original product.
WisTrio NB-IoT Tracker Pro does not have a solar board and PNP sensor box included as standard.
Features Quectel BG96, with LTE CAT M1, LTE NB1, and GNSS Nordic nRF52840, with BLE5.0 and long range BLE. nRF52840 integrates a very low power ARM Cortex-M4 (64Mhz) microcontroller Built-in sensors of model RAK5010: Humidity and temperature sensor Pressure sensor 3-axis motion sensor Ambient light sensor Built-in sensor of model RAK5010-M: Humidity and temperature sensor 3-axis motion sensor iPEX -Connectors for the LTE and GPS antenna and an integrated ceramic antenna for BLE. nano SIM and ESIM options. Can be powered by either Micro USB, 3.7V battery or 5V solar panel port Multiple interfaces, I2C, UART, GPIO, ADC Package Contents1 x RAK5010 or 1 piece RAK5010-M 1 x GPS iPEX Antenna 1 x LTE iPEX Antenna 1 x Micro USB Cable 1 x Battery Cable
