QNAP QXG-10G1T network adapter PCIe 10GBE RJ45 x1

Your rating:
Average rating
product review for QNAP QXG-10G1T network adapter PCIe 10GBE RJ45 x1
( 0 / 5 ) 0 ratings

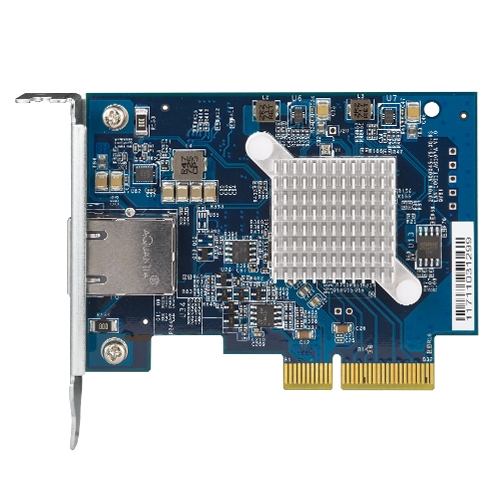

QNAP QXG-10G1T
This image may differ from the desired article.
151,92 EUR
( 180,78 EUR incl. VAT )
≈ £127.16  |  ≈ $166.96
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x QNAP QXG-10G1T network adapter PCIe 10GBE RJ45 x1
Datasheet:file_download Download
Lieske Part No.:1560803
Mfg Part No: QXG-10G1T
UPC/EAN: 4713213512739
Weight:0.123 kg

Product information for QNAP QXG-10G1T:

The QNAP QXG-10G1T is an integrated network card for QNAP NAS systems, providing a 10-Gigabit-Ethernet connection via an RJ-45 connector interface. It is designed to expand network bandwidth to support intensive data transfers and virtualization applications. The card is intended for use in server and storage systems where high data transfer rates and stable network connections are required. The PCI Express 3.0 x4 host interface enables fast data transfer between the card and the system bus, while the 10GBase-T cabling technology allows the use of standard copper cables (Cat 6a or higher) without requiring more expensive fiber optic cables.

Applications
The QXG-10G1T is specifically developed for QNAP NAS models requiring network bandwidth expansion. These include models such as QGD-1600, TS-1232, TS-1253, TS-1263, TS-1270, TS-1273, TS-1277, TS-1635, TS-1679, TS-253, TS-431, TS-453, TS-463, TS-470, TS-473, TS-563, TS-653, TS-670, TS-677, TS-831, TS-832, TS-853, TS-863, TS-870, TS-873, and TS-8. The card is used in systems requiring high data rates for backup, streaming, virtualization, or cloud integration. The 10-Gigabit-Ethernet connection enables a maximum data transfer rate of 10,000 Mbit/s, while also supporting lower speeds such as 10, 100, 1000, 2500, and 5000 Mbit/s to ensure compatibility with existing network infrastructures.

Features and Specifications in Detail
The card features a LAN controller of type Aquantia AQC107, responsible for managing the Ethernet connection. This controller supports the IEEE 802.3bz network standard, which defines the 10GBase-T technology. The copper Ethernet cabling technology includes 10GBASE-T, 100BASE-TX, and 1000BASE-T, enabling compatibility with various cable types. The card is blue painted and designed as an integrated adapter, to be installed into a free PCIe slot in the NAS housing. The low-profile bracket is included in the delivery scope, allowing installation even in systems with limited space.

Technical Explanation
The 10GBase-T technology enables data transmission over copper cables at speeds up to 10 Gbit/s. Unlike fiber optic solutions, which require special cables and transceivers, 10GBase-T can operate with standard network cables (Cat 6a or higher), simplifying installation and maintenance. The PCI Express 3.0 x4 interface provides sufficient bandwidth to fully utilize the network card’s performance without the system bus becoming a bottleneck. The card is designed for wired operation, ensuring a stable and reliable connection.

Compatibility and Accessories
The QXG-10G1T is specifically developed for the mentioned QNAP NAS models that support network bandwidth expansion via a PCIe slot. The card is compatible with Windows and Linux operating systems, enabling flexible use in various IT environments. The card is not intended for use in computers or servers from other manufacturers, as it is specifically designed for QNAP systems.

Installation and Mounting
Installation involves inserting the card into a free PCIe 3.0 x4 slot in the NAS housing. The low-profile bracket is used for securing the card firmly in place within the housing. After installation, the system must be restarted to recognize the new network interface. Configuration is performed via the QNAP system software, where the card is automatically detected and activated.

Operational Advantages
The QXG-10G1T enables a significant increase in network bandwidth, which is particularly beneficial for large data transfers, such as data migration, streaming of high-resolution videos, or using virtualization platforms. The use of standard copper cables reduces infrastructure costs, while the high speed increases system efficiency. The card is designed for professional environments where reliability and performance are critical.

Design
Product colourBlue
InternalYes
Logistics data
Harmonized System (HS) code85176990
Network
Maximum data transfer rate10000 Mbit/s
Networking standardsIEEE 802.3bz
Ethernet LAN data rates10,100,1000,2500,5000,10000 Mbit/s
Cabling technology10GBase-T
Copper ethernet cabling technology10GBASE-T, 100BASE-TX, 1000BASE-T
LAN controllerAquantia AQC107
Ethernet LANYes
Packaging data
Quantity per pack1 pc(s)
Low-profile bracketYes
Ports & interfaces
Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet
Ethernet LAN (RJ-45) ports1
PCI version3.0
System requirements
Windows operating systems supportedYes
Linux operating systems supportedYes


Product data sheet
Datasheet for QNAP QXG-10G1T, EAN: 4713213512739

Questions & answers

What is the delivery time of QNAP QXG-10G1T network adapter PCIe 10GBE RJ45 x1?

The article QNAP QXG-10G1T network adapter PCIe 10GBE RJ45 x1 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of QNAP QXG-10G1T to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you QNAP QXG-10G1T network adapter PCIe 10GBE RJ45 x1 always at the best possible price. We can give you a discount of 2% on QNAP QXG-10G1T network adapter PCIe 10GBE RJ45 x1 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
