Phoenix Contact 2692322 Bus coupler - IL PB BK DI8 DO4/EF-PAC -
|
288,42 EUR 301,53 EUR |
|
|
( 343,22 EUR incl. VAT ) ≈ £248.04 | ≈ $328.80 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 931437 |
| Mfg Part No: | 2692322 |
| UPC/EAN: | 4046356315272 |
| Weight: | 0.351 kg |
Further Industrial bus systems from Phoenix ContactFurther products in category Industrial bus systems
All products of Phoenix Contact

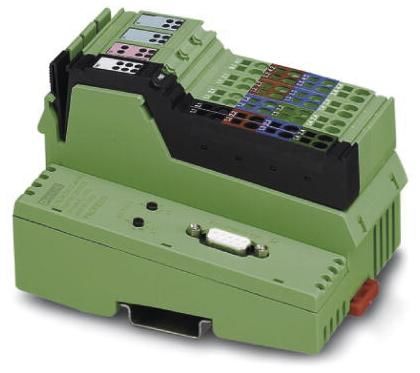

Product information for Phoenix Contact 2692322:
Inline, Bus coupler, PROFIBUS DP, D-SUB-9 female connector, Digital inputs: 8, 24 V DC, 3-conductor, Digital outputs: 4, 24 V DC, 500 mA, 3-conductor, Transmission speed in the local bus 500 kBit/s / 2 MBit/s, Degree of protection IP20, including Inline connectors and marking fields
Type: IL PB BK DI8 DO4/EF-PAC
Type: IL PB BK DI8 DO4/EF-PAC
Questions & answers
What is the delivery time of Phoenix Contact 2692322 Bus coupler - IL PB BK DI8 DO4/EF-PAC - ?
The article Phoenix Contact 2692322 Bus coupler - IL PB BK DI8 DO4/EF-PAC - is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Phoenix Contact 2692322 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Phoenix Contact 2692322 Bus coupler - IL PB BK DI8 DO4/EF-PAC - always at the best possible price. We can give you a discount of 2% on Phoenix Contact 2692322 Bus coupler - IL PB BK DI8 DO4/EF-PAC - if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Phoenix Contact 2692322 Bus coupler - IL PB BK DI8 DO4/EF-PAC -
 |
Phoenix Contact 2708245 D-SUB bus connector - SUBCON-PLUS-PROFIB/PG/SC2 -
D-SUB connector, 9-pos., male connector, cable entry < 35°, bus system: PROFIBUS DP up to 12 Mbps with PG D-SUB socket for connecting a programming device, termination resistor can be switched ... Lieske Part No.: 260350 Mfg Part No: 2708245 Type: SUBCON-PLUS-PROFIB/PG/SC2 |
-5% 44,51 EUR 47,09 EUR
 ≈ £38.28 | ≈ $50.74
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Phoenix Contact 2313708 D-SUB bus connector - SUBCON-PLUS-PROFIB/90/PG/SC -
D-SUB connector, 9-pos., male connector, cable entry < 90°, bus system: PROFIBUS DP up to 12 Mbps with PG D-SUB socket for connecting a programming device, termination resistor can be switched ... Lieske Part No.: 265771 Mfg Part No: 2313708 Type: SUBCON-PLUS-PROFIB/90/PG/SC |
-8% 47,47 EUR 51,74 EUR
≈ £40.82 | ≈ $54.12
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Phoenix Contact 2727515 Labeling field - IB IL FIELD 8 -
Labeling field, width: 48.8 mm Lieske Part No.: 324784 Mfg Part No: 2727515 Type: IB IL FIELD 8 |
-7% 22,31 EUR 23,97 EUR
≈ £19.19 | ≈ $25.43
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Phoenix Contact 2727611 Inline connector - IB IL SCN-12-ICP -
Connector, color coded, for digital 4, or 16-channel Inline input terminals Lieske Part No.: 362289 Mfg Part No: 2727611 Type: IB IL SCN-12-ICP |
-7% 80,96 EUR 87,17 EUR
≈ £69.63 | ≈ $92.29
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Phoenix Contact 2313698 D-SUB bus connector - SUBCON-PLUS-PROFIB/90/SC -
D-SUB connector, 9-pos., male connector, cable entry < 90°, bus system: PROFIBUS DP up to 12 Mbps, termination resistor can be switched on via slide switch, pin assignment: 3, 5, 6, 8; screw ... Lieske Part No.: 418800 Mfg Part No: 2313698 Type: SUBCON-PLUS-PROFIB/90/SC |
-8% 38,57 EUR 42,03 EUR
≈ £33.17 | ≈ $43.97
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Phoenix Contact 2744380 D-SUB bus connector - SUBCON-PLUS-PROFIB/AX/SC -
D-SUB connector, 9-pos., male connector, axial version with two cable entries, bus system: PROFIBUS DP up to 12 Mbps, termination resistor can be switched on via slide switch, pin assignment: 3, 5, 6, ... Lieske Part No.: 427486 Mfg Part No: 2744380 Type: SUBCON-PLUS-PROFIB/AX/SC |
-8% 38,57 EUR 42,03 EUR
≈ £33.17 | ≈ $43.97
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Phoenix Contact 2727624 Inline connector - IB IL SCN-12-OCP -
Connector, colored identification, for digital 4, or 16-channel Inline output terminal blocks Lieske Part No.: 575715 Mfg Part No: 2727624 Type: IB IL SCN-12-OCP |
-7% 80,96 EUR 87,17 EUR
≈ £69.63 | ≈ $92.29
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Phoenix Contact 2727501 Labeling field - IB IL FIELD 2 -
Labeling field, width: 12.2 mm Lieske Part No.: 591602 Mfg Part No: 2727501 Type: IB IL FIELD 2 |
-7% 16,22 EUR 17,44 EUR
≈ £13.95 | ≈ $18.49
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
|
|
Phoenix Contact 3022276 End clamp - CLIPFIX 35-5 -
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray Lieske Part No.: 650442 Mfg Part No: 3022276 Type: CLIPFIX 35-5 |
0,74 EUR
≈ £0.64 | ≈ $0.84
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Phoenix Contact 2744348 D-SUB bus connector - SUBCON-PLUS-PROFIB -
D-SUB plug, 9-pos., pin, axial version with two cable entries, below 35°, bus system: PROFIBUS DP up to 12 Mbps, termination resistor can be switched on via slide switch, pin assignment: 3, 5, 6, ... Lieske Part No.: 686445 Mfg Part No: 2744348 Type: SUBCON-PLUS-PROFIB |
-8% 38,57 EUR 42,03 EUR
≈ £33.17 | ≈ $43.97
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Phoenix Contact 2313685 D-SUB bus connector - SUBCON-PLUS-PROFIB/90/PG/IDC -
D-SUB connector, 9-pos., male connector, cable entry < 90°, bus system: PROFIBUS DP up to 12 Mbps with PG D-SUB socket for connecting a programming device, termination resistor can be switched ... Lieske Part No.: 833079 Mfg Part No: 2313685 Type: SUBCON-PLUS-PROFIB/90/PG/IDC |
-8% 45,49 EUR 49,59 EUR
≈ £39.12 | ≈ $51.86
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Phoenix Contact 2708232 D-SUB bus connector - SUBCON-PLUS-PROFIB/SC2 -
D-SUB connector, 9-pos., male connector, cable entry < 35°, bus system: PROFIBUS DP up to 12 Mbps, termination resistor can be switched on via slide switch, pin assignment: 3, 5, 6, 8; screw ... Lieske Part No.: 836492 Mfg Part No: 2708232 Type: SUBCON-PLUS-PROFIB/SC2 |
-7% 35,15 EUR 37,87 EUR
≈ £30.23 | ≈ $40.07
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Phoenix Contact 3022218 End clamp - CLIPFIX 35 -
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray Lieske Part No.: 922011 Mfg Part No: 3022218 Type: CLIPFIX 35 |
0,77 EUR
≈ £0.66 | ≈ $0.88
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Phoenix Contact 2313672 D-SUB bus connector - SUBCON-PLUS-PROFIB/90/IDC -
D-SUB connector, 9-pos., male connector, cable entry < 90°, bus system: PROFIBUS DP up to 12 Mbps, termination resistor can be switched on via slide switch, pin assignment: 3, 5, 6, 8; IDC ... Lieske Part No.: 944654 Mfg Part No: 2313672 Type: SUBCON-PLUS-PROFIB/90/IDC |
-8% 36,59 EUR 39,88 EUR
≈ £31.47 | ≈ $41.71
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Phoenix Contact 2878599 Phoenix IL BKDIO-PLSET plug set
Connector set, for inline bus couplers with connected I/Os Lieske Part No.: 1216292 Mfg Part No: 2878599 Type: IL BKDIO-PLSET |
-7% 34,41 EUR 37,05 EUR
≈ £29.59 | ≈ $39.23
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Phoenix Contact 2902320 Phoenix SUBCON-PLUS-PROFIB/35/M12 D-SUB bus connector
D-SUB connector, 9-pin, pin, assignment: 3, 5, 6, 8, two M12 cable entries (B-coded) at 35°. Bus system: PROFIBUS DP up to 12 Mbit/s. Terminating resistor via separate M12 terminator. Lieske Part No.: 1885346 Mfg Part No: 2902320 Type: SUBCON-PLUS-PROFIB/35/M12 |
44,19 EUR
≈ £38.00 | ≈ $50.38
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
