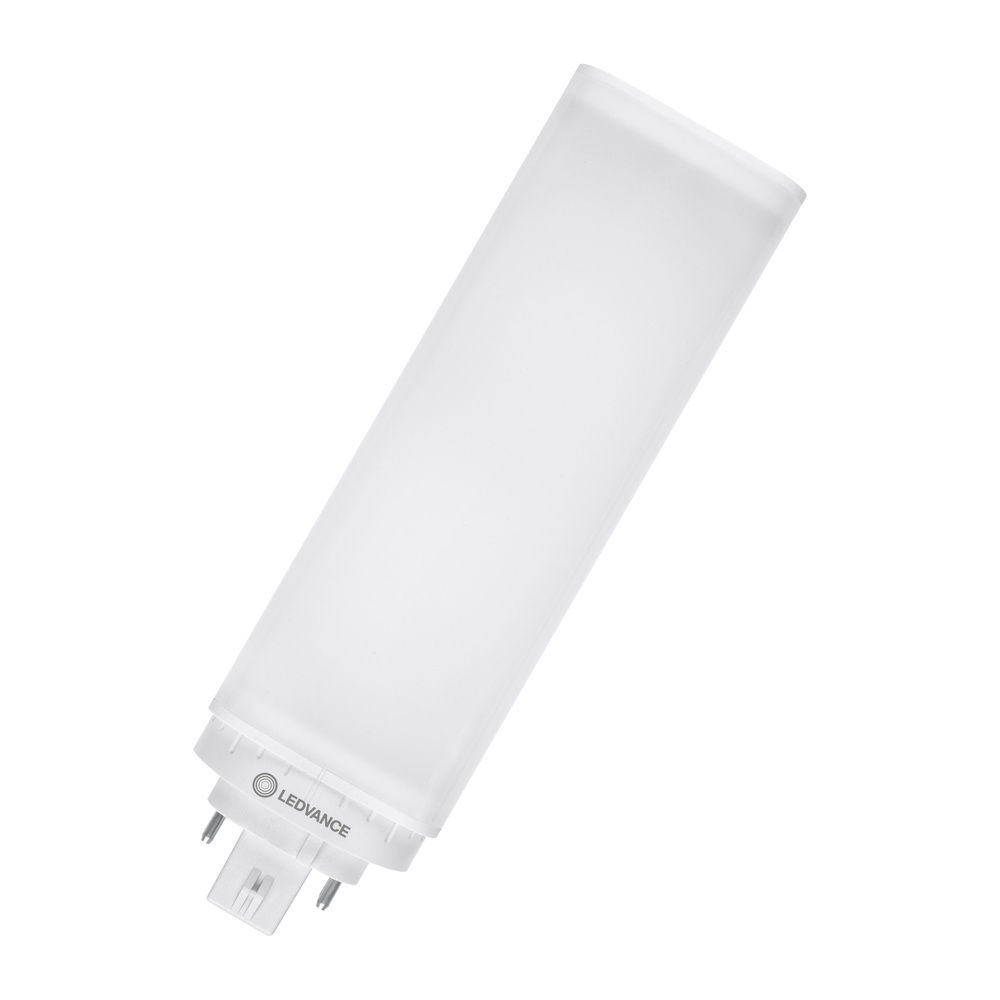

Osram 4058075822351 Ledvance DULUX LED T/E HF&AC MAINS V 16W 840 GX24Q-3 1800lm replacement for KLLni 4p EVG

Your rating:
Average rating
product review for Osram 4058075822351 Ledvance DULUX LED T/E HF&AC MAINS V 16W 840 GX24Q-3 1800lm replacement for KLLni 4p EVG
( 4.5 / 5 ) 2 ratings
Osram 4058075822351
This image may differ from the desired article.
Osram 4058075822351Osram 4058075822351
22,99 EUR 23,96 EUR
( 27,36 EUR incl. VAT )
≈ £19.15  |  ≈ $25.22
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >100 pieces
1x Osram 4058075822351 Ledvance DULUX LED T/E HF&AC MAINS V 16W 840 GX24Q-3 1800lm replacement for KLLni 4p EVG
Lieske Part No.:2070415
Mfg Part No: 4058075822351
UPC/EAN: 4058075822351
Weight:0.1408 kg
Type:DULUX LED T/E32 HF AC MAINS V 16W
Graduated prices net
From piecesPrice per pieces
1522,30 EUR
3021,61 EUR
7020,92 EUR
10020,23 EUR

Product information for Osram 4058075822351:

The Osram DULUX LED T/E32 HF AC MAINS V 16W is an LED lamp variant designed as a replacement for conventional compact fluorescent lamps (CFLs) in luminaires with electronic ballasts (EB) or directly connected to mains voltage. The product is designed for indoor use and is particularly suitable for applications in facilities such as supermarkets, department stores, corridors, passages, as well as hotels and restaurants. The lamp features a single-ended 4-pin cap of type GX24q, which is rotatable around its longitudinal axis (± 90 °), enabling flexible mounting and alignment. The protection rating IP20 ensures protection against contact with fingers and against solid foreign objects, but not against splashing water – thus, the lamp is suitable exclusively for dry indoor environments. The lamp is mercury-free and therefore complies with the requirements of the EU directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).

Applications

The lamp is designed for general lighting in indoor spaces, with ambient temperatures ranging from -20 °C to +45 °C. It is particularly suitable for commercial and industrial spaces where uniform, energy-efficient lighting is required. Application areas include retail stores, warehouses, office corridors, and food service establishments, where reliable and low-maintenance lighting is advantageous. The operating voltage is 230 V, enabling direct connection to the public power grid without requiring an additional ballast.

Functions and Features in Detail

The LED lamp provides a luminous output of 1800 lumens, replacing conventional compact fluorescent lamps with a power rating of 32 watts. The light colour corresponds to colour temperature value 840, which represents cool white light. The service life is up to 30,000 hours, significantly longer than that of conventional fluorescent lamps. The compact design facilitates replacement and reduces space requirements within the luminaire. The rotatable cap design allows adjustment of the lamp’s orientation within the luminaire housing, which is beneficial during installation and maintenance.

Technology Explained Simply

The lamp operates using LED technology, which enables high luminous output at low energy consumption. Operation directly at mains voltage (230 V) is possible without an additional transformer or ballast, simplifying installation and reducing system complexity. The integrated electronics ensure stable light output and prevent flickering. The protection rating IP20 protects against contact with fingers and solid foreign objects, but is not suitable for damp or wet environments. The lamp is designed for use in luminaires with electronic ballasts (EB) or directly connected to mains voltage, making it compatible with various luminaire configurations.

Compatibility and Accessories

The lamp is compatible with luminaires featuring a 4-pin GX24q socket. It can be operated both in luminaires with electronic ballasts (EB) and directly connected to mains voltage. Use in luminaires designed for compact fluorescent lamps is possible, provided the electrical and mechanical requirements specified by the luminaire manufacturer are observed.

Installation and Mounting

Installation is performed by simply inserting the lamp into the existing GX24q socket. Due to the rotatable socket design, the lamp can be rotated ± 90 ° during installation to optimise its orientation within the luminaire housing. The lamp is intended for indoor use, with ambient temperatures between -20 °C and +45 °C. Installation does not require any special tools, as the lamp is mechanically inserted into the socket.

Operational Advantages

The lamp offers low energy consumption of 16 watts with a luminous output of 1800 lumens, representing high energy efficiency. The service life of up to 30,000 hours reduces maintenance frequency and operating costs. The mercury-free design complies with environmental regulations and simplifies disposal. The simple installation and compact housing facilitate replacement and maintenance, especially in hard-to-reach luminaires. The direct mains voltage operation option reduces dependence on additional ballasts and increases system reliability.

General
Luminous efficacy1800 lm
Operating voltage230 V
Degree of protectionIP20
Plug socketGX24q
Number of pins4
Colour of light840
Energy consumption16 W
Replacement forKLLni
OperationEVG or mains voltage
Rotatable base± 90 °
Mercury-freeYes


Questions & answers

What is the delivery time of Osram 4058075822351 Ledvance DULUX LED T/E HF&AC MAINS V 16W 840 GX24Q-3 1800lm replacement for KLLni 4p EVG?

The article Osram 4058075822351 Ledvance DULUX LED T/E HF&AC MAINS V 16W 840 GX24Q-3 1800lm replacement for KLLni 4p EVG is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Osram 4058075822351 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Osram 4058075822351 Ledvance DULUX LED T/E HF&AC MAINS V 16W 840 GX24Q-3 1800lm replacement for KLLni 4p EVG always at the best possible price. We can give you a discount of 2% on Osram 4058075822351 Ledvance DULUX LED T/E HF&AC MAINS V 16W 840 GX24Q-3 1800lm replacement for KLLni 4p EVG if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Osram 4058075822351 Ledvance DULUX LED T/E HF&AC MAINS V 16W 840 GX24Q-3 1800lm replacement for KLLni 4p EVG we can offer you a price of 22,30 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
