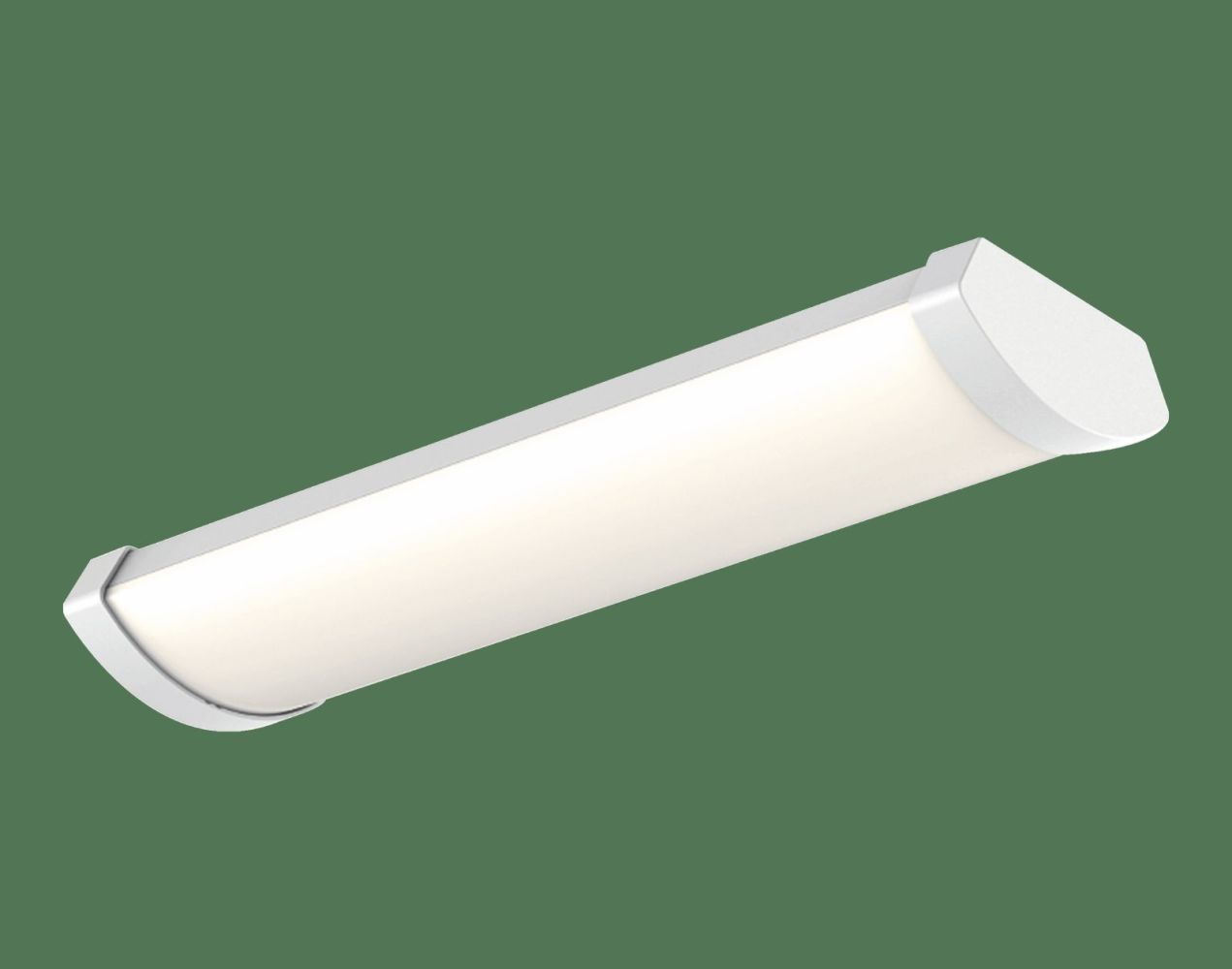

OPPLE LIGHTING 531000018900 LEDLinear-E2 L06-10/18W-830/840 Opp L06-10/18W-830/840 content_copy

The LEDLinear-E2 L06-10/18W-830/840 from OPPLE LIGHTING is a linear LED surface-mounted luminaire designed as a replacement for conventional fluorescent lamps (TL). The device features simple installation and is suitable for use in indoor environments with increased requirements for mechanical and weather-related durability. The design is elegant and robust, with a protection rating of IP44, ensuring dust and splash water protection, as well as a mechanical protection grade of IK06, which safeguards against minor mechanical impacts such as shocks or vibrations. The luminaire is equipped with an opal diffuser, providing even and pleasant lighting without glare.

Applications
This luminaire is suitable for indoor use, particularly in areas such as offices, administrative buildings, warehouses, or workshops, where reliable and energy-efficient lighting is required. The IP44 protection rating also makes it suitable for humid environments such as kitchens, bathrooms, or laundry rooms, provided there is no direct water exposure. The integrated colour temperature control allows for adjustment of the light to suit different times of day or working conditions.

Functions and Equipment in Detail
A central feature of the LEDLinear-E2 is the integrated CCT switch, enabling selection between 3000K (warm white) and 4000K (neutral white). This switch is directly mounted on the device and allows for simple, manual adjustment of the light colour without requiring additional control units. The luminous efficacy reaches up to 130 lumens per watt, indicating high energy efficiency and low operating costs. The luminaire is equipped with an opal diffuser, which distributes light evenly and minimizes glare effects.

Technology Explained Simply
The luminaire operates using LED technology, offering a longer lifespan and lower energy consumption compared to conventional light sources. The specified luminous flux of 2340 lumens at a power consumption of 18 watts corresponds to high luminous efficacy. The IP44 protection rating means the device is protected against splashing water and dust, making it suitable for use in humid or dusty environments. The IK06 protection grade safeguards against mechanical impacts such as minor shocks or vibrations, enhancing robustness during daily operation. Power supply is via a central or side connection, providing flexible installation options.

Compatibility and Accessories
As an accessory, a motion and daylight sensor is available, offered under the designation Opple 140060553 LED Module Clio Sensor. This sensor can be used for automatic control of the luminaire, for example, turning off the light when no one is present or adjusting brightness according to daylight conditions. Combining the luminaire with this sensor expands its functionality and enables intelligent, energy-efficient use.

Mounting and Installation
The luminaire is designed for easy installation. Mounting is typically done on the ceiling or wall, with mounting options varying depending on the installation location. Power supply can be central or side-mounted, allowing for flexible placement within the room. The luminaire is designed as a replacement for TL luminaires, enabling direct interchangeability in existing installations.

Operational Advantages
The LEDLinear-E2 offers high luminous efficacy, leading to lower energy costs. The integrated colour temperature control allows adaptation of the light to various usage scenarios. The robust construction with IP44 and IK06 ensures long service life and reliability in daily operation. The use of an opal diffuser provides pleasant, glare-free lighting. Compatibility with a motion and daylight sensor expands functionality and enables intelligent, automated use.

General
Luminous efficacy	130 lm/W
Colour temperature	3000K-4000K
Degree of protection	IP44
Mechanical protection rating	IK06
Luminous intensity	2340 lm
Power consumption	18 W
Diffusor	Opal
Power connection	Central or side
Accessories	motion and daylight sensor (Opple 140060553 LED Module Clio Sensor)

---
