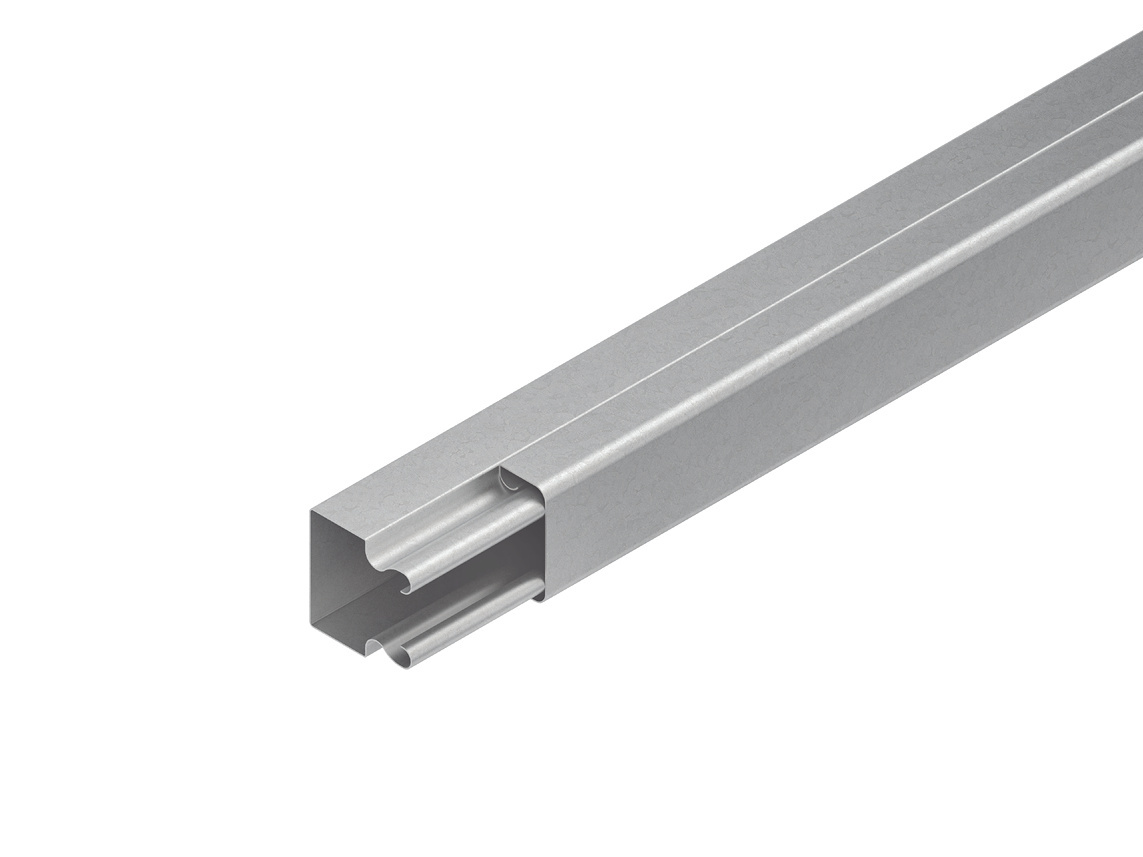

Niedax LUK60.100 cable protection channel with cover 60x100x2000 mm galvanized content_copy

The LUK 60.100 cable protection channel from Niedax is a strip-galvanised steel channel for the installation of electrical wiring in indoor environments. It features a non-perforated construction and a snap-on lid, enabling secure and quick installation. The dimensions are approximately 60 mm height and 100 mm width, with a delivery length of 2000 mm. The channel is designed for use in electrical installations where proper cable routing and reliable equipotential bonding are required.

Cable protection channel
LUK 60.100 is designed for the protected routing of electrical wires and cables. It is specifically designed for use in electrical installation systems where mechanical protection and prevention of short-circuit hazards due to unintended contact with wires are required. The non-perforated design ensures high mechanical stability and prevents foreign objects or moisture from entering the channel.

Functions and equipment in detail
A central feature is the snap-on lid, which is mechanically secured to the channel. When snapped into place, the equipotential bonding of the lid is automatically established, enhancing electrical safety. This mechanism ensures that the lid is electrically connected to the channel without requiring manual connections. For connections at joints, two joint connectors LST... are required, which must be ordered separately.

Technology explained clearly
The channel is made of steel, galvanised in accordance with DIN EN 10346. This galvanisation protects the material from corrosion and increases the product's service life, especially in damp or slightly aggressive environments. The galvanisation is achieved through the strip galvanising process, which creates an even protective layer across the entire surface of the steel. The usable cross-section is 5582 mm², enabling the capacity for multiple cables or wires within a single channel.

Compatibility and accessories
LUK 60.100 is designed for use in electrical installations complying with VDE guidelines. VDE certification confirms conformity with applicable safety standards. These connectors ensure an electrically safe and mechanically stable connection between individual channel sections.

Installation and mounting
Mounting is performed by snapping the lid onto the designated attachment points of the channel. The automatic equipotential bonding function during snapping reduces installation time and minimises error sources. The non-perforated construction requires no additional fastening elements for the lid, as the mechanical locking is secure. The delivery length of 2000 mm enables efficient installation over longer distances, with joints created using the separately ordered connectors.

Advantages in operation
The use of LUK 60.100 ensures safe and orderly cable routing. The automatic equipotential bonding function when snapping the lid reduces installation complexity and increases electrical safety. The strip-galvanised steel construction offers high corrosion resistance, extending the channel's service life. The non-perforated design protects wires from mechanical damage and prevents moisture or foreign objects from entering.

The item price shown refers to 8 meters Niedax LUK60.100

General
Delivery length	2000 mm
Useful cross section	5582 mm²
Material	Steel, galvanised
Galvanizing process	according to DIN EN 10346
Cover	Snap on
Earthing	automatically when tightening
Accessories	two LST... splice connectors per splice point
Certification	VDE

---
