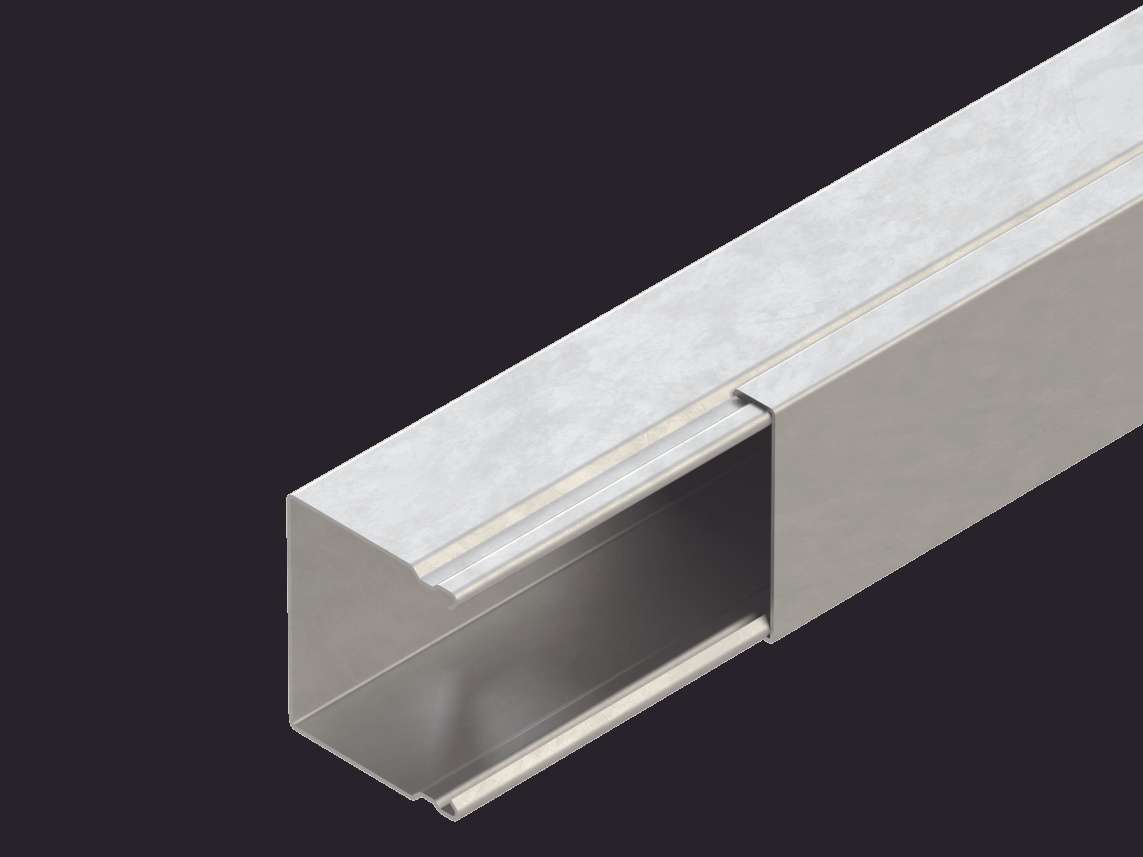

Niedax LLK26.030 cable protection channel Mini with cover 26x30x2000 mm galvanized
|
48,83 EUR |
|||||||||||
|
( 58,11 EUR incl. VAT ) ≈ £40.82 | ≈ $53.96 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| Sales unit: 2 meters | |||||||||||
| In Stock: >100 meters | |||||||||||
| Lieske Part No.: | 721996 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | LLK26.030 | ||||||||||
| UPC/EAN: | 4013339506903 | ||||||||||
| Weight: | 1.0271 kg | ||||||||||
| Type: | LLK 26.030 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Niedax LLK26.030:
Cable protection duct
The LLK 26.030 serves as a closed conduit element for electrical cables, protecting them from mechanical stress, contamination, and external influences. It is typically used in electrical installations, particularly in residential and commercial buildings, where proper and safe cable routing is required. The design enables clean and structured cable routing, facilitating maintenance and inspection of the cables.
Functions and equipment in detail
A central feature is the snap-on lid, which allows easy installation and removal without requiring additional tools. When snapping the lid into place, equipotential bonding is automatically established, enhancing electrical safety. The single-row mounting perforation in the duct base, with dimensions 4.2 x 12 mm and 7 x 15 mm, offers flexible mounting options on various substrates. The 250 mm grid spacing enables even and stable mounting.
Technology explained clearly
The duct is made of strip-galvanised steel, providing high mechanical strength and corrosion resistance. Galvanisation according to DIN EN 10346 ensures a uniform protective layer, extending the product’s service life. The automatic equipotential bonding function when snapping the lid ensures all metallic parts are electrically conductively connected, which is essential for protection against contact voltages and for the proper operation of residual current devices.
Compatibility and accessories
For secure connection of duct sections, joint connectors of type LST... or LSTA... are required and must be ordered separately for each joint. These connectors ensure an electrically conductive and mechanically stable connection between duct sections.
Mounting and installation
Installation is carried out by securing the duct to the substrate using the single-row perforation in the base. The 250 mm spacing allows for even distribution of mounting points. The lid is secured by snapping it into place, simultaneously establishing the electrical connection and mechanical closure. Routing typically occurs along walls, ceilings, or floor plates, adhering to electrical installation guidelines.
t
Advantages in operation
The LLK 26.030 provides reliable and safe cable routing with minimal installation effort. The automatic equipotential bonding function reduces the risk of electrical hazards. The use of strip-galvanised steel ensures long service life and high corrosion resistance. The standard delivery length of 2000 mm simplifies planning and installation in larger systems. VDE certification confirms compliance with relevant safety standards.
Accessories and alternatives
For functional integrity, additional regulations must be observed. For connecting duct sections, joint connectors LST.../LSTA... are required and must be ordered separately. These connectors ensure an electrically conductive and mechanically stable connection.
Manufacturer number and certification
The manufacturer’s number of the product is LLK26.030. The product is VDE-certified, confirming compliance with relevant safety and quality standards for electrical installations. Certification covers electrical safety, mechanical stability, and corrosion resistance of the product.
Applications
The LLK 26.030 is intended for use in indoor environments, particularly in residential and commercial buildings. It is suitable for routing electrical cables in electrical installations, meeting requirements for safety and functionality.
The item price shown refers to 2 meters Niedax LLK26.030
| General | |
| Delivery length | 2000 mm |
| Useful cross section | 730 mm² |
| Mounting perforation | 4.2 x 12 mm and 7 x 15 mm |
| Pitch | 250 mm |
| Material | Steel, galvanised |
| Norm | DIN EN 10346 |
| Certification | VDE |
Questions & answers
What is the delivery time of Niedax LLK26.030 cable protection channel Mini with cover 26x30x2000 mm galvanized?
The article Niedax LLK26.030 cable protection channel Mini with cover 26x30x2000 mm galvanized is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Niedax LLK26.030 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Niedax LLK26.030 cable protection channel Mini with cover 26x30x2000 mm galvanized always at the best possible price. We can give you a discount of 2% on Niedax LLK26.030 cable protection channel Mini with cover 26x30x2000 mm galvanized if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 meters of Niedax LLK26.030 cable protection channel Mini with cover 26x30x2000 mm galvanized we can offer you a price of 41,87 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Niedax LLK26.030 cable protection channel Mini with cover 26x30x2000 mm galvanized is offered by us in a sales unit of 2 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
