MSI MPG B860I EDGE TI WIFI LGA1851 mini-ITX MB 2xDDR5 2xSATA 2xM.2
|
178,96 EUR |
|
|
( 212,96 EUR incl. VAT ) ≈ £149.79 | ≈ $200.26 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 18. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1616841 |
| Mfg Part No: | 7E43-001R |
| UPC/EAN: | 4711377350174 |
| Weight: | 1.275 kg |

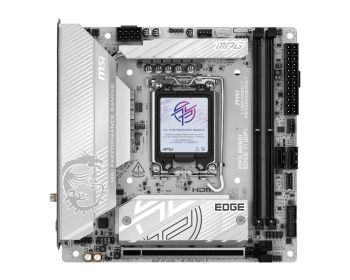

Product information for MSI 7E43-001R:
MSI MPG B860I EDGE TI WIFI. Prozessorhersteller: Intel, Prozessorsockel: LGA 1851 (Socket V1), Kompatible Prozessoren: Intel Core Ultra (Series 2). Unterstützte Arbeitsspeicher: DDR5-SDRAM, RAM-Speicher maximal: 128 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA, Unterstützte Speicherlaufwerke: HDD & SSD, RAID Level: 0, 1. Ethernet Schnittstellen Typ: 5 Gigabit Ethernet, Top WLAN-Standard: Wi-Fi 7 (802.11be), WLAN-Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7.... Komponente für: PC, Motherboardformfaktor: mini ITX, Motherboard Chipsatz Familie: Intel
| BIOS | |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Features | |
| Motherboard chipset | Intel B860 |
| Audio output channels | 7.1 channels |
| Product colour | White |
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Graphics | |
| On-board graphics card | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of CPU fan connectors | 1 |
| S/PDIF out connector | |
| Audio connector | |
| Front panel connector | |
| Power fan connector | |
| CPU fan connector | |
| Chassis intrusion connector | |
| TPM connector | |
| RGB LED pin header | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 128 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN controller model | Killer Wi-Fi BE1750x |
| Bluetooth version | 5.4 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Packaging content | |
| Cables included | SATA |
| Antenna included | |
| Screws included | |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt ports quantity | 1 |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| Number of storage drives supported | 4 |
| RAID levels | 0, 1 |
| RAID support | |
| Technical details | |
| Legal guarantee | 3 year(s) |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
