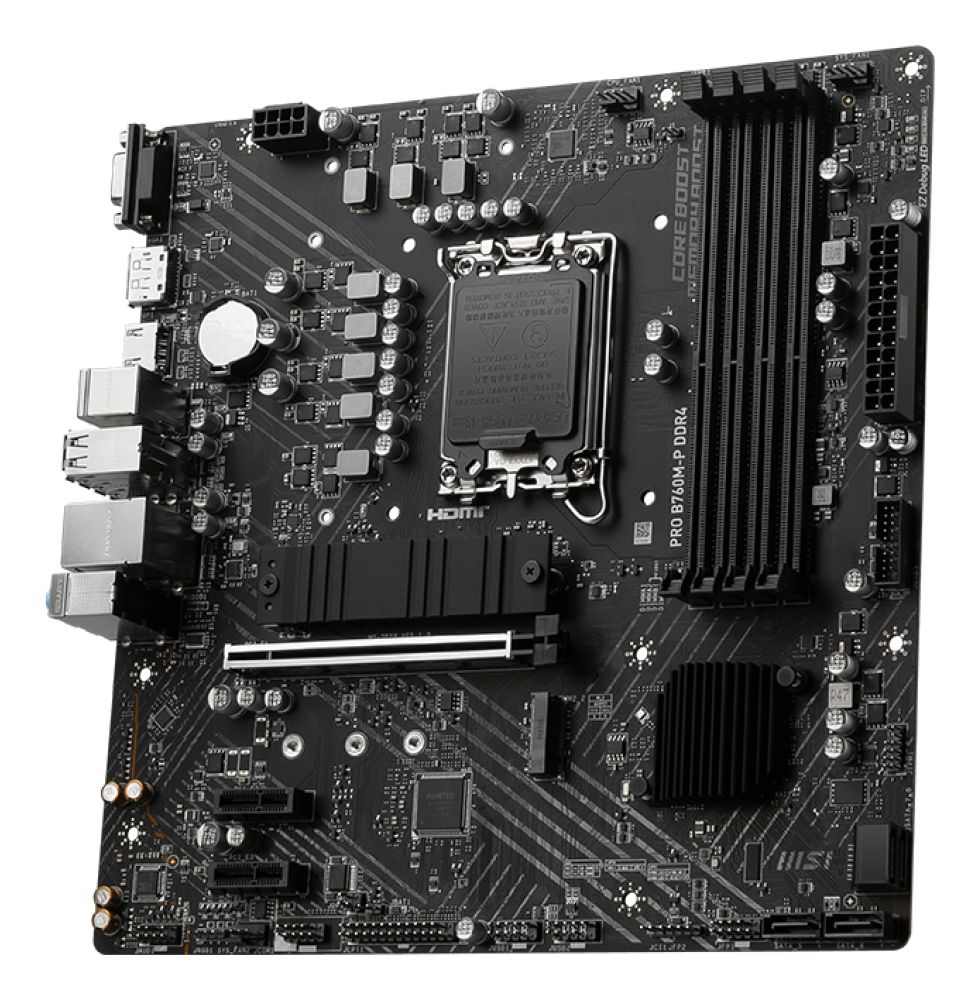

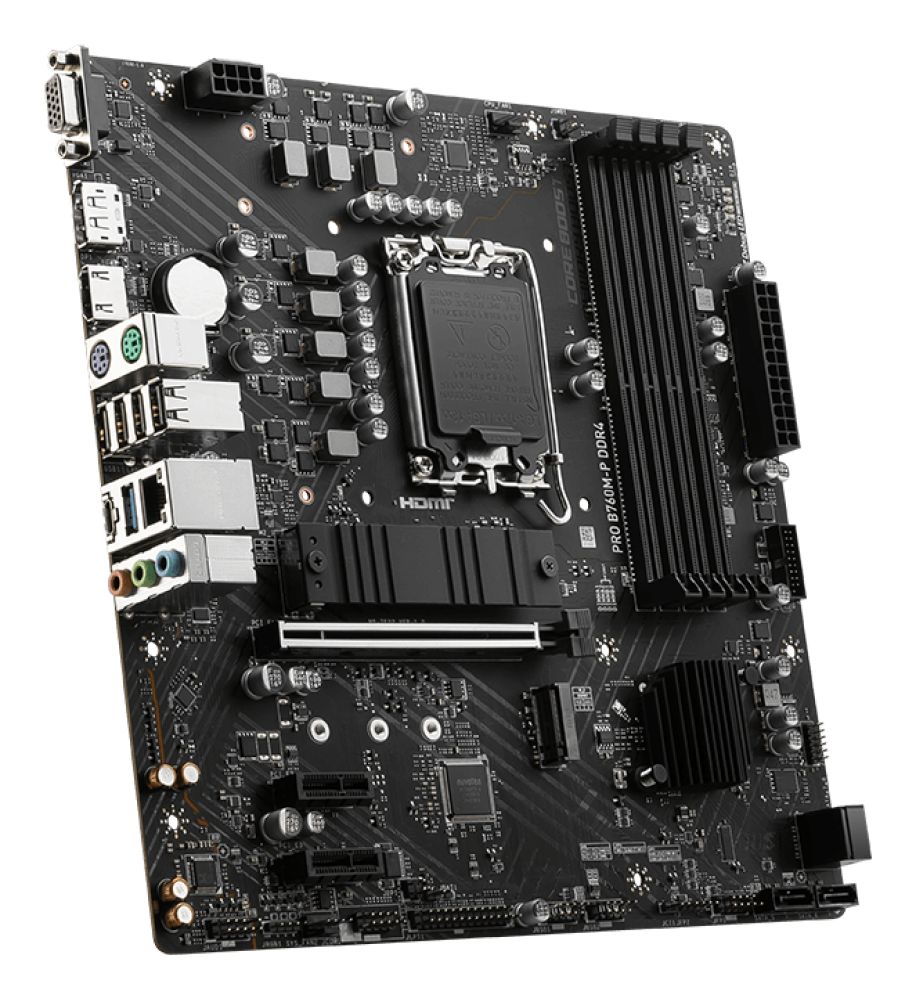

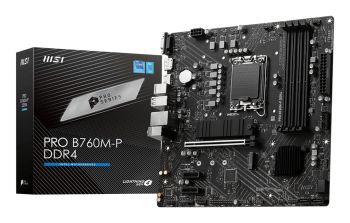

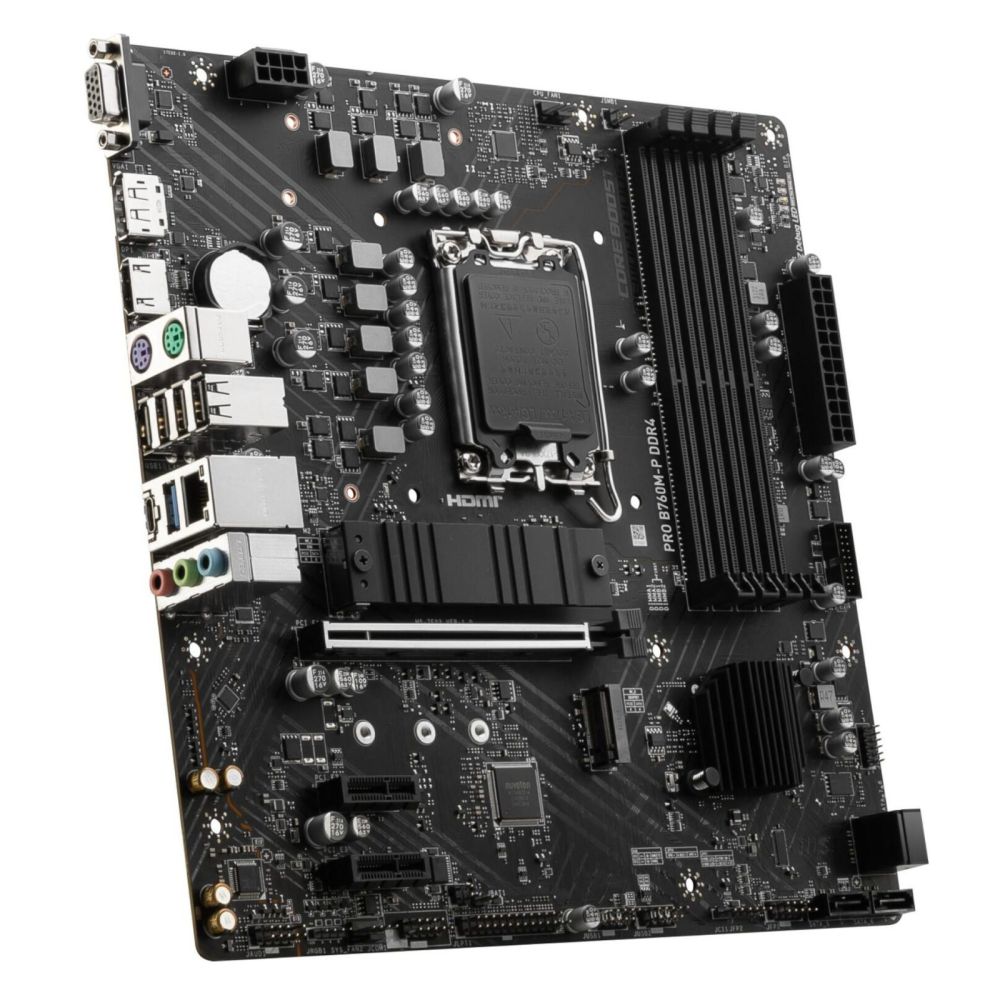

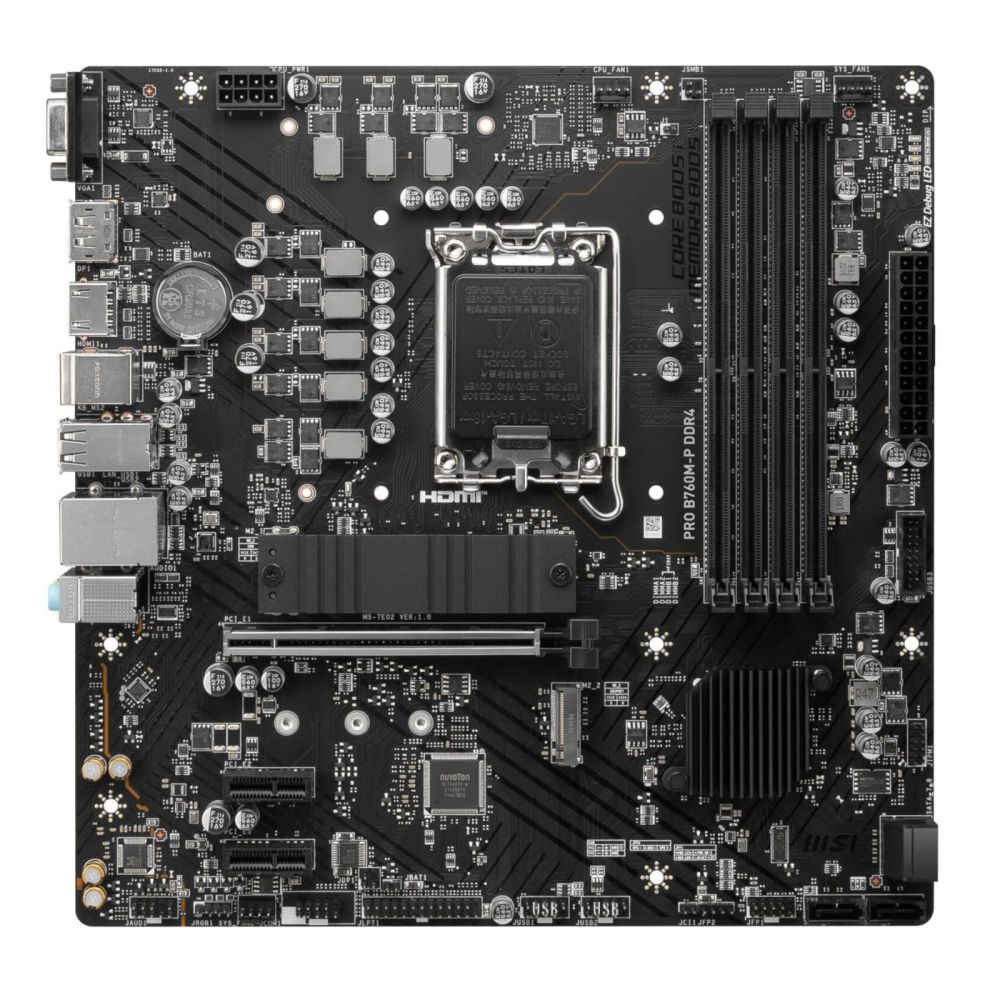

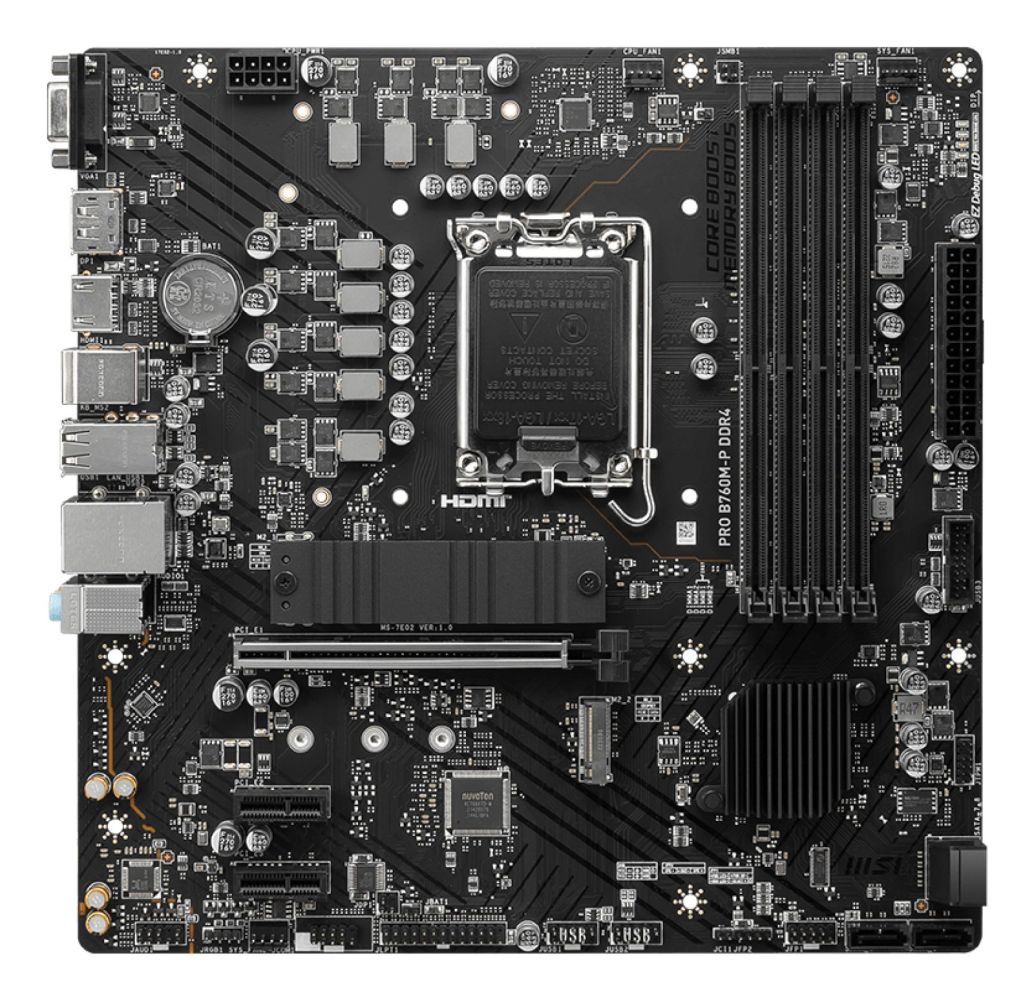

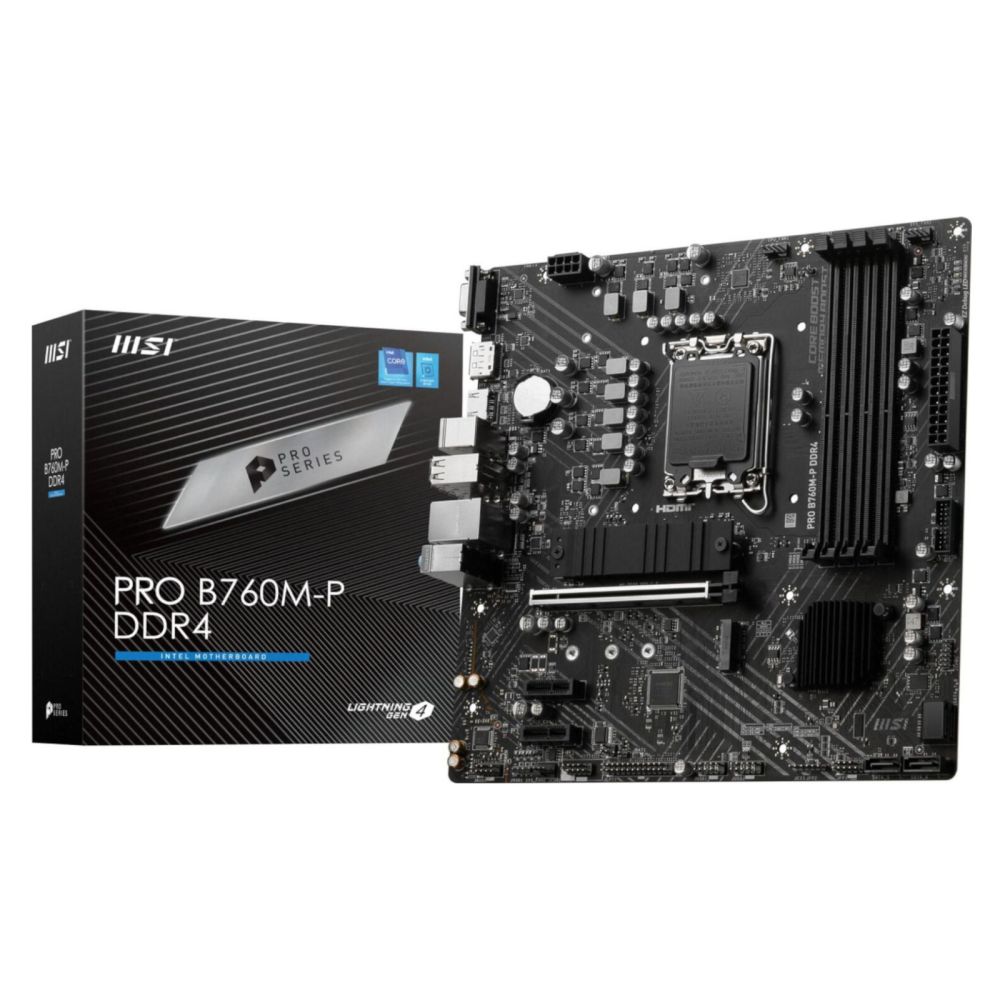

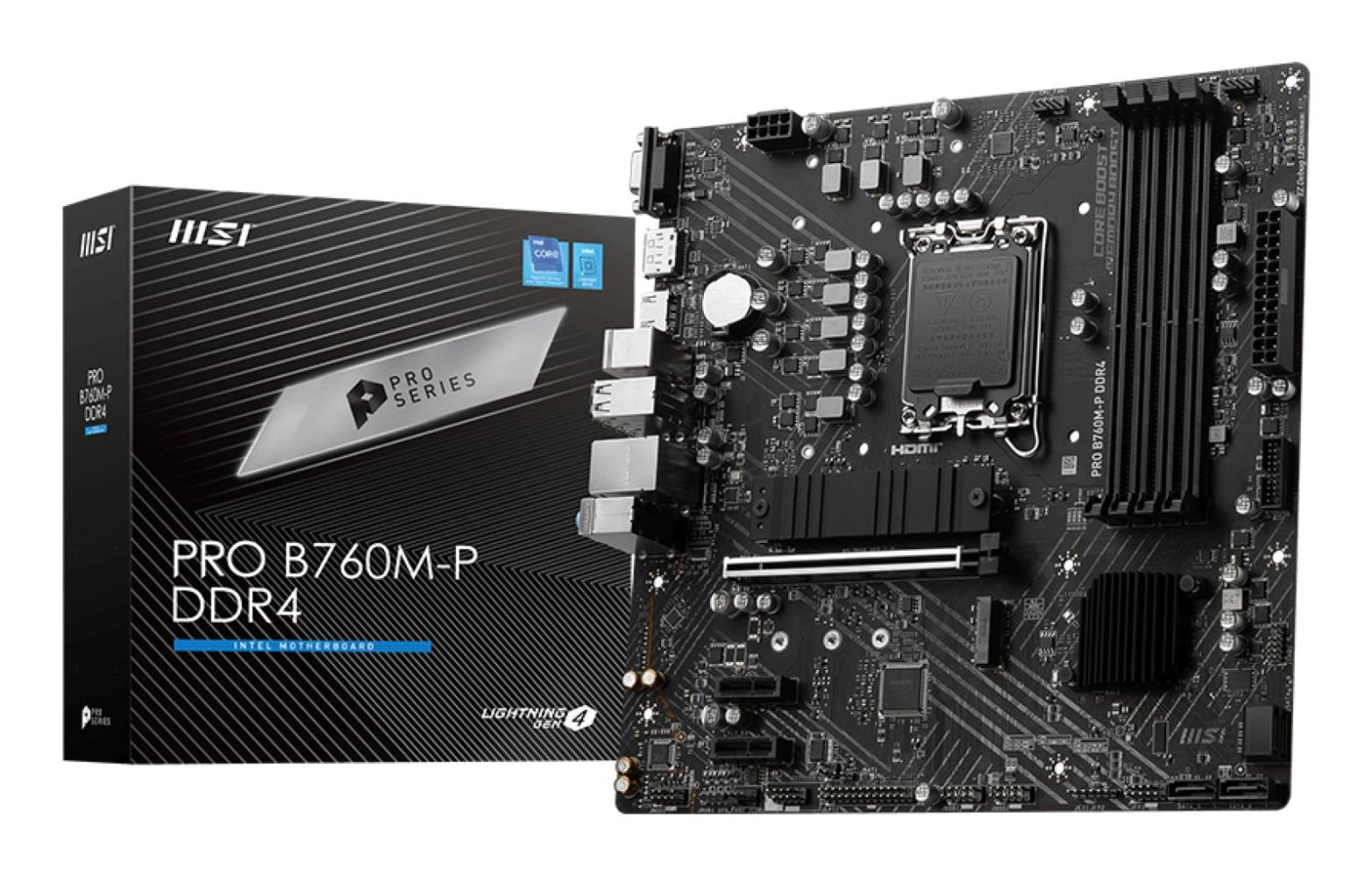

MSI PRO B760M-P DDR4 (B760,S1700,mATX,DDR4)
|
93,64 EUR 94,32 EUR |
|
|
( 111,43 EUR incl. VAT ) ≈ £78.47 | ≈ $105.16 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2065902 |
| Mfg Part No: | 7E02-001R |
| UPC/EAN: | 4711377030991 |
| Weight: | 0.9 kg |
Product information for MSI 7E02-001R:
MSI PRO B760M-P DDR4. Prozessorhersteller: Intel, Prozessorsockel: LGA 1700, Kompatible Prozessoren: Intel® Celeron®, Intel® Pentium® Gold. Unterstützte Arbeitsspeicher: DDR4-SDRAM, RAM-Speicher maximal: 128 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III, RAID Level: 0, 1, 5, 10. Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet. Komponente für: PC, Motherboardformfaktor: micro ATX, Motherboard Chipsatz Familie: Intel
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| System Management BIOS (SMBIOS) version | 3.5 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | Intel B760 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Graphics | |
| On-board graphics card | |
| Internal I/O | |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| TPM connector | |
| RGB LED pin header | |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800, 4600, 4400, 4266, 4200, 4000, 3800, 3733, 3600, 3466, 3400, 3333, 3200, 2933, 2666, 2400, 2133 MHz |
| Supported memory clock speed (max) | 4800 MHz |
| Maximum internal memory | 128 GB |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wi-Fi | |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |

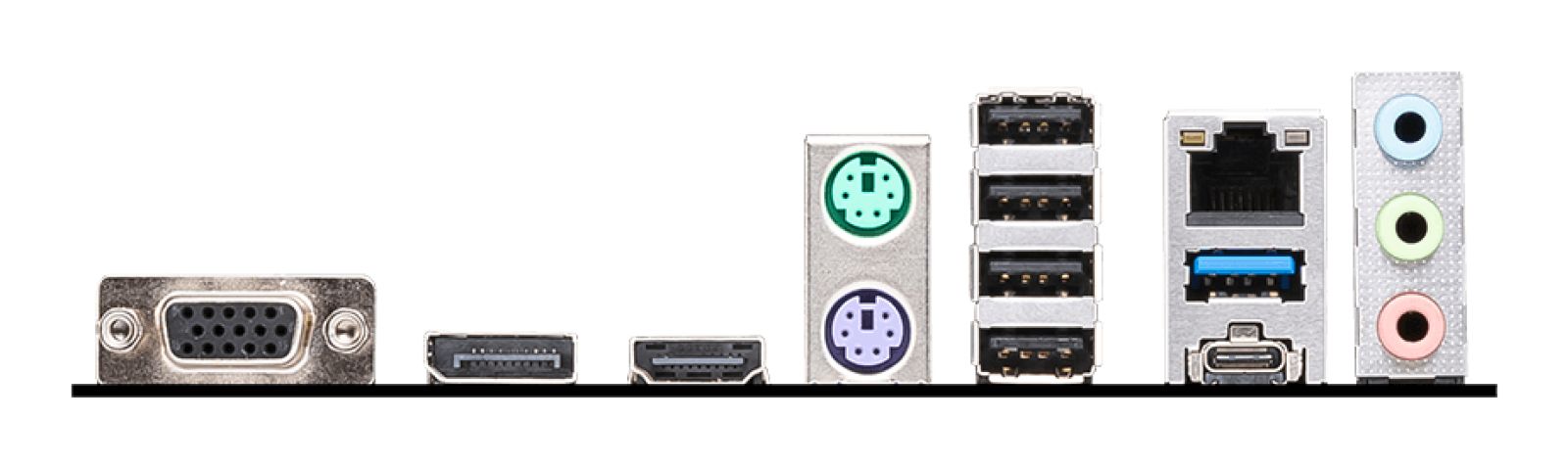

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 243.8 mm |
| Depth | 243.8 mm |
Questions & answers
What is the delivery time of MSI PRO B760M-P DDR4 (B760,S1700,mATX,DDR4)?
The article MSI PRO B760M-P DDR4 (B760,S1700,mATX,DDR4) is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of MSI 7E02-001R to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you MSI PRO B760M-P DDR4 (B760,S1700,mATX,DDR4) always at the best possible price. We can give you a discount of 2% on MSI PRO B760M-P DDR4 (B760,S1700,mATX,DDR4) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
