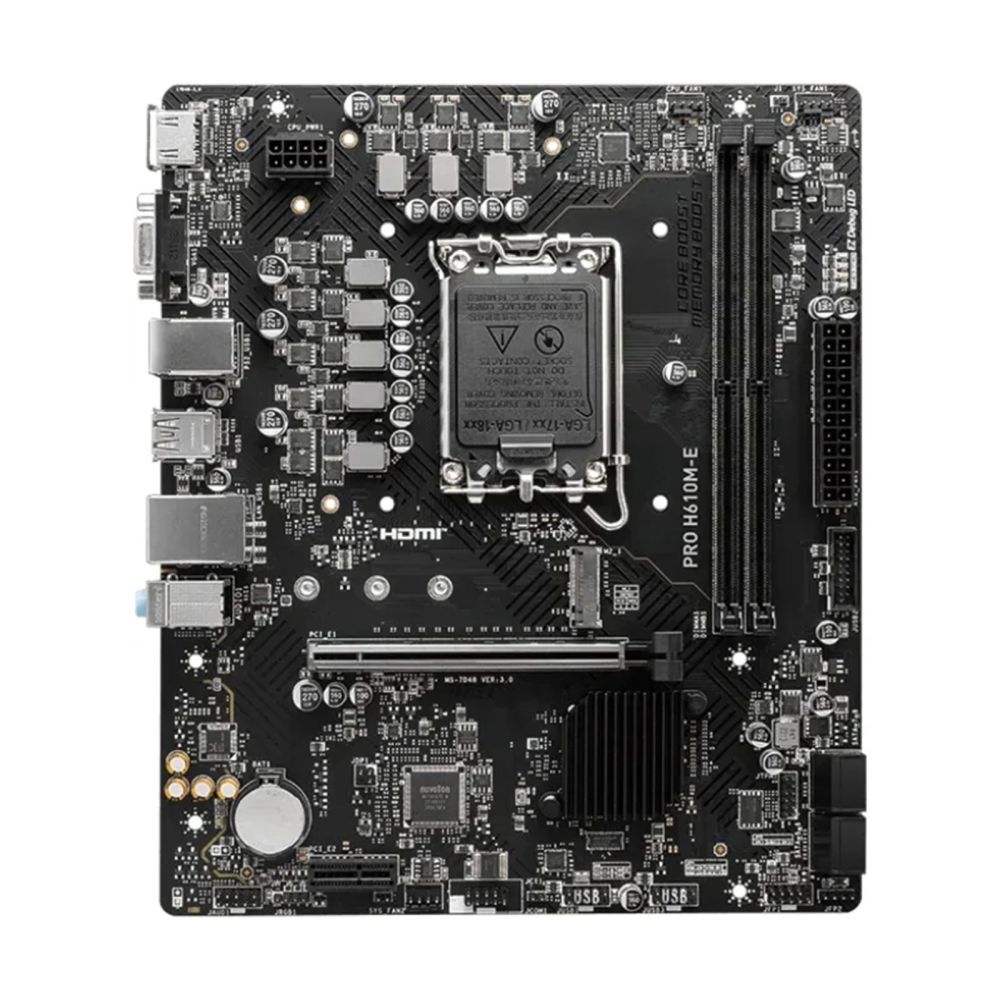

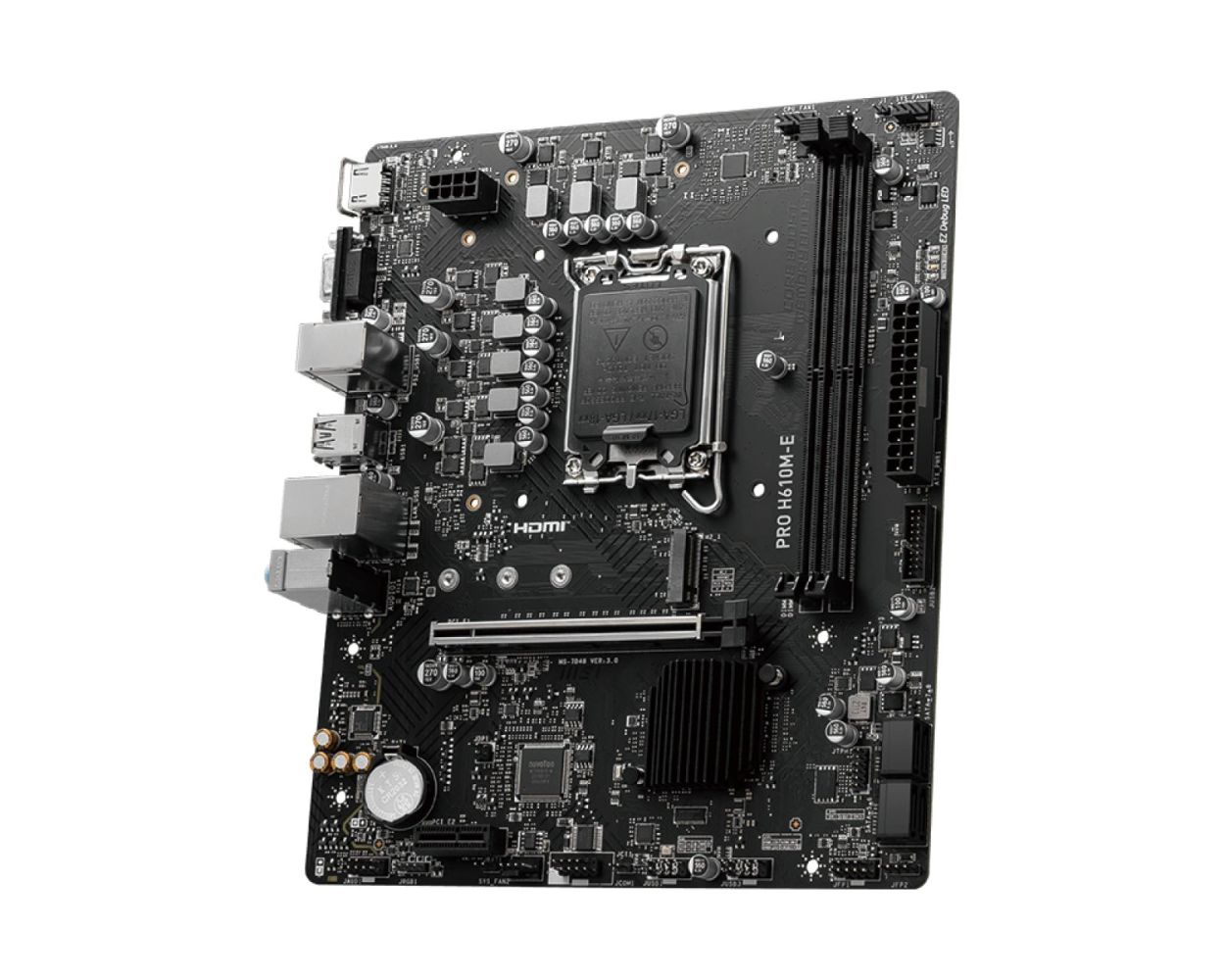

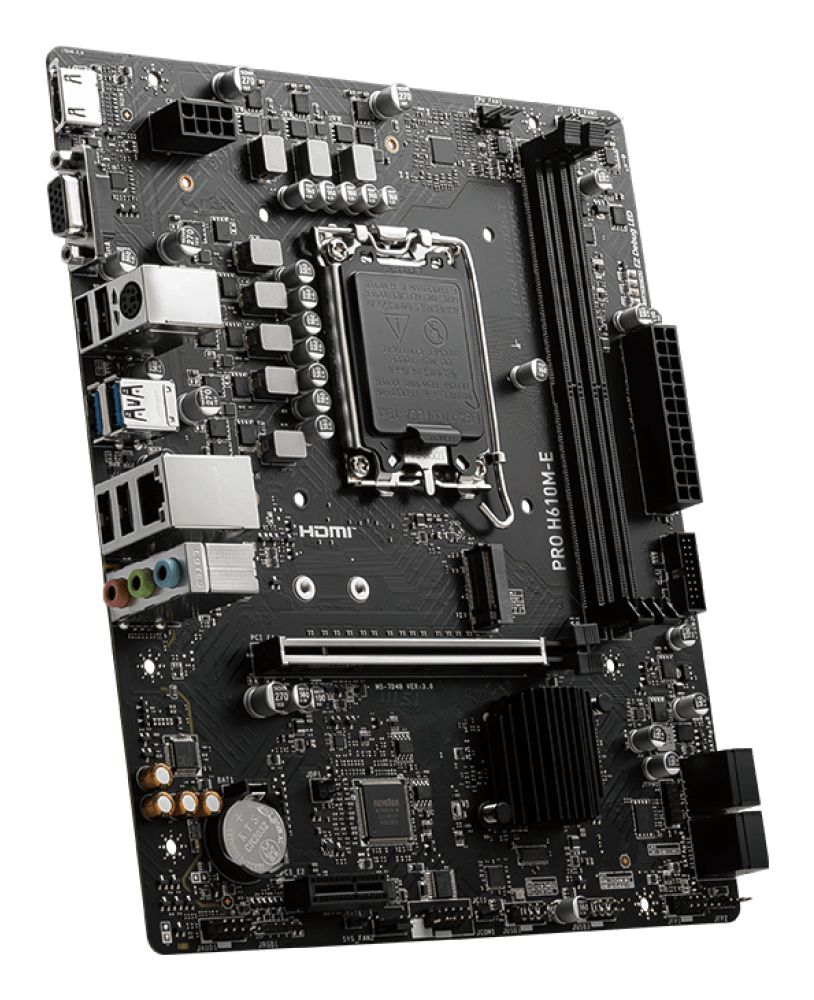

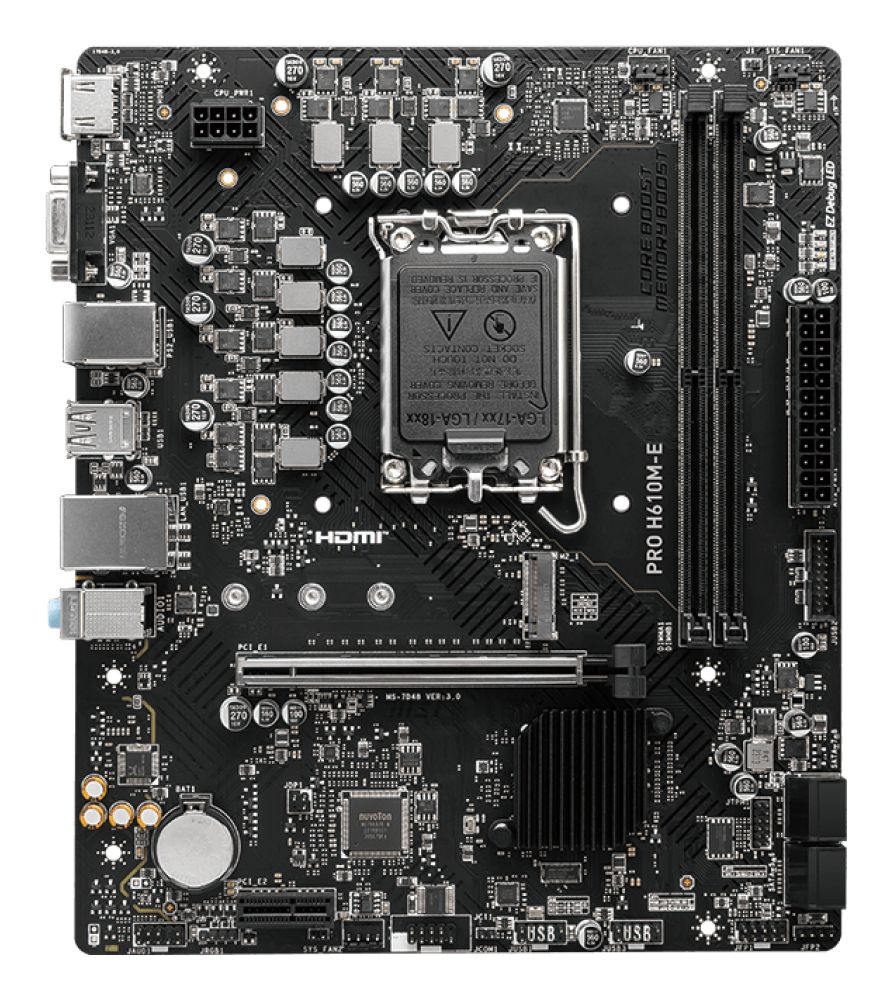

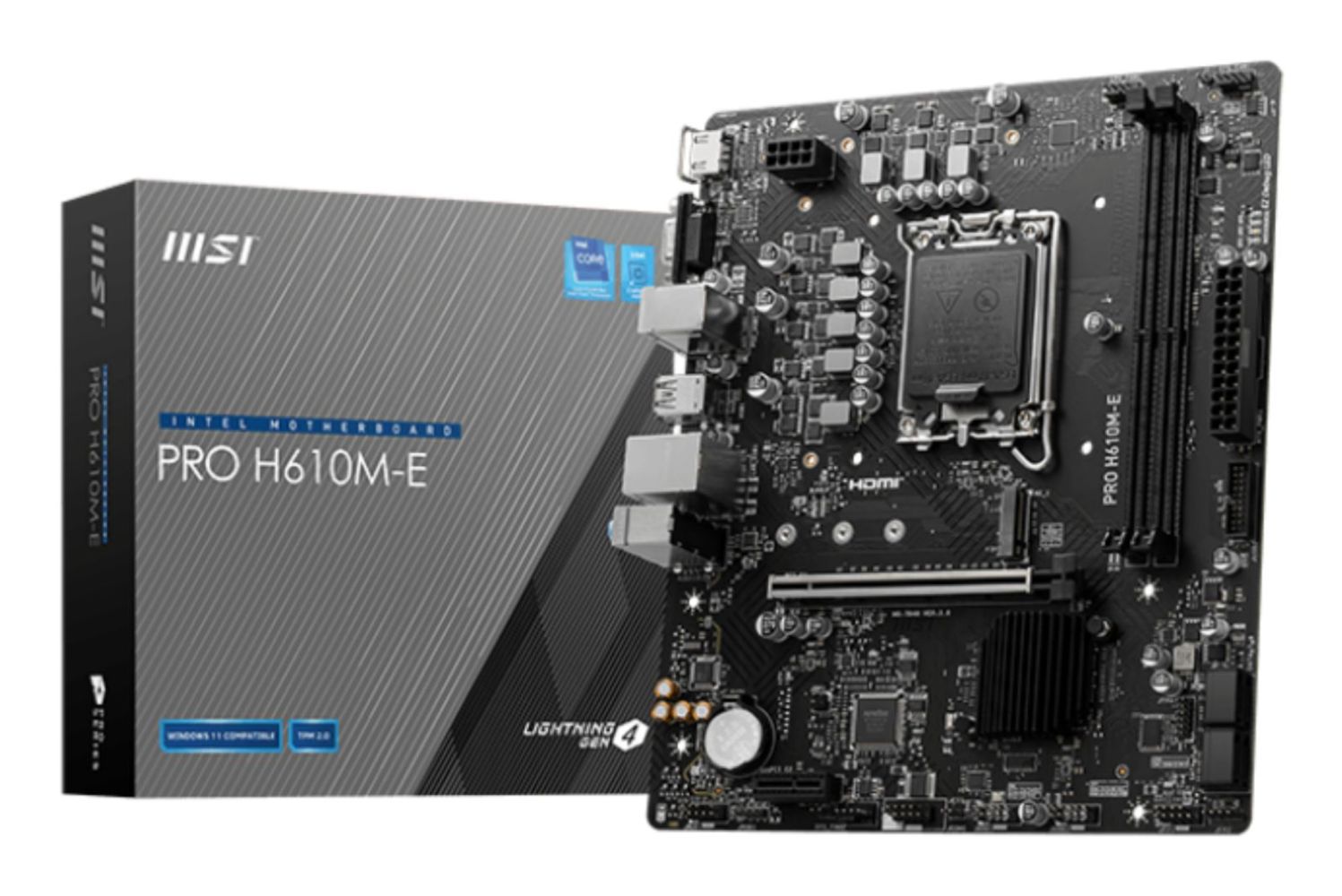

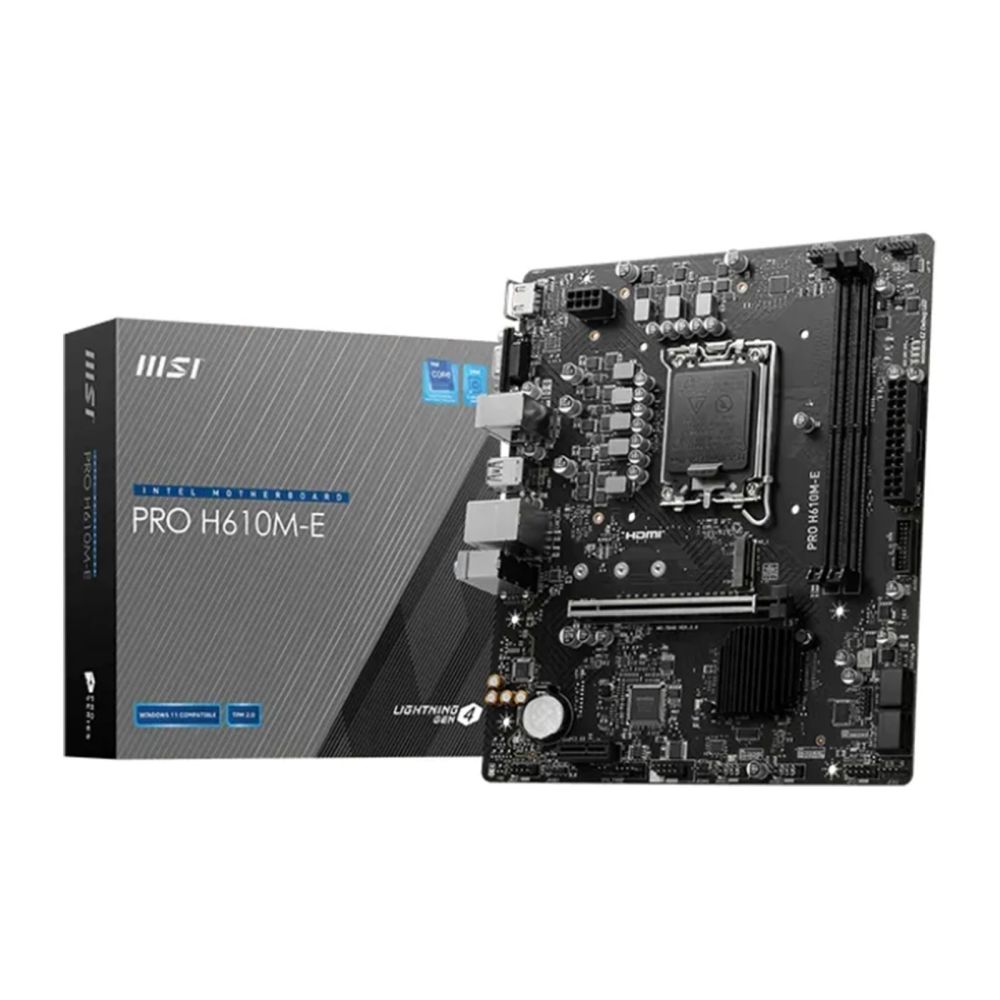

MSI H610M-E (H610,S1700,mATX,DDR5)
|
63,92 EUR |
|
|
( 76,06 EUR incl. VAT ) ≈ £53.50 | ≈ $71.53 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1611338 |
| Mfg Part No: | 7D48-019R |
| UPC/EAN: | 4711377125147 |
| Weight: | 0.71 kg |
Product information for MSI 7D48-019R:
Das MSI PRO H610M-E Mainboard ist speziell für wertorientierte Kreativunternehmen konzipiert und nutzt den Intel H610 Chipsatz (Unterstützung für 12. & 13. Gen Intel Core, LGA 1700). Es bietet einen primären PCIe 4.0 x16 Grafikkartenslot mit Steel Armor, optimierte DDR5-Speichermodule (5600MHz/MAX) und M.2 Gen3 Speicher. Für eine zuverlässige Stromversorgung der Intel Core Desktop-Prozessoren der 12. und 13. Generation verfügt das MSI PRO H610M-E über eine geschäftsfokussierte Micro-ATX-Plattform mit vollständig digitalem Power-Design VRM und Core Boost, ergänzt durch passive & aktive Frozr AI Kühlung.
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| Features | |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Cooling type | Active |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Internal I/O | |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 2 |
| Thunderbolt headers | 2 |
| Audio connector | |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 5600 MHz |
| Maximum internal memory | 96 GB |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wi-Fi | |
| Packaging content | |
| Cables included | SATA |
| Drivers included | |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
| Supported processor sockets | LGA 1700 |

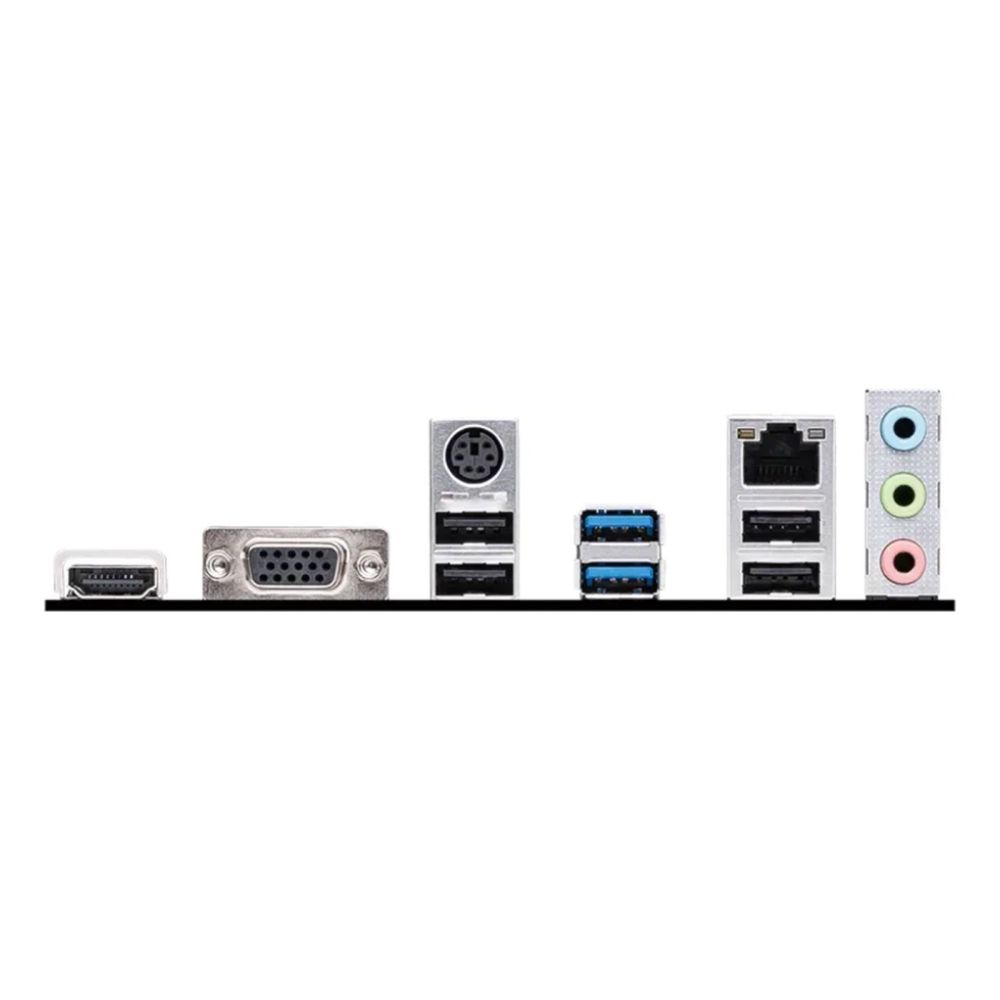

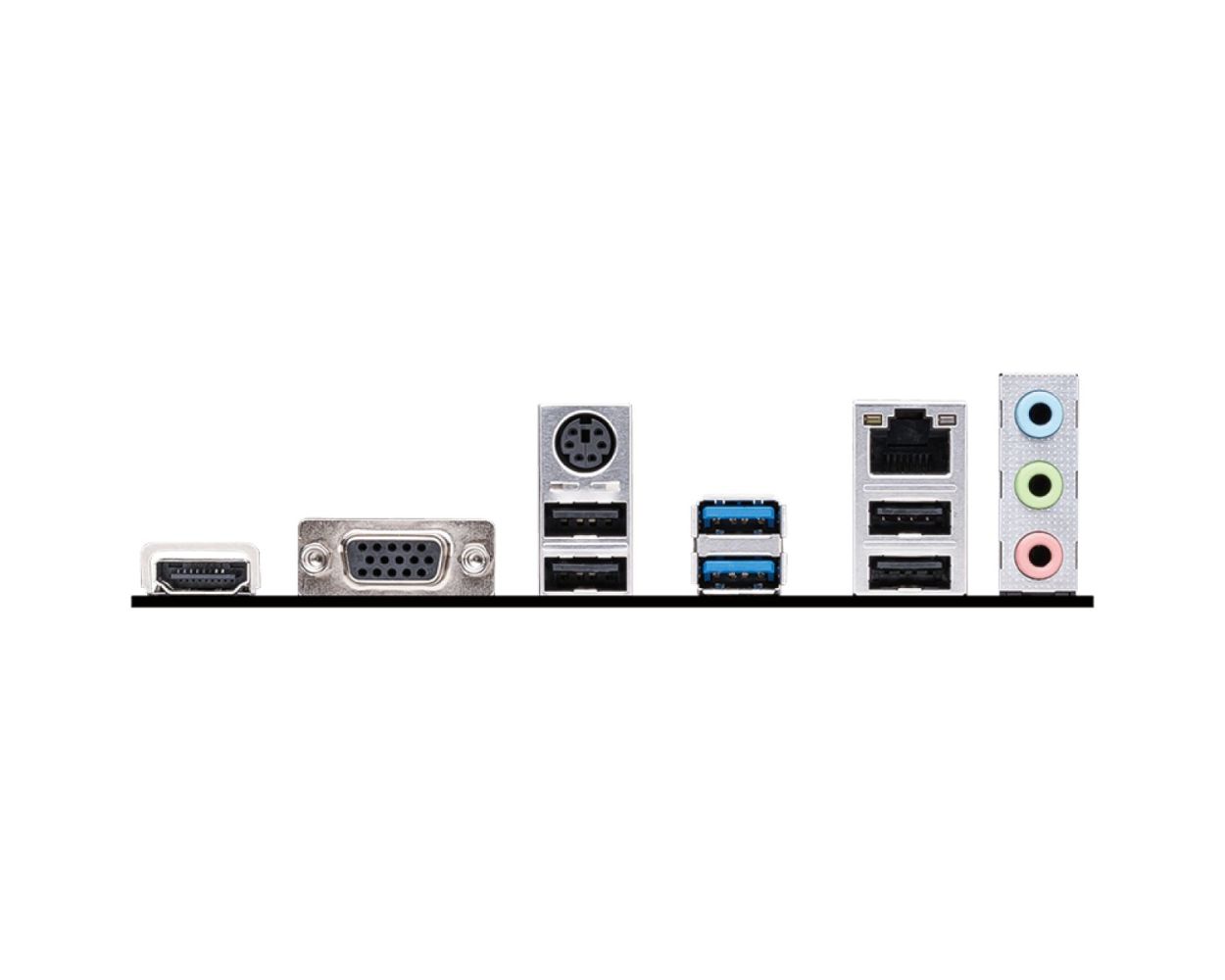

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone outputs | 2 |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 236.2 mm |
