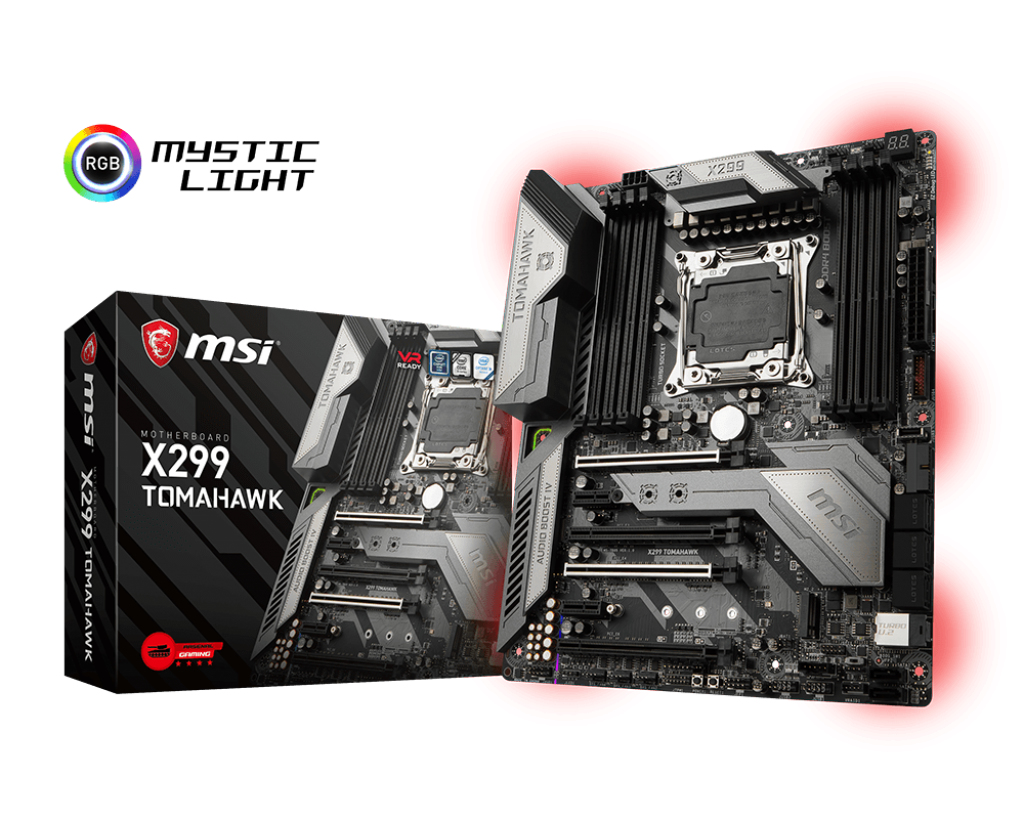

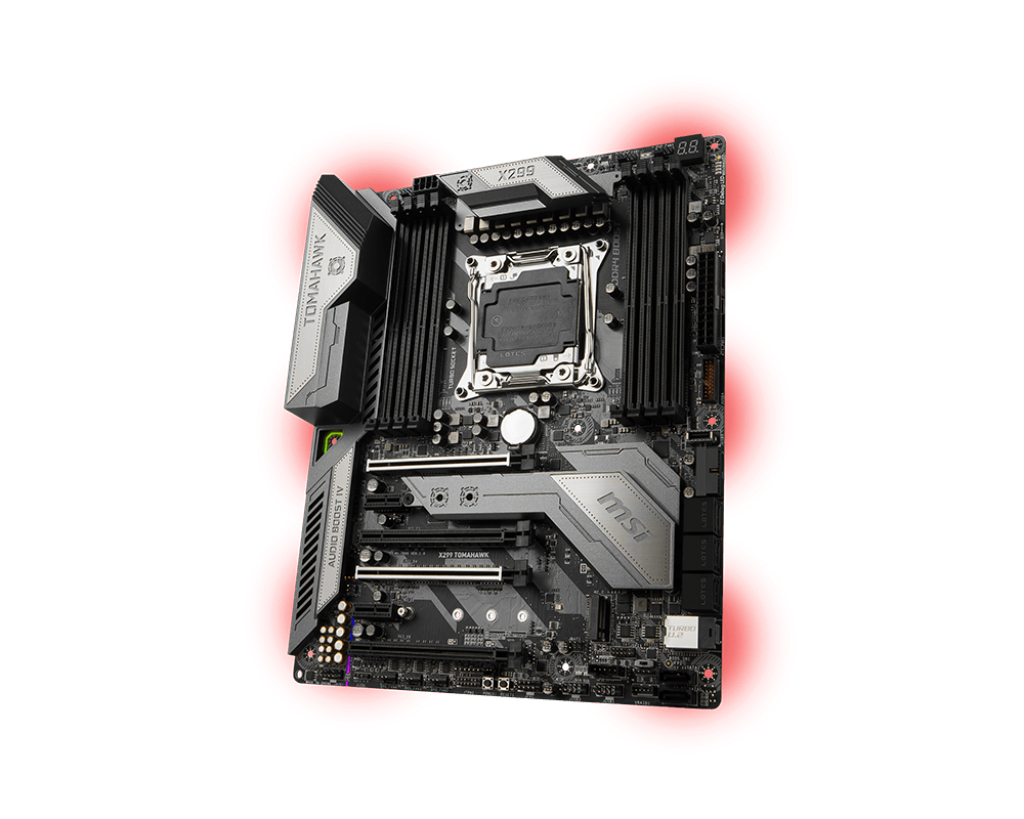

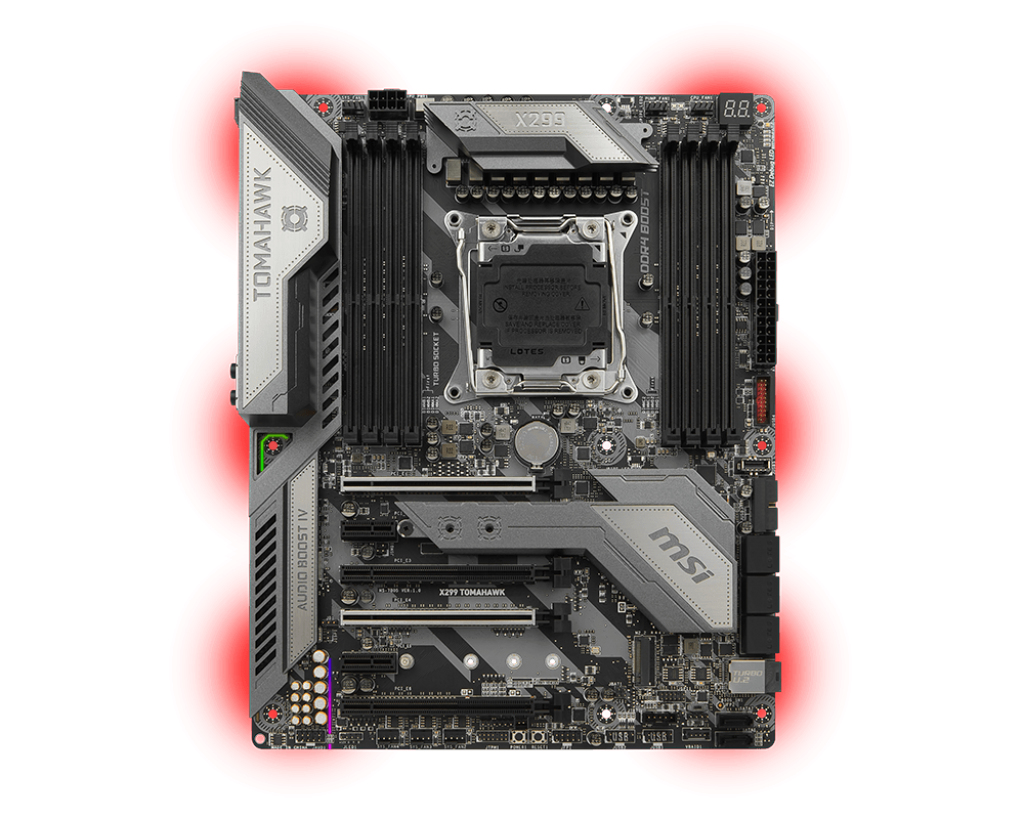

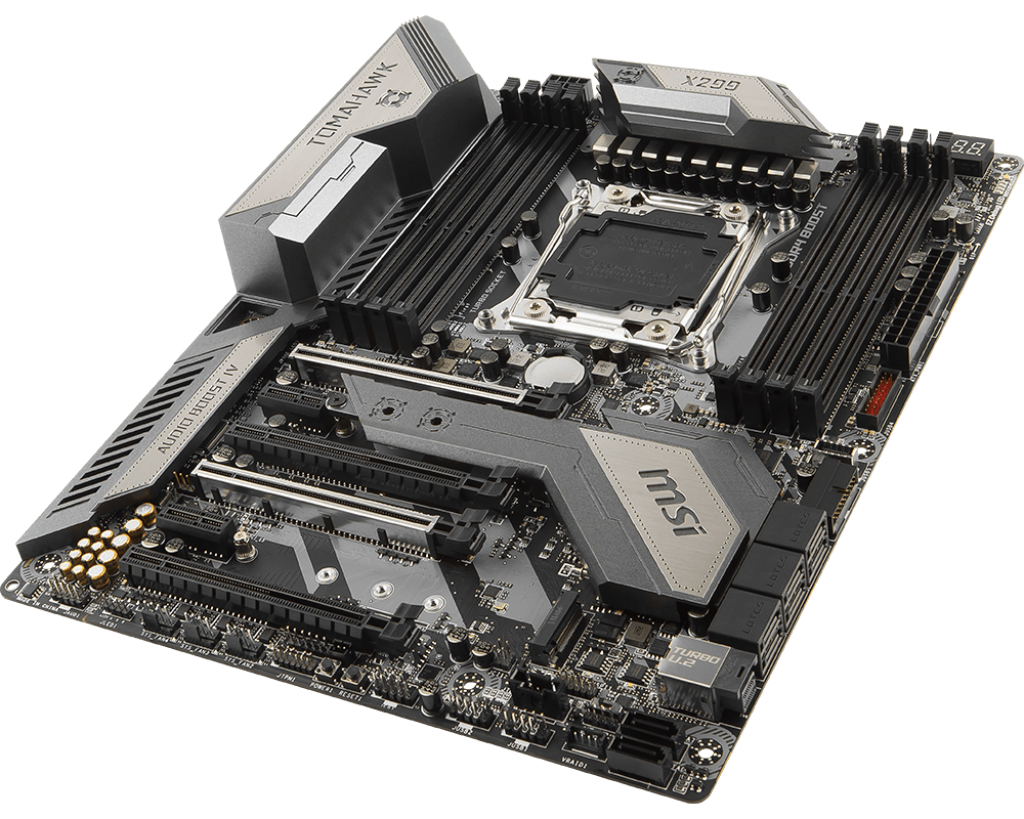

Mainboard MSI X299 TOMAHAWK (X299,S2066,ATX,DDR4)
|
215,03 EUR |
|
|
( 255,89 EUR incl. VAT ) ≈ £179.98 | ≈ $240.62 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22192935 |
| Mfg Part No: | 7B05-001R |
| UPC/EAN: | 4719072525729 |
| Weight: | 1.896 kg |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.0 |
| Clear CMOS jumper | |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 4 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | Intel® X299 |
| Audio chip | Realtek ALC1220 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Number of mounting holes | 9 |
| Graphics | |
| Parallel processing technology support | 3-Way CrossFireX, 3-Way SLI |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 8 |
| Number of chassis fan connectors | 4 |
| Thunderbolt headers | 1 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Chassis intrusion connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| Supported memory clock speeds | 2133,2400,2667,2800,2933,3000,3200,3333,3400,3466,3600,3733,3800,3866,4000,4133,4200,4266,4400,4500 MHz |
| Maximum internal memory | 128 GB |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I219-V |
| Ethernet LAN | |
| Other features | |
| Number of M.2 (E) slots | 1 |
| Quick installation guide | |
| Packaging content | |
| Cables included | SATA |
| Drivers included | |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 2066 (Socket R4) |
| Compatible processor series | Intel® Core™ i7, Intel® Core™ i7 Extreme Edition |
| Maximum number of SMP processors | 1 |
| Intel Core i3/i5/i7/i9 series | i7-3xxx, i7-4xxx, i7-5xxx, i7-6xxx, i7-7xxx |
| Processor special features | |
| Intel Extreme Memory Profile (XMP) | |

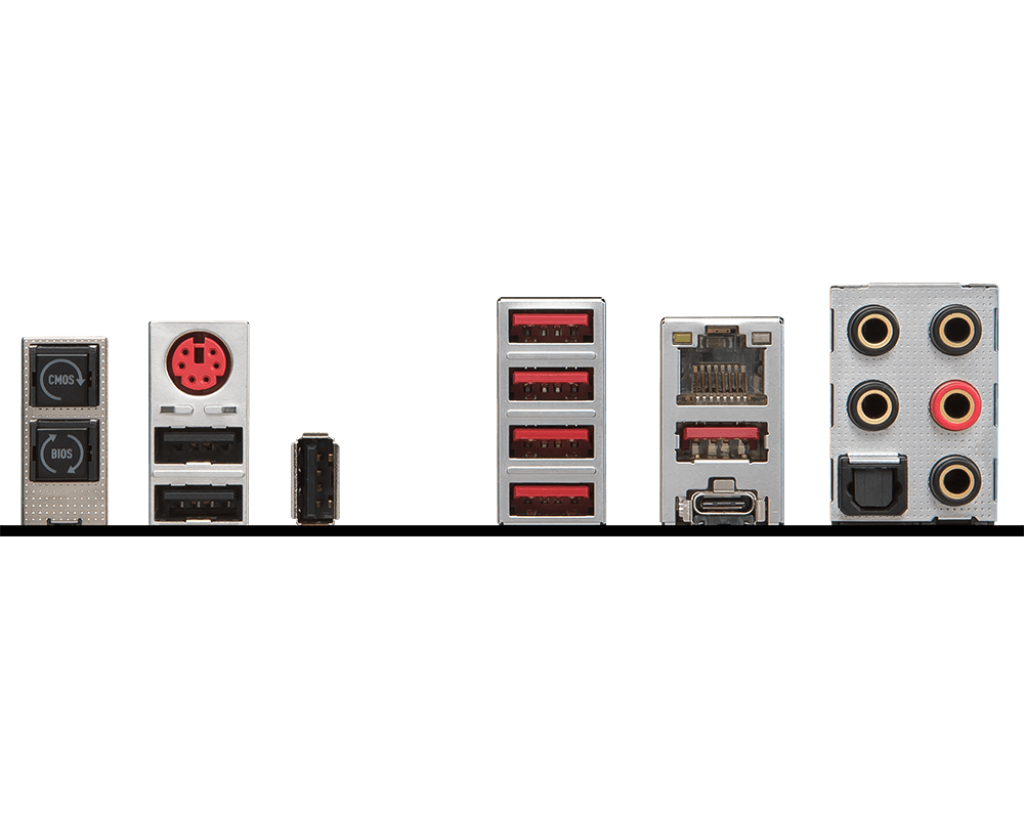

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| S/PDIF out port | |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
Questions & answers
What is the delivery time of Mainboard MSI X299 TOMAHAWK (X299,S2066,ATX,DDR4)?
The article Mainboard MSI X299 TOMAHAWK (X299,S2066,ATX,DDR4) is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of MSI 7B05-001R to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Mainboard MSI X299 TOMAHAWK (X299,S2066,ATX,DDR4) always at the best possible price. We can give you a discount of 2% on Mainboard MSI X299 TOMAHAWK (X299,S2066,ATX,DDR4) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
