MSI power supply MAG A650GL 650Watt
|
113,20 EUR |
|
|
( 134,71 EUR incl. VAT ) ≈ £94.75 | ≈ $126.67 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 06. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2074855 |
| Mfg Part No: | 306-7ZP8C11-CE0 |
| UPC/EAN: | 4711377084277 |
| Weight: | 0.123 kg |
Product information for MSI 306-7ZP8C11-CE0:
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Illumination | |
| On/off switch | |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |

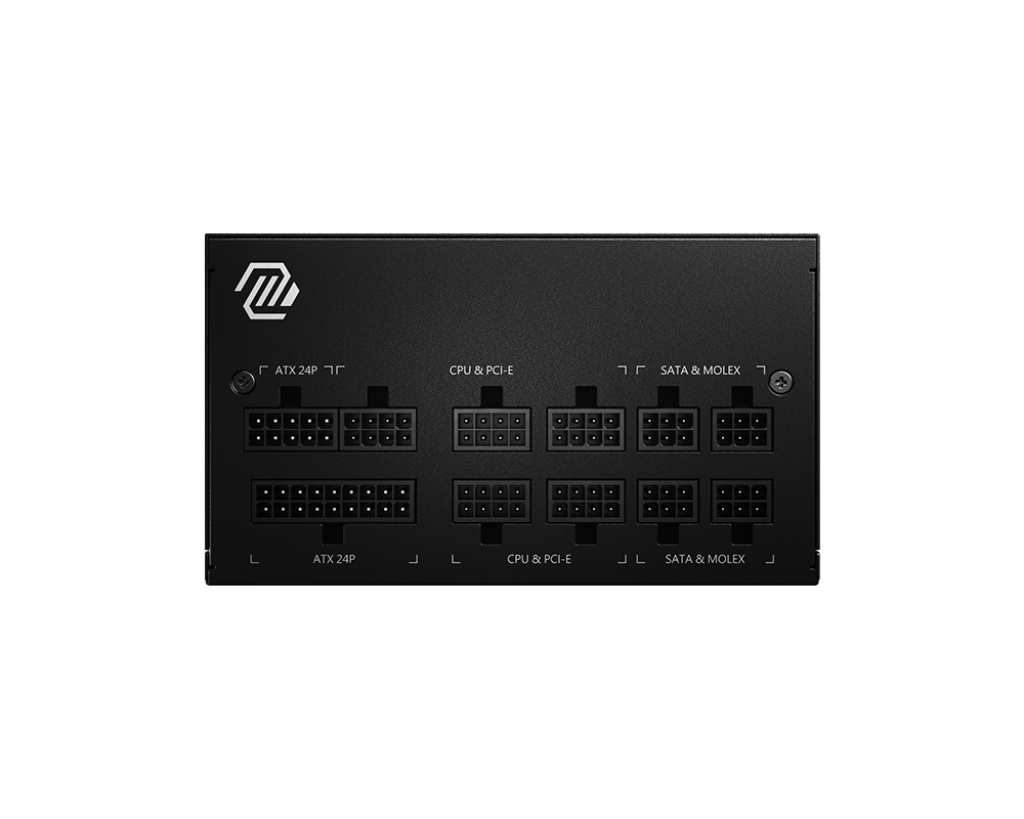

| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| Cabling type | Fully-Modular |
| EPS power connector (8-pin) | |
| EPS power connector (4+4 pin) | |
| CPU power connector (4+4 pin) | |
| ATX Power connector (24-pin) | |
| ATX power connector (20+4 pin) | |
| Floppy disk drive connector | |
| PCI Express connector | |
| Power | |
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 20 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
