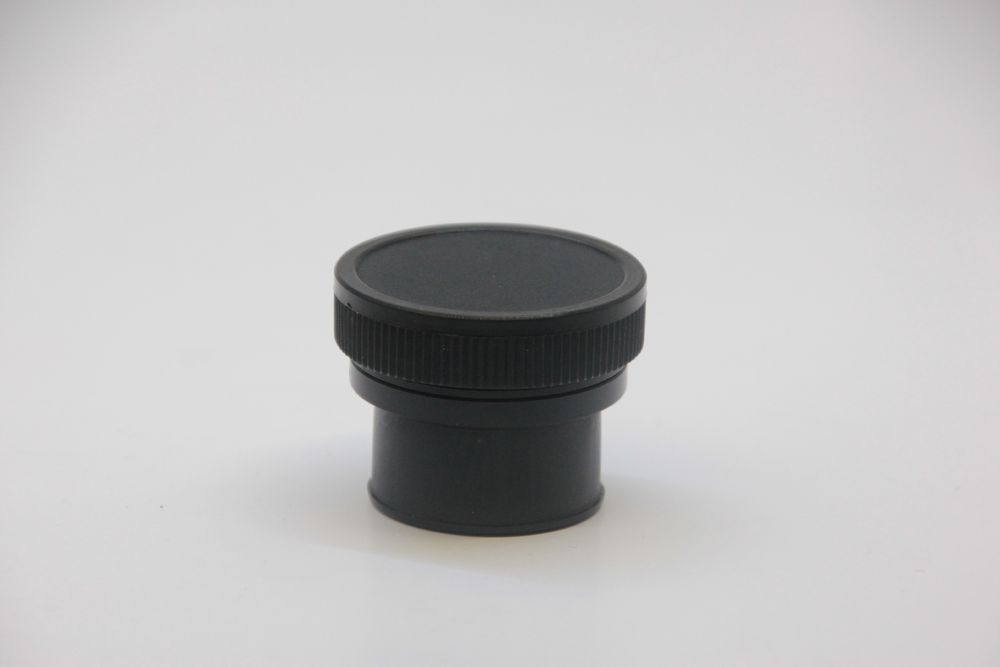

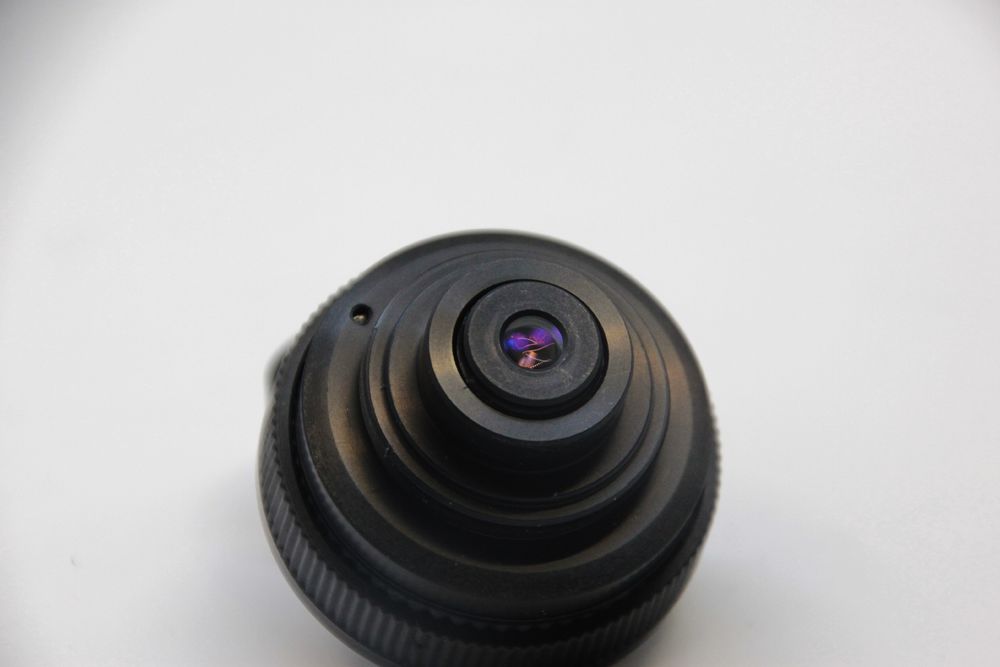

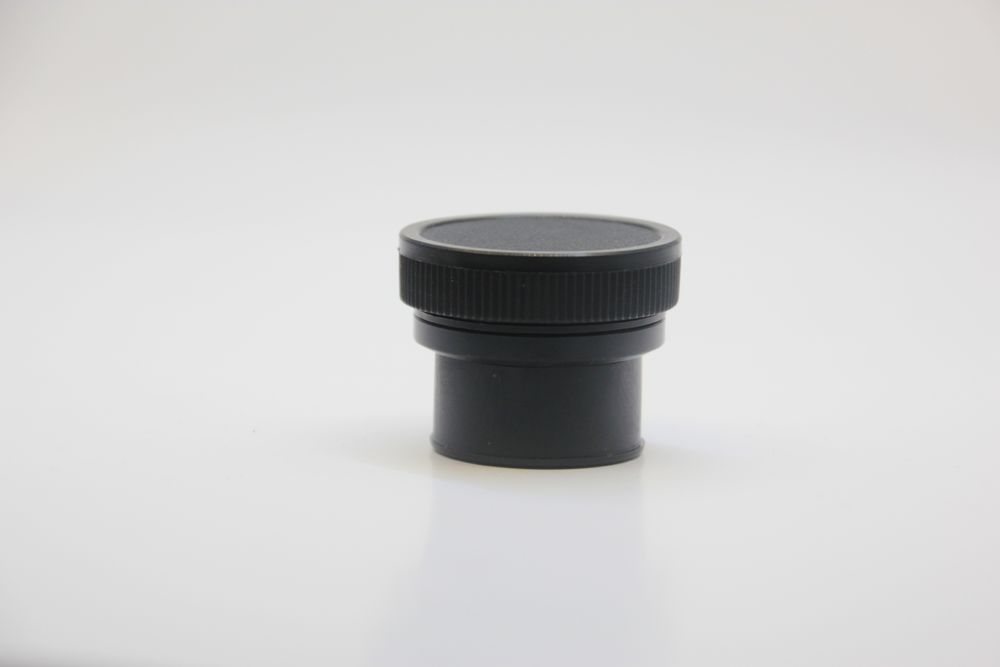

Monacor VSL-4022F CCTV lens with C-mount thread

Your rating:
Average rating
product review for Monacor VSL-4022F CCTV lens with C-mount thread
( 4.6 / 5 ) 20 ratings
Monacor VSL-4022F
This image may differ from the desired article.
Monacor VSL-4022FMonacor VSL-4022FMonacor VSL-4022F
20,16 EUR
( 23,99 EUR incl. VAT )
≈ £16.79  |  ≈ $22.12
plus delivery charges: 55,00 €
in stockinfo_outline
1x Monacor VSL-4022F CCTV lens with C-mount thread
Lieske Part No.:374818
Mfg Part No: VSL-4022F
UPC/EAN: 4007754115482
Weight:0.03 kg

Product information for Monacor VSL-4022F:

The Monacor VSL-4022F is a fixed-focus CCTV lens with C-Mount thread, specifically designed for use in surveillance cameras. It features a focal length of 4 mm and a fixed aperture with an f-number of 1:2.0, enabling uniform exposure under varying lighting conditions. The focus fine adjustment allows precise sharpness tuning to ensure optimal image quality. The lens is compact, with a diameter of 34 mm and a length of 25 mm, making it suitable for integration into standard camera housings. The minimum focusing distance is 0.25 m, making it suitable for close-up applications.

Applications
This lens is suitable for surveillance systems in indoor environments and protected outdoor areas where a fixed focal length is sufficient to capture a defined field of view. Due to the fixed aperture, it is particularly suitable for applications where lighting conditions are constant or exhibit only minor fluctuations. The combination of short focal length and fixed focus makes it ideal for small spaces such as reception areas, storage rooms, or entrances, where a wide field of view is required.

Functions and Features in Detail
The lens features a fixed aperture, maintaining a constant amount of light reaching the sensor. This reduces the need for automatic aperture control and ensures uniform exposure. The focus fine adjustment allows manual fine-tuning of sharpness to compensate for mounting errors or optical deviations. The 4 mm focal length provides a relatively wide field of view, which is advantageous for surveillance tasks in small rooms. The f-number of 1:2.0 is sufficient for good image quality in daylight and well-lit indoor environments.

Technical Explanation
The 4 mm focal length determines the field of view captured by the lens. The shorter the focal length, the wider the field of view. At 4 mm, a relatively large area is captured in the image, which is beneficial for surveillance tasks in small rooms. The fixed aperture (1:2.0) ensures that the amount of light reaching the image sensor remains constant, regardless of the setting. This is particularly useful when the camera does not have automatic aperture control. The focus fine adjustment allows manual optimization of sharpness, which is helpful during installation to ensure sharp images. The C-Mount thread is a standard in surveillance technology and allows mounting on cameras that support this connection.

Compatibility and Accessories
The lens is equipped with a C-Mount thread, which is widely used in CCTV technology. It can be mounted on cameras with a corresponding connection, designed for fixed-focus lenses. Use is exclusively in combination with a suitable surveillance camera featuring a C-Mount connection thread.

Mounting and Installation
Mounting is done via screw connection to the C-Mount thread of the camera. The focus fine adjustment is used after mounting to manually optimize sharpness. The minimum focusing distance of 0.25 m allows use in close proximity to the camera, for example, when monitoring counters or entrances. The compact design with a diameter of 34 mm and a length of 25 mm ensures discreet integration into existing camera housings.

Operational Advantages
The lens provides a simple and reliable solution for surveillance tasks where no variable focal length or automatic aperture control is required. The fixed aperture ensures constant exposure, and the focus fine adjustment enables precise sharpness optimization. The short focal length of 4 mm captures a wide field of view, making it ideal for small rooms. The use of a C-Mount thread ensures compatibility with a wide range of surveillance cameras.

General
Focus4 mm
Brightness settingFixed
Luminous intensity1:2,0
Shortest distance0,25 m
Mounting threadC
