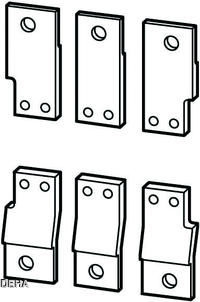

Optional accessories for the NZM circuit breaker series offer an extensive portfolio of application options for worldwide use. Installation is flexible and easy thanks to modular function groups. Notes: Conversion kit from N(ZM)12 to N(ZM)4. With the connection lugs of the replacement kit, all 3-pole NZM12 or N12 manufactured from 1983 onwards can be adapted to the connection dimensions of the NZM4 or N4. 4-pole basic devices and devices with withdrawable technology and remote drive are not interchangeable. Scope of the replacement kits N(ZM)4-XAS12.., 3 connection extensions on the blow-out side, 3 connection extensions on the ZM side, 2 mounting brackets, 4 fastening screws, 4 phase separators, 6 fastening screws, nuts and clamping washers. Drilling template in paper form in the assembly and maintenance instructions. The replacement kits are the same size as the N(ZM)12.. types, which correspond to the production status from 02/97 to today. Special feature: The N(ZM)12-800 was manufactured before 02/97 with 10mm instead of 8mm connection lugs. For these types, the customer must determine the year of manufacture of the device by measuring the thickness of the connection lug and order the N(ZM)4-XAS12-1250 replacement kit. Supplement for devices built before 1983! Here, the replacement kit for load break switches can be used in its entirety. For circuit breakers with a 'long' ZM version, the adapters only fit at the top! At the bottom, the devices are approx. 65mm longer and the lower connection is approx. 26mm deeper. As a result, the adapters for the bottom are too short and the height does not match. Can be used for: N4
Type: N4-XAS12-1000
Please note...
This article contains a copper surcharge of 15,84 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Questions & answers
What is the delivery time of Moeller 285609 EATON N4-XAS12-1000 adapter set N4/N12 800A/1000A ?
The article Moeller 285609 EATON N4-XAS12-1000 adapter set N4/N12 800A/1000A is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Moeller 285609 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Moeller 285609 EATON N4-XAS12-1000 adapter set N4/N12 800A/1000A always at the best possible price. We can give you a discount of 2% on
Moeller 285609 EATON N4-XAS12-1000 adapter set N4/N12 800A/1000A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Moeller 285609 EATON N4-XAS12-1000 adapter set N4/N12 800A/1000A we can offer you a price of 784,11 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
