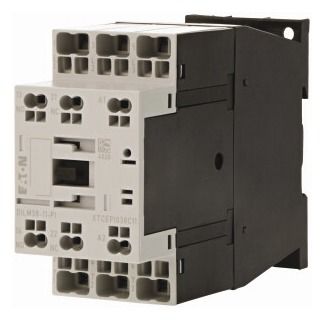

Moeller 199297 EATON DILM38-11(42V50HZ,48V60HZ)-PI power contactor 3p 380V 400V
|
199,68 EUR 208,03 EUR |
|||||||||||
|
incl. 1,20 EUR copper surcharge ( 237,62 EUR incl. VAT ) ≈ £171.13 | ≈ $226.84 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 2050512 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 199297 | ||||||||||
| UPC/EAN: | 4015081973811 | ||||||||||
| Weight: | 0.46 kg | ||||||||||
| Type: | DILM38-11(42V50HZ,48V60HZ)-PI | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Moeller 199297:
Power contactor for motors, power contactors up to 170 A, 3-pole, utilization category: AC-1: non-inductive or slightly inductive load, resistance furnaces, AC-3: squirrel cage motors: starting, switching off during operation, AC-4: squirrel cage motors: starting, countercurrent braking, reversing, inching, connection technology: push-in terminals, not suitable for motors of efficiency class IE3., number of poles: 3-pole, rated operating current AC-3 380 V 400 V: Ie= 38 A, rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 45 A, encapsulated: Ith= 36 A, rated operating current AC-1 conventional thermal current 1-pole open: Ith= 100 A, encapsulated: Ith= 90 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 11 kW, 380 V 400 V: P= 18.5 kW, 660 V 690 V: P= 21 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 4 kW, 380 V 400 V: P= 7 kW, 660 V 690 V: P= 10 kW, can be combined with auxiliary switch: DILM32-XHI.-PI, DILA-XHI(V).-PI, contact configuration S = normally open: 1 S, contact configuration Ö = normally closed: 1 Ö, switching elements in accordance with EN 50012., with mirror contact., current type AC/DC: Alternating current operation
Please note...
This article contains a copper surcharge of 1,20 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Questions & answers
What is the delivery time of Moeller 199297 EATON DILM38-11(42V50HZ,48V60HZ)-PI power contactor 3p 380V 400V ?
The article Moeller 199297 EATON DILM38-11(42V50HZ,48V60HZ)-PI power contactor 3p 380V 400V is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Moeller 199297 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Moeller 199297 EATON DILM38-11(42V50HZ,48V60HZ)-PI power contactor 3p 380V 400V always at the best possible price. We can give you a discount of 2% on Moeller 199297 EATON DILM38-11(42V50HZ,48V60HZ)-PI power contactor 3p 380V 400V if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Moeller 199297 EATON DILM38-11(42V50HZ,48V60HZ)-PI power contactor 3p 380V 400V we can offer you a price of 192,24 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Moeller 199297 EATON DILM38-11(42V50HZ,48V60HZ)-PI power contactor 3p 380V 400V
 |
Moeller 281222 EATON DILM32-XSPVL48 varistor circuit + LED f.DILM17 .. 32
Varistor protective circuit, accessories: protective circuit, voltage: Us 24 - 48 AC V, suitable for: DILM17 - DILM32, DILK12 - DILK25, DILL., DILMP32 - DILMP45 Lieske Part No.: 239166 Mfg Part No: 281222 Type: DILM32-XSPVL48 |
195,22 EUR 203,45 EUR
 ≈ £167.30 | ≈ $221.77
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 110955 EATON DILM32-XMAN test cube, f.DILA (C) DILM (C) 7 .32
Testing the system made easy. Switch the contactors without voltage. Lieske Part No.: 259906 Mfg Part No: 110955 Type: DILM32-XMAN |
9,69 EUR 10,10 EUR
≈ £8.30 | ≈ $11.01
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 110140 EATON DILA-XHIR11 auxiliary switch 1S1Ö construction electronics
Auxiliary switch module, with positively guided contacts, switching elements according to EN 50005, combinations of version E correspond to EN 50011 and are to be preferred., DC operated contactors ... Lieske Part No.: 368451 Mfg Part No: 110140 Type: DILA-XHIR11 |
138,57 EUR 143,90 EUR
≈ £118.75 | ≈ $157.42
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 281227 EATON DILM32-XVB connector f.DILA/M7..32,
Simply connect contactors to assemblies by clipping Lieske Part No.: 507518 Mfg Part No: 281227 Type: DILM32-XVB |
23,27 EUR 24,26 EUR
≈ £19.94 | ≈ $26.43
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 281202 EATON DILM32-XSPR48 RC snubber, f.DILM17 suppressor circuit .. 32
RC protective circuit, accessories: protective circuit, voltage: Us 24 - 48 AC V, suitable for: DILM17 - DILM32, DILK12 - DILK25, DILL., DILMP32 - DILMP45 Lieske Part No.: 539342 Mfg Part No: 281202 Type: DILM32-XSPR48 |
185,25 EUR 193,05 EUR
≈ £158.76 | ≈ $210.44
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 139580 EATON DILA-XHIR22 auxiliary contactors, EHS module 4p
Auxiliary switch module with positively guided contacts (excluding microswitches), switching elements in accordance with EN 50005, combinations of version E correspond to EN 50011 and are to be ... Lieske Part No.: 610313 Mfg Part No: 139580 Type: DILA-XHIR22 |
232,54 EUR 243,05 EUR
≈ £199.29 | ≈ $264.17
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 199322 DILA-XHIV22-PI Hilfsschalterbaustein 4p Ith=16A
Hilfsschalterbaustein, Funktion: für Standardanwendungen, 4-polig, Anschlusstechnik: Push-in-Klemmen, Ith 16 A, Bemessungsbetriebsstrom AC-15 220 V 230 V 240 V: Ie= 4 A, Bemessungsbetriebsstrom ... Lieske Part No.: 640022 Mfg Part No: 199322 Type: DILA-XHIV22-PI |
200,18 EUR 208,05 EUR
≈ £171.55 | ≈ $227.40
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 281212 EATON DILM32-XSPV48 Varistor circuit for DILM17..32
Varistor protective circuit, accessories: protective circuit, voltage: Us 24 - 48 AC V, suitable for: DILM17 - DILM32, DILK12 - DILK25, DILL., DILMP32 - DILMP45 Lieske Part No.: 663872 Mfg Part No: 281212 Type: DILM32-XSPV48 |
159,50 EUR 166,22 EUR
≈ £136.69 | ≈ $181.19
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
|
|
Moeller Electric 199309 EATON DILM32-XHI11-PI auxiliary switch module 2p Ith=16A
Auxiliary switch module, with positively guided contacts, for standard applications, surface-mounted auxiliary switch, front mounting, 2-pole, push-in terminals, conventional thermal current 1-pole, ... Lieske Part No.: 673436 Mfg Part No: 199309 Type: DILM32-XHI11-PI |
69,90 EUR 72,52 EUR
≈ £59.90 | ≈ $79.41
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
|
|
Moeller Electric 199314 DILA-XHI11-PI Hilfsschalterbaustein 2p Ith=16A
Hilfsschalterbaustein, mit zwangsgeführten Kontakten, Funktion: für Standardanwendungen, 2-polig, Anschlusstechnik: Push-in-Klemmen, Ith 16 A, Bemessungsbetriebsstrom AC-15 220 V 230 V 240 V: Ie= ... Lieske Part No.: 834439 Mfg Part No: 199314 Type: DILA-XHI11-PI |
70,33 EUR 73,06 EUR
≈ £60.27 | ≈ $79.89
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 281197 EATON DILM32 XMV-locking mechanical, f.DILM17 .. 32
Locking, Product range: Additional equipment, Mechanical locking, suitable for: DILM17 - DILM38, DILMP32 - DILMP45, DILMF8 - DILMF32 Lieske Part No.: 994166 Mfg Part No: 281197 Type: DILM32-XMV |
11,79 EUR 12,29 EUR
≈ £10.10 | ≈ $13.39
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
|
|
Moeller 199313 DILA-XHI20-PI Hilfsschalterbaustein 2p Ith=16A
Hilfsschalterbaustein, mit zwangsgeführten Kontakten, Funktion: für Standardanwendungen, 2-polig, Anschlusstechnik: Push-in-Klemmen, Ith 16 A, Bemessungsbetriebsstrom AC-15 220 V 230 V 240 V: Ie= ... Lieske Part No.: 1296557 Mfg Part No: 199313 Type: DILA-XHI20-PI |
70,33 EUR 73,06 EUR
≈ £60.27 | ≈ $79.89
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 199318 EATON DILA-XHI31-PI auxiliary switch module 4p Ith=16A
Auxiliary switch module, with positively guided contacts, for standard applications, surface-mounted auxiliary switch, front mounting, 4-pole, push-in terminals, conventional thermal current 1-pole, ... Lieske Part No.: 2036220 Mfg Part No: 199318 Type: DILA-XHI31-PI |
115,96 EUR 120,29 EUR
≈ £99.38 | ≈ $131.73
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 199319 EATON DILA-XHI22-PI auxiliary switch module 4p Ith=16A
Auxiliary switch module, with positively guided contacts, for standard applications, surface-mounted auxiliary switch, front mounting, 4-pole, push-in terminals, conventional thermal current 1-pole, ... Lieske Part No.: 2050529 Mfg Part No: 199319 Type: DILA-XHI22-PI |
23,19 EUR 24,06 EUR
≈ £19.87 | ≈ $26.34
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Moeller 199311 EATON DILM32-XHI22-PI auxiliary switch module 4p Ith=16A
Auxiliary switch module, with positively guided contacts, for standard applications, surface-mounted auxiliary switch, front mounting, 4-pole, push-in terminals, conventional thermal current 1-pole, ... Lieske Part No.: 2050530 Mfg Part No: 199311 Type: DILM32-XHI22-PI |
115,96 EUR 120,29 EUR
≈ £99.38 | ≈ $131.73
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 199312 EATON DILM32-XHI31-PI auxiliary switch module 4p Ith=16A
Auxiliary switch module, with positively guided contacts, for standard applications, surface-mounted auxiliary switch, front mounting, 4-pole, push-in terminals, conventional thermal current 1-pole, ... Lieske Part No.: 2050531 Mfg Part No: 199312 Type: DILM32-XHI31-PI |
115,96 EUR 120,29 EUR
≈ £99.38 | ≈ $131.73
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 199321 EATON DILA-XHI04-PI auxiliary switch module 4p Ith=16A
Auxiliary switch module, with positively guided contacts, for standard applications, surface-mounted auxiliary switch, front mounting, 4-pole, push-in terminals, conventional thermal current 1-pole, ... Lieske Part No.: 2050532 Mfg Part No: 199321 Type: DILA-XHI04-PI |
115,96 EUR 120,29 EUR
≈ £99.38 | ≈ $131.73
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Moeller 199317 EATON DILA-XHI40-PI auxiliary switch module 4p Ith=16A
Auxiliary switch module, with positively guided contacts, for standard applications, surface-mounted auxiliary switch, front mounting, 4-pole, push-in terminals, conventional thermal current 1-pole, ... Lieske Part No.: 2131831 Mfg Part No: 199317 Type: DILA-XHI40-PI |
23,19 EUR 24,06 EUR
≈ £19.87 | ≈ $26.34
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
|
