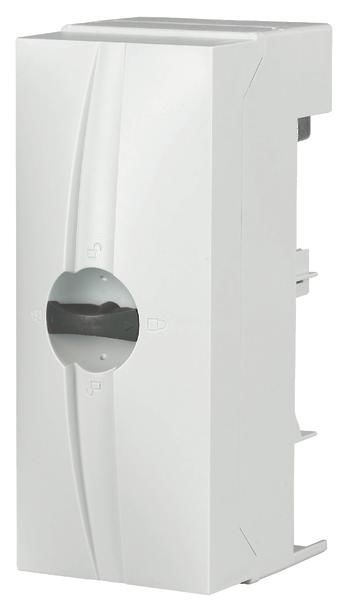

Moeller 107184 EATON BBA-TP3/120 connection terminal plate 35-120qmm 81mm
|
52,62 EUR 54,21 EUR |
|||||||||||
|
incl. 0,60 EUR copper surcharge ( 62,62 EUR incl. VAT ) ≈ £45.10 | ≈ $59.78 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 621439 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 107184 | ||||||||||
| UPC/EAN: | 4015081069477 | ||||||||||
| Weight: | 0.542 kg | ||||||||||
| Type: | BBA-TP3/120 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Moeller 107184:
Connection terminal plate, 60 mm system, poles=3, screw connection technology, connection cross-section=35 to 120 mm² or AWG2-MCM250 or 10x16x0.8, Ie=440A, width=81mm, can be used for rail 12x5/10 to 30x5/10 and double T-profile, silicone-free, chlorine-free, self-extinguishing according to UL 94, tracking resistance CTI 200, temperature resistant up to 120°C, terminals can be removed for connecting uncut conductors, terminal space WxH= 15x10mm, looping through is possible
Please note...
This article contains a copper surcharge of 0,60 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Questions & answers
What is the delivery time of Moeller 107184 EATON BBA-TP3/120 connection terminal plate 35-120qmm 81mm ?
The article Moeller 107184 EATON BBA-TP3/120 connection terminal plate 35-120qmm 81mm is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Moeller 107184 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Moeller 107184 EATON BBA-TP3/120 connection terminal plate 35-120qmm 81mm always at the best possible price. We can give you a discount of 2% on Moeller 107184 EATON BBA-TP3/120 connection terminal plate 35-120qmm 81mm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Moeller 107184 EATON BBA-TP3/120 connection terminal plate 35-120qmm 81mm we can offer you a price of 51,06 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
