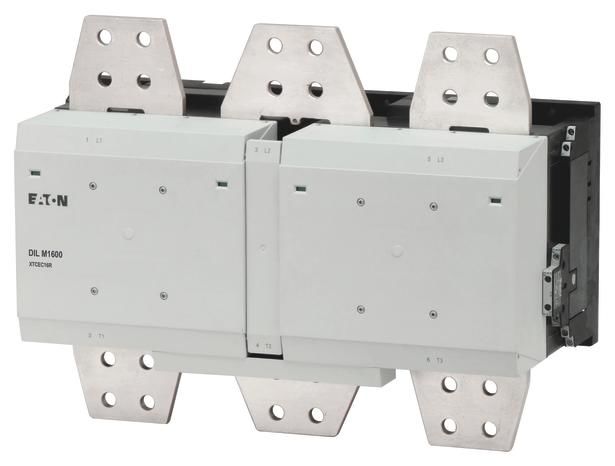

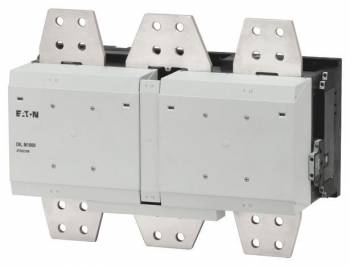

Moeller 106727 EATON DILM1600/22(RAW250) power contactor AC3 1600A
|
28.109,56 EUR 29.137,22 EUR |
|||||||||||
|
incl. 149,71 EUR copper surcharge ( 33.450,38 EUR incl. VAT ) ≈ £24,118.00 | ≈ $31,988.68 plus delivery charges |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 639896 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 106727 | ||||||||||
| UPC/EAN: | 4015081064946 | ||||||||||
| Weight: | 44.139 kg | ||||||||||
| Type: | DILM1600/22(RAW250) | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Moeller 106727:
Power contactor, Application: Power contactor for motors, comfort devices greater than 170 A, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, countercurrent braking, reversing, inching, Connection technology: screw connection, Rated operating current AC-3 380 V 400 V: Ie= 1600 A, Rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 2200 A, Rated operating current AC-1 conventional thermal current 1-pole open: Ith= 4500 A, Max. Rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 500 kW, 380 V 400 V: P= 900 kW, 660 V 690 V: P= 1600 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 430 kW, 380 V 400 V: P= 750 kW, 660 V 690 V: P= 1300 kW, can be combined with auxiliary switch: DILM820-XHI., Contact configuration S = normally open: 2 S, Contact configuration Ö = normally closed: 2 Ö, Notes: Integrated protective circuit in the control electronics., 660 V, 690 V or 1000 V: do not reverse directly., Current type AC/DC: alternating current operation
Please note...
This article contains a copper surcharge of 149,71 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Questions & answers
What is the delivery time of Moeller 106727 EATON DILM1600/22(RAW250) power contactor AC3 1600A ?
The article Moeller 106727 EATON DILM1600/22(RAW250) power contactor AC3 1600A is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Moeller 106727 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Moeller 106727 EATON DILM1600/22(RAW250) power contactor AC3 1600A always at the best possible price. We can give you a discount of 2% on Moeller 106727 EATON DILM1600/22(RAW250) power contactor AC3 1600A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Moeller 106727 EATON DILM1600/22(RAW250) power contactor AC3 1600A we can offer you a price of 27.061,07 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
