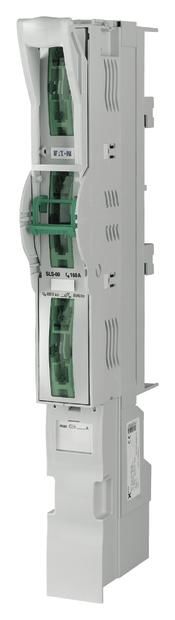

Moeller 106210 EATON NH-SLS-00/160 fuse, circuit breaker content_copy

NH fuse load switch strip, delivered without NH fuse inserts, vertical and horizontal installation position possible, systematic switch strip - the device is universally suitable for cable outlet at the top/bottom, shatter-proof, flexible connection space, fully insulated, touch-safe according to IEC/EN 60947 or BGV A3, laterally offset ventilation slots to prevent arcing to neighboring switch strips, the base body is made of glass fiber reinforced, high temperature resistant, self-extinguishing and halogen-free plastic, the one-piece contact system is corrosion-resistant and twist-proof, the copper contacts are nickel-plated, the switch cover is made of glass fiber reinforced, self-extinguishing and halogen-free plastic, the switch cover has large viewing windows that allow the labeling and indicator of the NH fuse inserts to be seen, the sliding viewing windows are equipped with test holes, the switch cover can be stored (parking position), including Connection compartment cover, screw or drill-free installation with claw terminals, scope of delivery: NH-SLS size 00: with clamps/screw set for connection, NH-SLS sizes 1, 2, 3: without claw terminals, with screws for connection, busbar installation: NH-SLS size 00: 100mm rail center distance/optional with adapters for 185mm, screw installation, NH-SLS sizes 1, 2, 3: 185mm rail center distance, screw or drill-free installation with claw terminals (bottom 106224, top 106225), note: connection at the top or bottom
