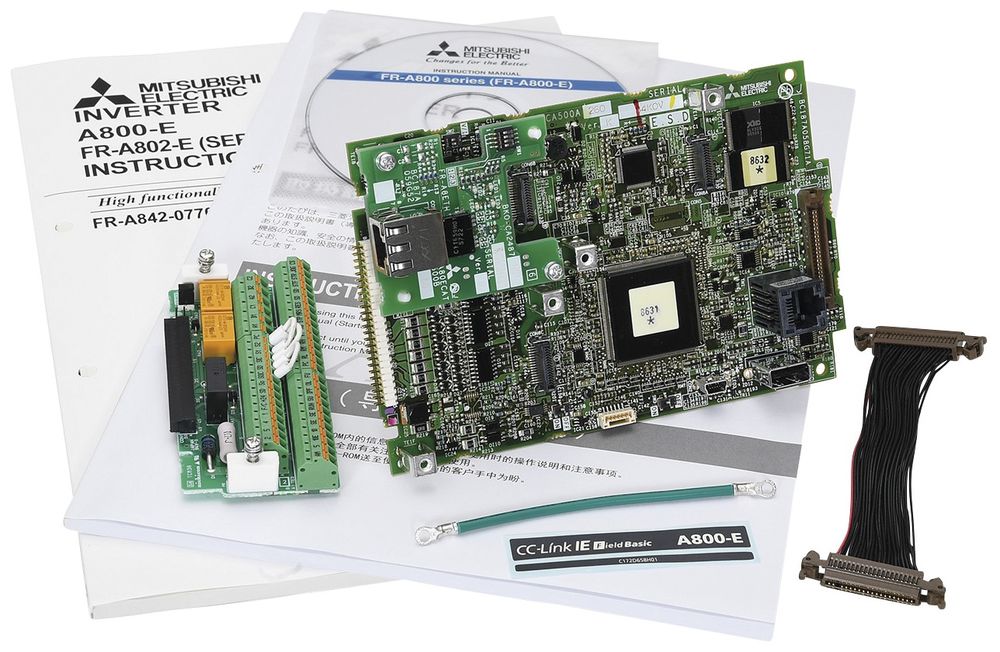

Mitsubishi 307203 FR-CA80-02-E2-60 control unit for FR-A840-02160 to 12120
|
1.188,45 EUR 1.238,49 EUR |
|||||||||||
|
( 1.414,26 EUR incl. VAT ) ≈ £989.98 | ≈ $1,303.73 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1778541 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 307203 | ||||||||||
| Weight: | 1.523 kg | ||||||||||
| Type: | FR-CA80-02-E2-60 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Mitsubishi 307203:
Applications
The control unit is used in industrial automation environments where frequency converters must be controlled and monitored via Ethernet networks. It is suitable for applications in the manufacturing industry, packaging technology, machine building, and other fields where central control of multiple drives over a network is required. The unit enables communication with higher-level control systems, such as SCADA systems or PLCs, connected via Ethernet.
Functions and Equipment in Detail
The FR-CA80-02-E2-60 is an Ethernet-based control unit specifically developed for FR-A840 frequency converters. It enables communication via the Ethernet protocol, allowing parameters of the frequency converter to be read, set, and monitored. The unit supports remote control of drive functions, including start, stop, speed control, and operational status monitoring. Communication takes place via an integrated Ethernet interface.
Technology Explained Simply
The control unit operates as a network module directly connected to the frequency converter, making its functions accessible over an Ethernet network. Communication occurs via standardized industrial protocols, enabling control of the frequency converters from a central control system. The unit is not designed for direct operation without a connected frequency converter, but serves exclusively as an interface. The Ethernet interface enables bidirectional data transmission, allowing commands to be sent to the converter and status messages and measurement values to be received from it.
Compatibility and Accessories
The control unit FR-CA80-02-E2-60 is specifically designed for frequency converters of the FR-A840 series with model numbers FR-A840-02160 to FR-A840-12120. It is not compatible with other frequency converter series or models from Mitsubishi. The unit is used as an addition to an already installed frequency converter and requires its physical presence as well as a corresponding network connection.
Mounting and Installation
Mounting is performed by directly connecting the control unit to the frequency converter, with exact connection points and wiring steps described in the technical documentation of the frequency converter. The unit is typically mounted at a suitable location in the enclosure, ensuring sufficient cooling and accessibility. The network connection is made via an Ethernet cable connected to the appropriate interface on the control unit.
Operational Advantages
Using the control unit enables central control and monitoring of multiple frequency converters over an Ethernet network. This reduces the need for local control panels and simplifies maintenance and diagnostics. Remote control via Ethernet allows flexible integration into existing automation systems and supports the digitalization of production processes. The unit is designed for use in industrial environments and provides a reliable communication interface for drive control.
| General | |
| Manufacturer | Mitsubishi |
| Compatibility | frequency converter FR-A840-02160 to FR-A840-12120 |
| Interface | Ethernet |
| Function | Control unit for frequency converters |
Questions & answers
What is the delivery time of Mitsubishi 307203 FR-CA80-02-E2-60 control unit for FR-A840-02160 to 12120 ?
The article Mitsubishi 307203 FR-CA80-02-E2-60 control unit for FR-A840-02160 to 12120 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Mitsubishi 307203 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Mitsubishi 307203 FR-CA80-02-E2-60 control unit for FR-A840-02160 to 12120 always at the best possible price. We can give you a discount of 2% on Mitsubishi 307203 FR-CA80-02-E2-60 control unit for FR-A840-02160 to 12120 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Mitsubishi 307203 FR-CA80-02-E2-60 control unit for FR-A840-02160 to 12120 we can offer you a price of 1.170,62 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
