Mitsubishi 266163 Q06UDVCPU PLC iQ CPU module 4096EA 1.9 Ns:/log 60k steps

Your rating:
Average rating
product review for Mitsubishi 266163 Q06UDVCPU PLC iQ CPU module 4096EA 1.9 Ns:/log 60k steps
( 4.1 / 5 ) 8 ratings

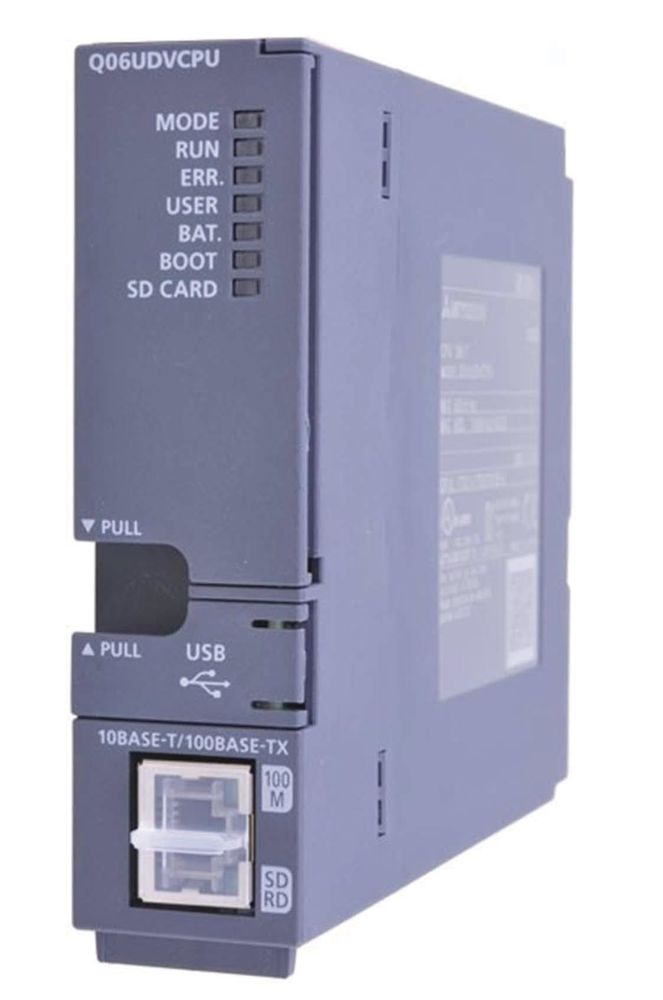

Mitsubishi 266163
This image may differ from the desired article.
2.810,53 EUR 2.932,73 EUR
( 3.344,53 EUR incl. VAT )
≈ £2,352.41  |  ≈ $3,088.77
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Mitsubishi 266163 Q06UDVCPU PLC iQ CPU module 4096EA 1.9 Ns:/log 60k steps
Lieske Part No.:1328419
Mfg Part No: 266163
Weight:0.267 kg
Type:Q06UDVCPU

Product information for Mitsubishi 266163:

The Mitsubishi Q06UDVCPU is a CPU module for the SPS system Q iQ, specifically designed for use in industrial automation systems. It serves as the central control unit in decentralized control systems and enables the processing of complex logical instructions at high speed. The module is part of the SystemQ iQ family and is used in applications requiring reliable, powerful, and expandable control, for example in manufacturing automation, packaging industry, or machine control.

Applications

The Q06UDVCPU is designed for applications requiring high processing speed and a large number of addressable inputs and outputs. It is particularly suitable for medium to large automation systems, where the CPU functions as the central control unit. The integrated interfaces enable flexible integration into existing networks and communication with other devices, such as HMI systems, sensors, or other SPS modules. Typical use is in production plants where a fast response to inputs is necessary.

Functions and Equipment in Detail

The module features a processing speed of 1.9 nanoseconds per logical instruction, enabling fast execution of control programs. The maximum number of individual addresses is 4096 EA, allowing control of a large number of inputs and outputs. The CPU supports up to 60,000 programming steps, enabling implementation of complex control logics. The integrated interfaces include Ethernet, USB, and SD, allowing flexible communication and programming. The Ethernet interface enables integration into industrial networks, while USB and SD are used for programming and data transfer.

Technology Explained Simply

The processing speed of 1.9 ns/log. instr. means the module executes logical commands very quickly, which is important for real-time applications. The maximum number of individual addresses of 4096 EA allows control of a large number of external devices, such as sensors, actuators, or relays. Support for 60,000 steps enables processing of complex control programs. The integrated interfaces – Ethernet, USB, and SD – offer various options for communication and programming. Ethernet is suitable for network integration, USB for direct connection to a PC, and SD for storing programs or configurations.

The CPU is part of the SystemQ iQ system, which is based on a modular architecture. This allows flexible expansion of the control system by adding further modules, such as I/O modules, communication modules, or memory extensions. The modular architecture ensures a scalable and maintainable system solution.

Compatibility and Accessories

The Q06UDVCPU is compatible with the Mitsubishi SystemQ iQ module system and can be combined with various I/O modules, communication modules, and extensions. The use of Ethernet enables communication with other Mitsubishi systems or with external devices via industrial networks. The USB and SD interfaces support programming and data transfer, with the SD card also usable for storing programs or configurations. The CPU is designed for industrial environments and requires no additional adapters or converters for the mentioned interfaces.

Mounting and Installation

The module is installed in a standard SPS enclosure or in a modular system designed for the SystemQ iQ system. Mounting is done by inserting the module into the corresponding socket, with electrical connections made via the integrated interfaces. Installation does not require special tools, but correct wiring and configuration are necessary to fully utilize the functions. The CPU can be directly connected to a programming device or PC via the integrated interfaces to load or modify the control program.

Advantages in Operation

The high processing speed of 1.9 ns/log. instr. ensures fast response to inputs, which is crucial for real-time applications. The large number of individual addresses of 4096 EA enables control of complex plants with many inputs and outputs. Support for 60,000 steps provides sufficient programming capacity for demanding control logics. The integrated interfaces – Ethernet, USB, SD – offer diverse options for communication and programming, facilitating system maintenance and adaptation. The modular architecture of the SystemQ iQ system allows flexible expansion and adaptation to future requirements.

General
Processing speed1,9 ns/log. Anw.
Maximum number of individual addresses4096 EA
InterfacesEthernet, USB, SD
Product typePLC CPU module
SystemSystemQ iQ


Questions & answers

What is the delivery time of Mitsubishi 266163 Q06UDVCPU PLC iQ CPU module 4096EA 1.9 Ns:/log 60k steps ?

The article Mitsubishi 266163 Q06UDVCPU PLC iQ CPU module 4096EA 1.9 Ns:/log 60k steps is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Mitsubishi 266163 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Mitsubishi 266163 Q06UDVCPU PLC iQ CPU module 4096EA 1.9 Ns:/log 60k steps always at the best possible price. We can give you a discount of 2% on Mitsubishi 266163 Q06UDVCPU PLC iQ CPU module 4096EA 1.9 Ns:/log 60k steps if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
