Mitsubishi 165374 QJ71PB92V PLC system Q Profibus DP master module DP-V1

Your rating:
Average rating
product review for Mitsubishi 165374 QJ71PB92V PLC system Q Profibus DP master module DP-V1
( 4.6 / 5 ) 14 ratings
Mitsubishi 165374

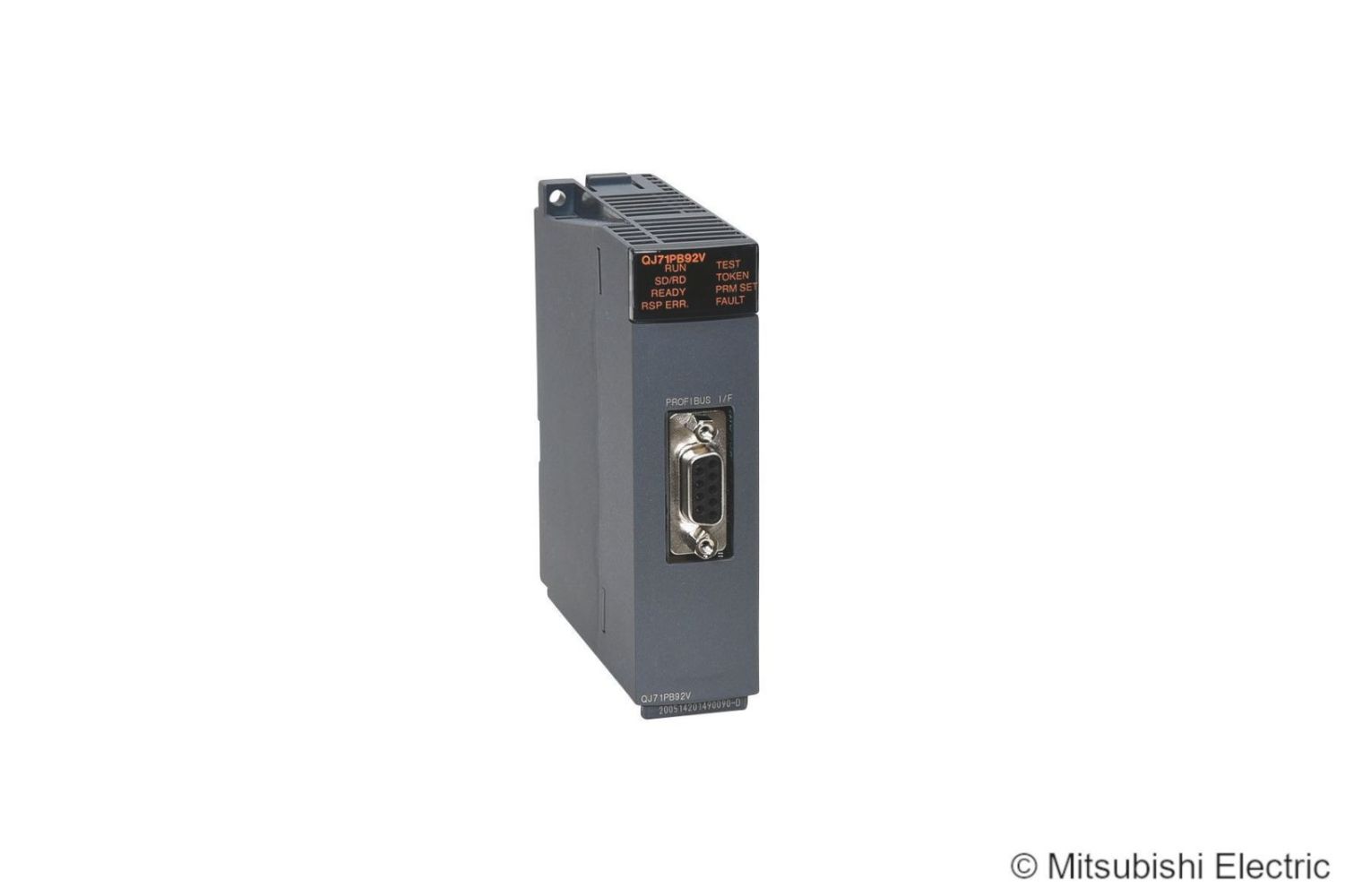

This image may differ from the desired article.
Mitsubishi 165374Mitsubishi 165374
693,93 EUR 724,10 EUR
( 825,78 EUR incl. VAT )
≈ £580.82  |  ≈ $762.63
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Mitsubishi 165374 QJ71PB92V PLC system Q Profibus DP master module DP-V1
Lieske Part No.:442506
Mfg Part No: 165374
Weight:0.207 kg
Type:QJ71PB92V

Product information for Mitsubishi 165374:

The Mitsubishi QJ71PB92V is a Profibus DP master module for the SPS-SystemQ, developed for integration into industrial automation systems. It serves as a central interface for communication with field devices over the Profibus-DP network and enables control and monitoring of peripheral devices in a decentralized architecture. The module supports the DP-V1 protocol, designed for efficient real-time data transmission, and is designed for use in demanding industrial environments.

Applications

The QJ71PB92V is used in production plants, manufacturing lines, and other automated systems where reliable communication between the control system and decentralized I/O modules or drives is required. It is particularly suitable for applications requiring high data rates and short cycle times, such as in the packaging industry, machine building, or automotive manufacturing. Integration into existing Profibus infrastructures is possible without additional conversion, simplifying system integration.

Functions and Features in Detail

The module functions as a master in the Profibus-DP network and can address multiple slave devices via a single interface. It supports communication with up to 125 slave stations, with the actual number depending on the network topology and device requirements. The maximum transmission rate is 12 Mbit/s, ensuring fast and reliable data transmission. Support for the DP-V1 protocol enables advanced features such as diagnostic data transmission and control of devices with higher complexity. The module is designed for operation in industrial environments and complies with standards IEC61158 and EN50170, which define technical requirements for fieldbus systems.

Technology Explained Simply

The technology of the QJ71PB92V is based on the Profibus-DP standard, a serial fieldbus developed for communication between controllers and decentralized devices in automation technology. As a master module, it initiates communication and organizes data exchange with connected slaves. The 12 Mbit/s transmission rate provides high bandwidth, sufficient for time-critical applications. Compliance with IEC61158 and EN50170 ensures interoperability with other devices that also meet these standards. The module is designed for installation in standard SPS enclosure housings and is controlled via the SPS controller.

Compatibility and Accessories

The QJ71PB92V is specifically designed for use with Mitsubishi SPS-SystemQ controllers. It is compatible with the corresponding systems and can be directly integrated into the controller. Communication takes place over the Profibus-DP network, with the connection established via an appropriate cable (e.g., Profibus-DP cable). The use of standard Profibus cables and connectors is possible, provided electrical and mechanical requirements are met.

Mounting and Installation

Mounting is performed in a standard SPS enclosure housing, where the module is inserted into the appropriate slot position. Electrical connection is made via the integrated Profibus interface, which is connected to the network using a Profibus-DP cable. Configuration is done via the SPS controller, where parameters such as baud rate, station address, and communication profiles are set in the control program. Installation does not require special tools, but compliance with electrical safety regulations and the controller’s mounting instructions is mandatory.

Operational Advantages

The QJ71PB92V provides reliable and fast communication in industrial environments. Support for the DP-V1 protocol enables advanced functions that enhance system performance. Compliance with international standards ensures interoperability and simplifies integration into existing systems. The high transmission rate of 12 Mbit/s ensures short cycle times, which is advantageous for time-critical applications. Integration into the SPS-SystemQ enables simple control and diagnostics via the central control unit.

General
ManufacturerMitsubishi
Product typeProfibus DP Master module
ProtocolDP-V1
Transmission rate12 Mbit/s
NormIEC61158/EN50170


Questions & answers

What is the delivery time of Mitsubishi 165374 QJ71PB92V PLC system Q Profibus DP master module DP-V1 ?

The article Mitsubishi 165374 QJ71PB92V PLC system Q Profibus DP master module DP-V1 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Mitsubishi 165374 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Mitsubishi 165374 QJ71PB92V PLC system Q Profibus DP master module DP-V1 always at the best possible price. We can give you a discount of 2% on Mitsubishi 165374 QJ71PB92V PLC system Q Profibus DP master module DP-V1 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
