Mitsubishi Logo

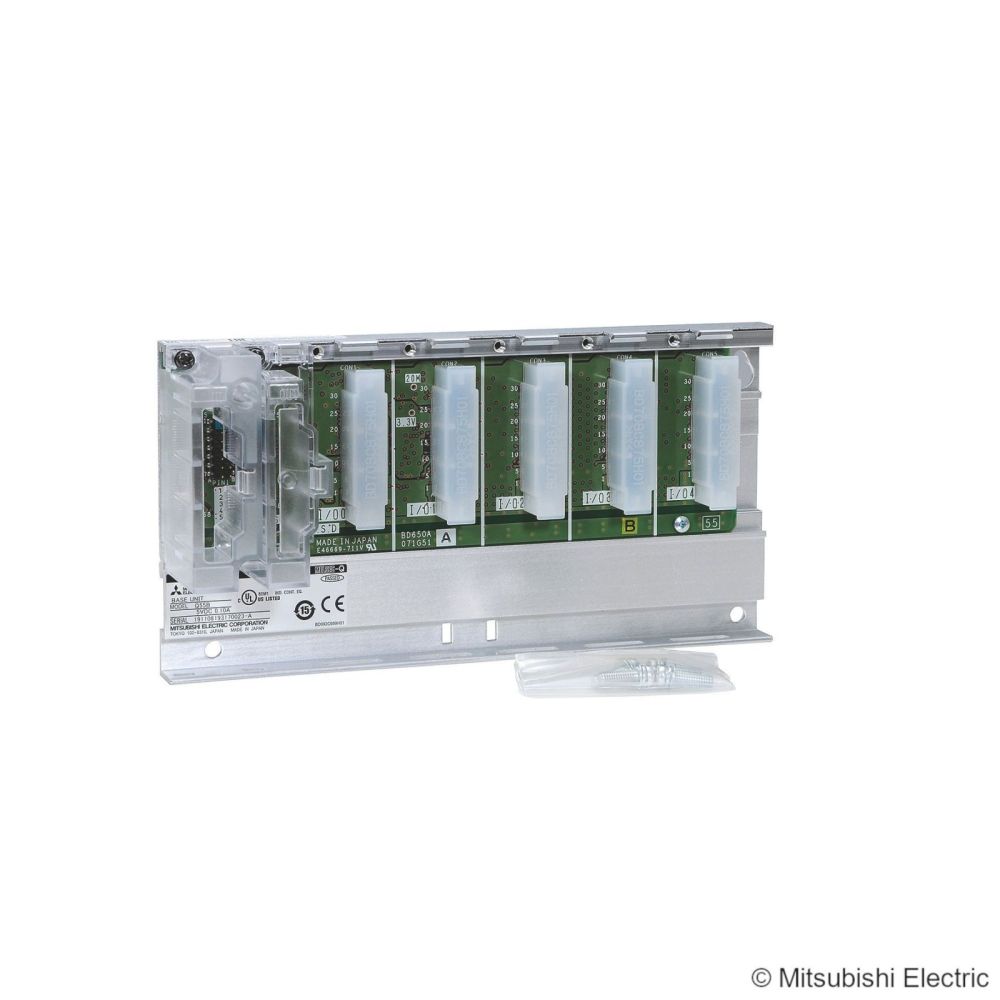

Mitsubishi 140377 Q55B expansion module carrier for 5 I/O modules

Your rating:
Average rating
product review for Mitsubishi 140377 Q55B expansion module carrier for 5 I/O modules
( 4.3 / 5 ) 15 ratings
Mitsubishi 140377
This image may differ from the desired article.
Mitsubishi 140377Mitsubishi 140377
254,06 EUR 265,10 EUR
( 302,33 EUR incl. VAT )
≈ £212.65  |  ≈ $279.21
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Mitsubishi 140377 Q55B expansion module carrier for 5 I/O modules
Lieske Part No.:904620
Mfg Part No: 140377
Weight:0.123 kg
Type:Q55B

Product information for Mitsubishi 140377:

The Mitsubishi Q55B is an expansion module carrier for the SystemQ PLC system, specifically designed for integrating up to five input/output modules (I/O modules). It serves as a mechanical and electrical base for expanding existing PLC systems, without an integrated power supply.

Applications

The Q55B is used in industrial environments where a flexible and scalable automation solution is required. It is suitable for applications in the manufacturing industry, packaging technology, machine building, and other areas where PLC systems are used to control processes and machines. The modular design allows application-specific adjustment of I/O capacity, with the module serving as an expansion component for existing SystemQ controllers.

Functions and Equipment in Detail

The expansion module carrier Q55B offers five slots for I/O modules, which can be individually selected and configured. The modules are directly inserted into the carrier and connected to the main system via the integrated plug-in connection. The carrier features a robust metal construction, ensuring secure mounting and mechanical stability. The connection options for the I/O modules are standardized, making them compatible with various module types available in the SystemQ ecosystem.

Technology Explained Simply

The module operates as a passive expansion unit without its own power supply. The supply voltage is provided by an external power supply unit, connected to the module via the appropriate terminal clamps. The electrical connection is made through a standardized interface, ensuring reliable data and power transmission between the main system and the I/O modules. The module is designed to be integrated into existing SystemQ controllers without requiring additional adapters or converters.

Compatibility and Accessories

The Q55B is specifically developed for use with I/O modules of the Mitsubishi SystemQ system. Compatibility is limited to modules intended for the SystemQ platform. Use with other PLC systems or modules from other manufacturers is not intended and not supported.

Mounting and Installation

Mounting is done by mechanically securing the module to the PLC controller or in the enclosure. The module is inserted into the designated mounting openings and fixed with screws or clamps. The electrical connection is made via the terminal clamps, connecting to the external power supply and the I/O modules. Installation does not require special tools, but proper wiring and secure fastening are necessary to ensure stable operation.

Advantages in Operation

Using the Q55B enables flexible expansion of I/O capacity without replacing the entire control unit. The modular design reduces maintenance and replacement times, as individual modules can be exchanged or added without shutting down the entire system. The module is designed for industrial environments and provides a reliable connection between the main system and the I/O modules.

General
Product typeExpansion module carrier
CompatibilitySystemQ I/O modules
Number of slots5
Power adaptorNone


Questions & answers

What is the delivery time of Mitsubishi 140377 Q55B expansion module carrier for 5 I/O modules ?

The article Mitsubishi 140377 Q55B expansion module carrier for 5 I/O modules is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Mitsubishi 140377 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Mitsubishi 140377 Q55B expansion module carrier for 5 I/O modules always at the best possible price. We can give you a discount of 2% on Mitsubishi 140377 Q55B expansion module carrier for 5 I/O modules if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
