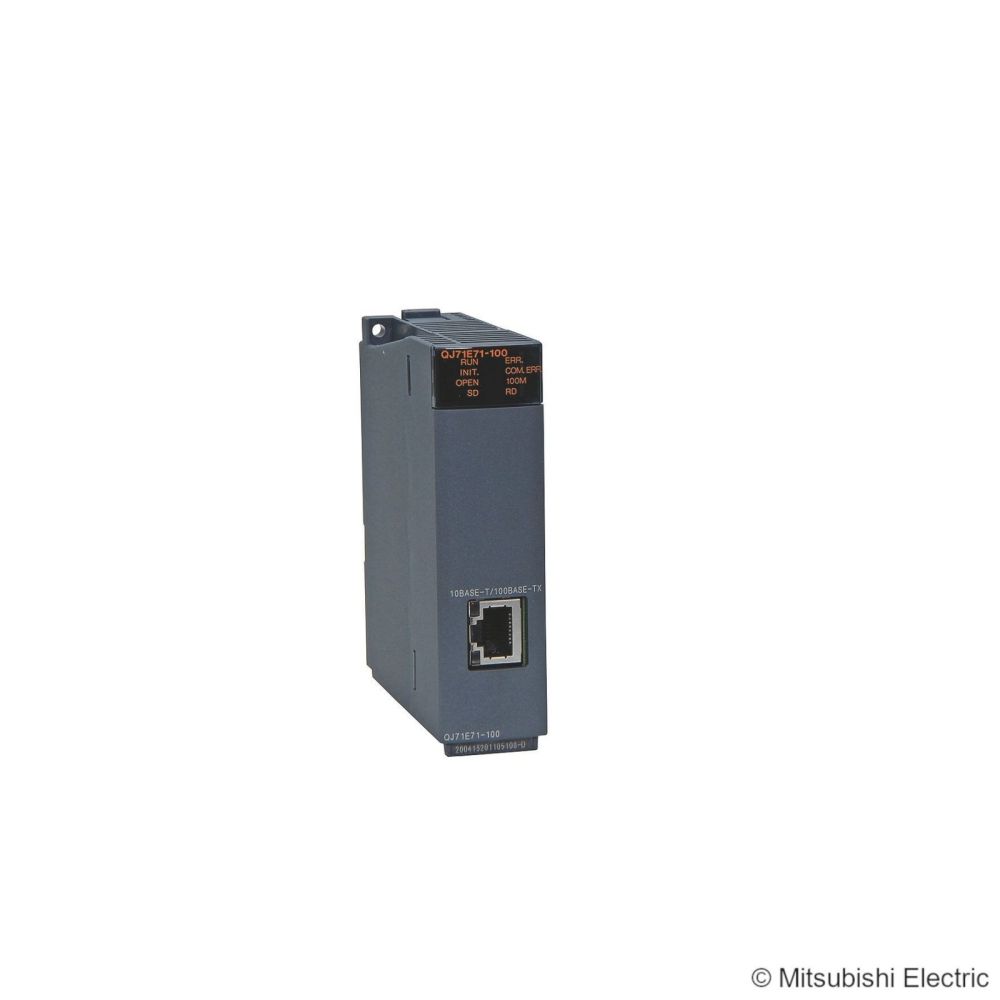

Mitsubishi 138327 QJ71E71-100 Ethernet module 100 Mbaud 10Base-T/100Base-TX

Your rating:
Average rating
product review for Mitsubishi 138327 QJ71E71-100 Ethernet module 100 Mbaud 10Base-T/100Base-TX
( 4.5 / 5 ) 10 ratings
Mitsubishi 138327
This image may differ from the desired article.
Mitsubishi 138327Mitsubishi 138327
684,72 EUR 714,49 EUR
( 814,82 EUR incl. VAT )
≈ £573.11  |  ≈ $752.51
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Mitsubishi 138327 QJ71E71-100 Ethernet module 100 Mbaud 10Base-T/100Base-TX
Lieske Part No.:618098
Mfg Part No: 138327
Weight:0.173 kg
Type:QJ71E71-100

Product information for Mitsubishi 138327:

The Mitsubishi QJ71E71-100 is an Ethernet module for the SPS-SystemQ, developed for integrating control systems into industrial networks. It enables data communication over Ethernet with a transmission rate of 100 Mbit/s and supports the standards 10Base-T and 100Base-TX. The module features an RJ45 connector, suitable for connection with network cables in industrial environments. It serves as an interface between the PLC and an Ethernet network, enabling data transmission, remote maintenance, or integration into higher-level control systems.

Ethernet module

The QJ71E71-100 is specifically designed for use in automation technology. It enables communication over Ethernet, allowing the PLC to be integrated into existing networks. The use of Ethernet as a transmission medium offers high bandwidth and enables the transfer of large data volumes, which is important for modern control systems with high data processing requirements.

Functions and equipment in detail

The module supports transmission rates of 10 Mbit/s (10Base-T) and 100 Mbit/s (100Base-TX), with the maximum speed of 100 Mbit/s ensuring efficient data transfer. The connection technology uses an RJ45 connector, which is standard in Ethernet networks. This connector enables a stable and reliable connection to switches, routers, or other Ethernet-capable devices. Communication occurs via the TCP/IP protocol, facilitating integration into existing network infrastructures.

Technology explained simply

The designation 10Base-T/100Base-TX describes the supported Ethernet transmission standards. 10Base-T refers to a transmission rate of 10 Mbit/s over twisted-pair cables, while 100Base-TX enables 100 Mbit/s. The module is therefore compatible with networks supporting these standards. The RJ45 interface is a standard connector for Ethernet connections and is widely used in industry. The use of Ethernet in automation technology enables a flexible and scalable network architecture.

Compatibility and accessories

The QJ71E71-100 is specifically developed for the Mitsubishi SPS-SystemQ and serves as a communication module within this system. It is intended for use with corresponding PLC controllers to integrate them into an Ethernet network. Exact compatibility with specific PLC models is not specified, but the module is part of the SystemQ ecosystem. No additional software or special configuration required for operation is mentioned.

Mounting and installation

The module is integrated into the PLC controller, with the exact mounting method not described. Installation is likely achieved by inserting it into a free slot of the PLC controller, with the physical network connection made via the RJ45 connector. The network cable connection is made using standard Ethernet cables suitable for the respective transmission rate. The exact configuration of network settings (IP address, subnet mask, gateway) is not part of the product description.

Advantages in operation

Integrating the QJ71E71-100 into an SPS-SystemQ enables the use of modern networking technologies in industrial automation. The high transmission rate of 100 Mbit/s ensures fast and reliable data transfer, which is important for time-critical applications. The use of Ethernet as a standard protocol simplifies integration into existing IT infrastructures and enables remote maintenance and monitoring of control systems over the network. The RJ45 interface is robust and widely used, facilitating maintenance and replaceability.

General
ManufacturerMitsubishi
PLC systemSystemQ
Transmission rate100 Mbit/s
Supported standards10Base-T/100Base-TX
Connection systemRJ45


Questions & answers

What is the delivery time of Mitsubishi 138327 QJ71E71-100 Ethernet module 100 Mbaud 10Base-T/100Base-TX ?

The article Mitsubishi 138327 QJ71E71-100 Ethernet module 100 Mbaud 10Base-T/100Base-TX is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Mitsubishi 138327 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Mitsubishi 138327 QJ71E71-100 Ethernet module 100 Mbaud 10Base-T/100Base-TX always at the best possible price. We can give you a discount of 2% on Mitsubishi 138327 QJ71E71-100 Ethernet module 100 Mbaud 10Base-T/100Base-TX if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
