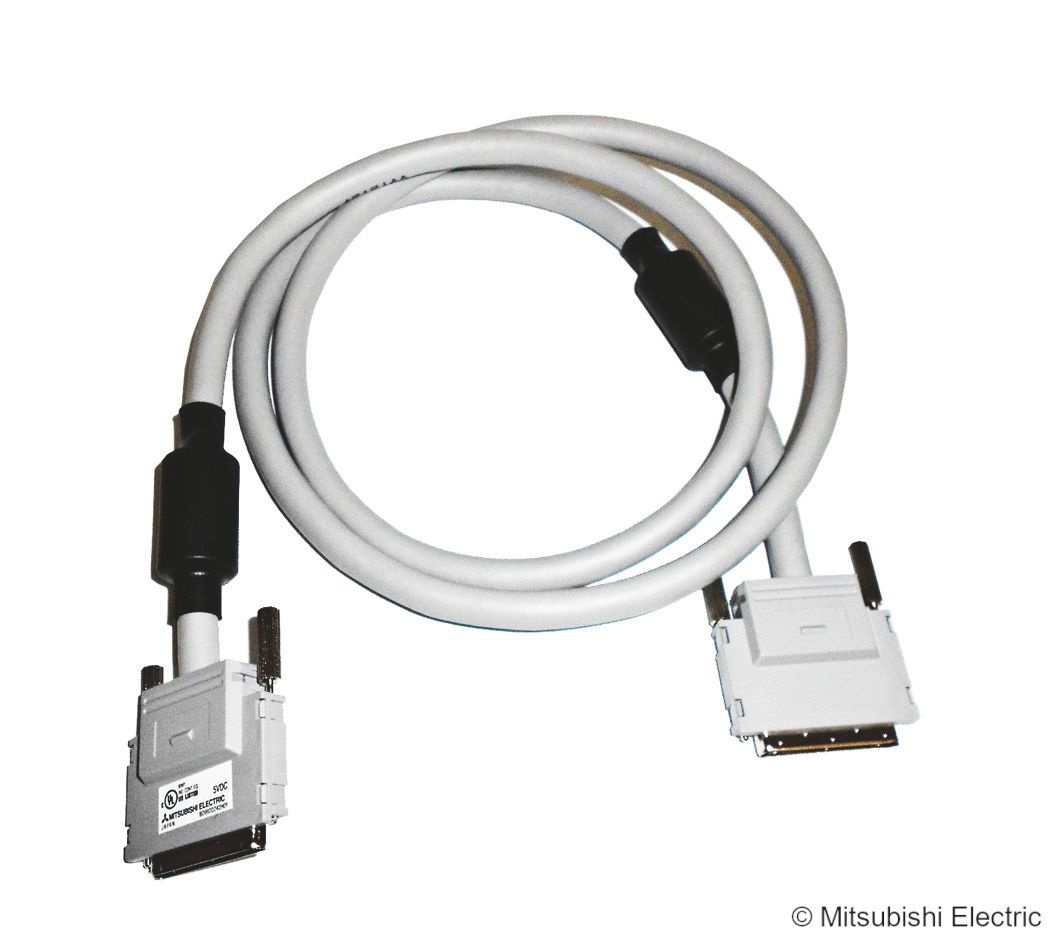

Mitsubishi 129642 QC12B connection cable for expansion module carrier 1.2 m

Your rating:
Average rating
product review for Mitsubishi 129642 QC12B connection cable for expansion module carrier 1.2 m
( 4.6 / 5 ) 14 ratings
Mitsubishi 129642
This image may differ from the desired article.
Mitsubishi 129642Mitsubishi 129642
88,08 EUR 89,71 EUR
( 104,82 EUR incl. VAT )
≈ £73.72  |  ≈ $96.80
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Mitsubishi 129642 QC12B connection cable for expansion module carrier 1.2 m
Lieske Part No.:999089
Mfg Part No: 129642
Weight:0.32 kg
Type:QC12B

Product information for Mitsubishi 129642:

The Mitsubishi QC12B is a connection cable for use in the SPS-SystemQ, specifically designed for connection with the expansion module carrier. It serves as a physical interface between the main controller and additional modules to extend the functionality of the control unit. The cable has a length of 1.2 meters and enables flexible arrangement of the modules within the control system. It is part of Mitsubishi's system architecture and is used in industrial automation installations where reliable and stable data transmission between components is required.

Connection cable for the expansion module carrier
The QC12B is a specific connection cable intended for use with the expansion module carrier in the Mitsubishi SPS-SystemQ. It establishes a direct, cable-based connection between the main controller and the connected expansion modules. The length of 1.2 meters provides sufficient clearance for positioning the modules within the enclosure without the cabling being too tight or too loose. The cable's construction is tailored to the requirements of industrial automation technology, with mechanical stability and electrical reliability being the primary focus.

Applications
The cable is used in industrial environments where SPS systems are employed to control production plants, manufacturing lines, or machines. It is part of system integration, where multiple modules are connected via a common carrier to extend control functions. Installation typically occurs in enclosures, where the cable is routed between the main controller and the connected expansion modules. The 1.2-meter length is suitable for standard arrangements in enclosures, with exact positioning varying according to enclosure size and number of modules.

Functions and equipment in detail
The connection cable transmits control and status signals between the main controller and the connected expansion modules. It is not intended for powering the modules, but exclusively for data communication. The mechanical design of the cable is robust to meet the demands of industrial environments. The connectors are designed to ensure a secure and durable connection, preventing contact issues. The cable construction is matched to the specific connectors of the expansion module carrier to enable unambiguous and error-free installation.

Technology explained simply
The QC12B cable is a passive connection element that does not perform active signal amplification or processing. It serves solely as a transmission medium for the electrical signals exchanged between the main controller and the expansion modules. These signals include control commands, status messages, and feedback, all necessary for the proper operation of the entire control system. The 1.2-meter length is sufficient to arrange modules within a typical enclosure without requiring additional extensions. Connection is made via specific connectors developed for the Mitsubishi SPS-SystemQ.

Compatibility and accessories
The connection cable QC12B is specifically developed for use with the expansion module carrier in the Mitsubishi SPS-SystemQ. It is not compatible with other systems or manufacturers, as the connectors and electrical specifications are tailored to the Mitsubishi system. Use with other modules or control systems is not intended and may result in malfunctions. No specific accessories are included with this cable; it is a single connection element without additional components.

Installation and mounting
Mounting of the QC12B is done by simply plugging the cable connectors into the corresponding sockets on the expansion module carrier and the main controller. No tools are required, as the connectors provide a secure connection without additional fastening. Installation takes place within the enclosure, and cable routing should be planned to avoid mechanical stress or bending radii that could impair functionality. The 1.2-meter length provides sufficient flexibility for module placement within the enclosure.

Advantages in operation
The connection cable QC12B provides a reliable and stable connection between the main controller and expansion modules. The mechanical robustness of the connectors ensures durable and error-free signal transmission. The 1.2-meter length allows for flexible module arrangement without requiring additional extensions or adapters. The specific design for the Mitsubishi SPS-SystemQ ensures compatible and flawless integration into existing systems.

General
ManufacturerMitsubishi
ApplicationConnection cable to expansion module carrier


Questions & answers

What is the delivery time of Mitsubishi 129642 QC12B connection cable for expansion module carrier 1.2 m ?

The article Mitsubishi 129642 QC12B connection cable for expansion module carrier 1.2 m is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Mitsubishi 129642 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Mitsubishi 129642 QC12B connection cable for expansion module carrier 1.2 m always at the best possible price. We can give you a discount of 2% on Mitsubishi 129642 QC12B connection cable for expansion module carrier 1.2 m if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
