MikroTik CRS326-24S2QRM Cloud Router Switch CRS326-24S+2Q+RM, 24x 10G SFP+, 2x 40G QSFP+, Rackmount

Your rating:
Average rating
product review for MikroTik CRS326-24S2QRM Cloud Router Switch CRS326-24S+2Q+RM, 24x 10G SFP+, 2x 40G QSFP+, Rackmount
( 4.4 / 5 ) 5 ratings

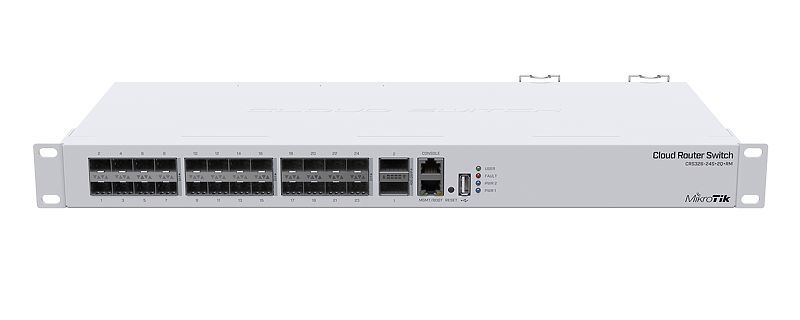

MikroTik CRS326-24S+2Q+RM
This image may differ from the desired article.
MikroTik CRS326-24S+2Q+RMMikroTik CRS326-24S+2Q+RM
464,39 EUR
( 552,62 EUR incl. VAT )
≈ £388.69  |  ≈ $510.36
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 16 workdaysinfo_outline
In Stock: >10 pieces
1x MikroTik CRS326-24S2QRM Cloud Router Switch CRS326-24S+2Q+RM, 24x 10G SFP+, 2x 40G QSFP+, Rackmount
Lieske Part No.:1788260
Mfg Part No: CRS326-24S2QRM
UPC/EAN: 4752224002211
Weight:2.75 kg

Product information for MikroTik CRS326-24S+2Q+RM:

The MikroTik Cloud Router Switch CRS326-24S+2Q+RM is a high-performance switch designed for use in professional network infrastructures. It combines the functions of a network switch with those of a router and allows management via RouterOS L5 or SwitchOS, with both operating systems available in dual-boot mode. The device is housed in a 1U rackmount enclosure, making it suitable for deployment in server racks and data centres. It features redundant power supply with two independent power units, increasing system availability and minimizing downtime.

Applications

The CRS326-24S+2Q+RM is designed for use in medium to large enterprise networks, data centres, and carrier networks. It supports high data rates and is suitable for network traffic aggregation as well as connecting multiple network segments. The combination of switch and router functions enables a flexible network architecture, consolidating routing and switching functions into a single device. Its 1U rackmount design makes it ideal for deployment in existing server and network environments.

Functions and Features in Detail

The device features 24 SFP+ ports, each capable of transmitting up to 10 gigabits per second. These ports are designed for use with SFP+ modules supporting either copper or fibre optic cables. Additionally, two QSFP+ ports are integrated, each capable of transmitting up to 40 gigabits per second. These ports are intended for use with QSFP+ modules, suitable for high-speed connections between switches or servers. A separate LAN port is provided for local management and configuration of the device. Management is performed via RouterOS L5 or SwitchOS, with both operating systems available in dual-boot mode.

Technology Explained Simply

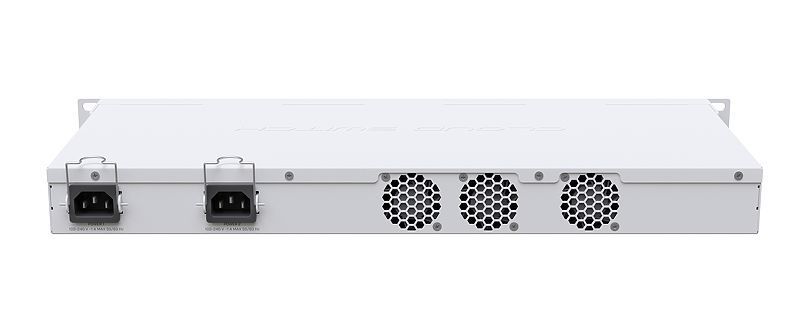

The 24 SFP+ ports enable connections to various network devices via fibre optic or copper cables, with transmission rates up to 10 Gbit/s. The two QSFP+ ports offer higher bandwidth of up to 40 Gbit/s and are suitable for high-performance applications such as server or storage connections. The redundant power supply with two independent power units increases system reliability, as in the event of a failure of one power unit, the other continues to supply power. The 1U rackmount enclosure allows for compact installation in standard 19-inch racks.

Compatibility and Accessories

To use the SFP+ and QSFP+ ports, corresponding modules are required. Compatible modules include SFP/SFP+/SFP28 modules for single-mode fibre with a reach of up to 10 km at 1310 nm, SFP+ modules for multimode fibre with a reach of up to 300 m at 850 nm, as well as RJ45 SFP+ copper modules supporting transmission rates of 10/100/1000M/2.5G/5G/10G.

Installation and Mounting

The switch is housed in a 1U rackmount enclosure and can therefore be mounted in standard 19-inch racks. Mounting is performed using integrated mounting holes and screws designed for rack installation. Power supply is provided via the two redundant power units, each connected to a separate power source. Management is performed via the integrated LAN port or through the network connection.

Operational Advantages

The combination of switch and router functions in a single device reduces the number of required hardware components and simplifies network architecture. The dual-boot feature with RouterOS L5 and SwitchOS offers flexibility in usage, depending on network requirements. The redundant power supply increases system availability, and the 1U rackmount design enables compact placement in existing infrastructures. Support for SFP+ and QSFP+ modules provides flexibility in choosing transmission media and rates.

General
Number of SFP+ ports24
Number of QSFP+ ports2
SFP+ transmission rate10 Gbit/s
QSFP+ data rate40 Gbit/s
Operating systemsRouterOS L5, SwitchOS
Rack mounting1U
Current supplydual redundant
Management port1x LAN
Dual-bootYes


Questions & answers

What is the delivery time of MikroTik CRS326-24S2QRM Cloud Router Switch CRS326-24S+2Q+RM, 24x 10G SFP+, 2x 40G QSFP+, Rackmount?

The article MikroTik CRS326-24S2QRM Cloud Router Switch CRS326-24S+2Q+RM, 24x 10G SFP+, 2x 40G QSFP+, Rackmount is currently in stock

According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of MikroTik CRS326-24S+2Q+RM to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you MikroTik CRS326-24S2QRM Cloud Router Switch CRS326-24S+2Q+RM, 24x 10G SFP+, 2x 40G QSFP+, Rackmount always at the best possible price. We can give you a discount of 2% on MikroTik CRS326-24S2QRM Cloud Router Switch CRS326-24S+2Q+RM, 24x 10G SFP+, 2x 40G QSFP+, Rackmount if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for MikroTik CRS326-24S2QRM Cloud Router Switch CRS326-24S+2Q+RM, 24x 10G SFP+, 2x 40G QSFP+, Rackmount

MikroTik XS31LC10D Accessory SFP/SFP+/SFP28 module 1/10/25G Single Mode 10km 1310nm MikroTik XS31LC10D Accessory SFP/SFP+/SFP28 module 1/10/25G Single Mode 10km 1310nm SFP/SFP+/SFP28 modules 1/10/25G Single Mode 10km 1310nm

Lieske Part No.: 552619
Mfg Part No: XS31LC10D
112,78 EUR
MikroTik XS31LC10D plus VAT
≈ £94.40  |  ≈ $123.95
Delivery time from supplier's stock (ca.) 17 workdaysinfo_outline
MikroTik S85DLC03D Accessory SFP+ module 10G MM 300m 850nm MikroTik S85DLC03D Accessory SFP+ module 10G MM 300m 850nm MikroTik Accessories SFP + modules MM 10G 300m 850nm
SFP + modules MM 10G 850nm 300m

Lieske Part No.: 836993
Mfg Part No: S85DLC03D
45,89 EUR
MikroTik S85DLC03D plus VAT
≈ £38.41  |  ≈ $50.43
Delivery time from supplier's stock (ca.) 16 workdaysinfo_outline
MikroTik SRJ10 Accessory RJ45 SFP+ 10/100/1000M/2.5G/5G/10G copper module S+RJ10 MikroTik SRJ10 Accessory RJ45 SFP+ 10/100/1000M/2.5G/5G/10G copper module S+RJ10 RJ45 SFP+ 10/100/1000M/2.5G/5G/10G cooper modules

Lieske Part No.: 1075630
Mfg Part No: SRJ10
51,63 EUR
MikroTik SRJ10 plus VAT
≈ £43.21  |  ≈ $56.74
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
