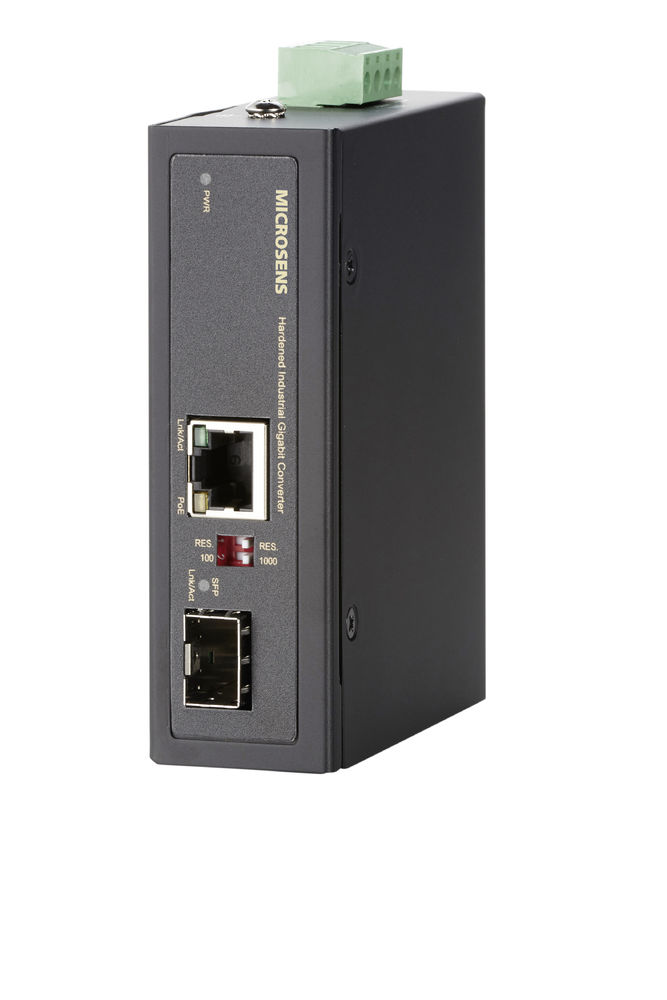

Industrial Gigabit Ethernet Bridging Converter, 1x 10/100/1000T PoE+ (30W) to 100/1000X SFP port, -40..+75°C
DinRailThe MICROSENS Entry Line Industrial Gigabit Ethernet Bridge Series offers a robust and versatile solution for industrial networks. With options supporting Power-over-Ethernet (PoE+) and High-Power PoE (HI-PoE), these devices are ideal for demanding environments. The series includes three variants: the base version (MS657099X), the PoE+ version (MS657099PX) delivering up to 30 W, and the HI-PoE version (MS657099PHX) delivering up to 60 W.

Featuring a dual-speed SFP slot (100/1000Base-X) and an RJ-45 port (10/100/1000Base-T), the bridge enables flexible and reliable connectivity. Fully compliant with IEEE 802.3af and 802.3at standards (PoE versions only), it offers a durable metal housing with IP30 protection and supports DIN rail or wall mounting.

Features:

• Variants:
- MS657099X: Standard Gigabit Ethernet Bridge
- MS657099PX: Gigabit Bridge with PoE+ (30 W)
- MS657099PHX: Gigabit Bridge with HI-PoE (60 W)

• Ports:
- 1x 10/100/1000Base-T (RJ-45)
- 1x 100/1000Base-X (SFP slot, transceiver not included)
- Pluggable terminal block for power supply
- Grounding screw

• Housing:
- IP30 protection, metal casing
- DIN rail or wall mounting (bracket included)

• Power Supply:
- Input: 12–56 V DC (base version)
- Input: 48–56 V DC (PoE versions only)
- External power supply not included


Technical Specifications:



• Network:
- Switching Fabric: 4 Gbps
- Data Processing: Store-and-Forward
- MAC Table: 2K entries
- Jumbo Frames: up to 9 kB
- Flow Control: IEEE 802.3x pause frames

• PoE Power:
- PoE+ (PX): max. 30 W per port (IEEE 802.3at, Class 0)
- HI-PoE (PHX): max. 60 W per port

• Environmental Conditions:
- Operating Temperature: -40 °C to +75 °C
- Storage Temperature: -40 °C to +85 °C
- Humidity: 5% to 95%, non-condensing

• Dimensions:
- 81 x 32 x 103.5 mm (L x W x H, excluding connectors)

• MTBF: 510,304 hours (at 25 °C)

Ordering Information:

• Variants:
- MS657099X: Gigabit Bridge (Standard)
- MS657099PX: Gigabit Bridge with PoE+ (30 W)
- MS657099PHX: Gigabit Bridge with HI-PoE (60 W)

• Accessories:
- SFP transceivers (various options available separately)
- DIN rail power supplies (MS700440, MS700455, MS700456)


Applications:


The Industrial Gigabit Ethernet Bridge Series is perfectly suited for use in harsh environments where reliability, flexibility, and PoE functionality are required. Typical applications include industrial networks, security setups, and powering end devices like cameras and sensors via PoE.
