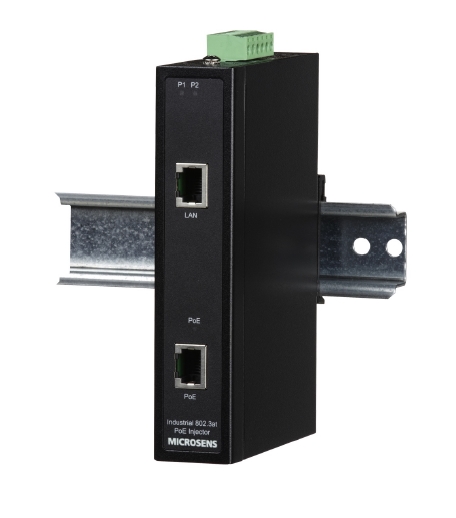

MICROSENS MS657032X-24 GbE Industrial Entry Line PoE injector Class 6 24V 1x 10/100/1000T, 1x 10/100/1000T PoE 60W, DIN rail, -40..+75°C, 24..56VDC content_copy

The MICROSENS MS657032X-24 is an industrial Gigabit Ethernet High-Power PoE injector designed for use in demanding industrial environments. It enables power supply to PoE-capable end devices via the existing network cable, with a maximum power consumption of up to 60 watts. The device is designed for operation within a wide voltage range of 24 to 56 VDC and can be used in environments with temperatures from -40 to +75 °C. The metal construction ensures high mechanical stability and resistance to environmental influences.

Applications

The PoE injector is intended for industrial applications where a reliable and robust network connection with integrated power supply is required. Typical use cases include powering IP cameras, industrial sensors, access points, or other PoE-capable devices in production facilities, factories, logistics centers, or outdoor environments. The wide operating temperature range and robust housing design make it particularly suitable for climatically and mechanically demanding environments.

Functions and Features in Detail

The device features two RJ-45 sockets: one for data input (Data In) and one for PoE output (PoE Out). Data transmission occurs according to the Gigabit Ethernet standard (10/100/1000T), ensuring high transmission rates and low latency. The PoE function complies with IEEE802.3af/at standards, ensuring compatibility with a wide range of PoE-capable end devices. The integrated step-up converter ensures that the input voltage in the range of 24 to 56 VDC is boosted to the required output voltage for PoE, enabling flexible connection to various industrial power supplies.

Technology Explained Simply

The PoE injector transmits data and power over a single Ethernet cable, eliminating the need for separate power cables. This simplifies installation and reduces the number of cables in the network. Power supply is provided via the network cable according to the PoE standard (IEEE802.3af/at), with a maximum power consumption of 60 watts. The use of a step-up converter allows the required PoE voltage to be generated even at lower input voltages (starting from 24 VDC). The metal housing provides additional protection against mechanical stress and electromagnetic interference.

Compatibility and Accessories

The injector is compatible with all devices supporting the PoE standard IEEE802.3af/at. Connection is made via standardised RJ-45 connectors. Devices can be directly connected to existing network infrastructures, with power supplied via the network cable.

Mounting and Installation

The device is designed for mounting on a DIN rail, enabling simple and standardised installation in enclosures or control cabinets. Installation is performed by securing the device to the rail, with data and power connections directly accessible. The operating temperature range of -40 to +75 °C allows use in extreme environments without requiring additional cooling or heating measures.

Operational Advantages

The high power consumption of up to 60 watts enables the supply of even power-intensive devices. The robust metal construction and wide operating temperature range ensure high reliability in industrial applications. DIN rail mounting facilitates integration into existing enclosures and enables structured cabling.
