MICROSENS Industry 6 Port Fast Ethernet Switch with Ring Fun content_copy

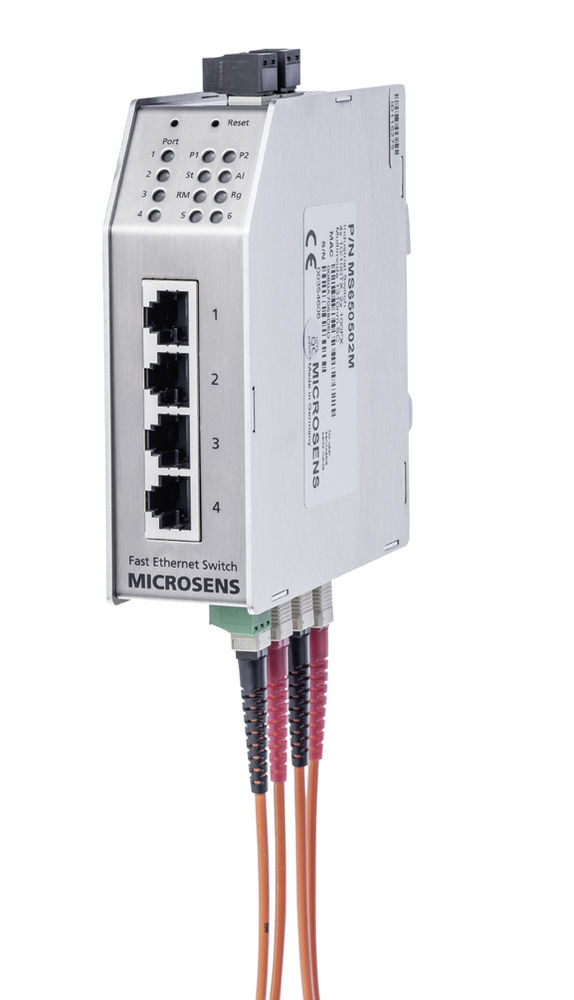

Industrial Fast Ethernet Ring Switch 4x10 / 100Base-TX, 2x100Base-FXRedundant uplink single-mode 1310nm 15km STThe 6-Port FE Industrial Profi Line Switch provides a compact and robust solution for demanding networking requirements in industrial environments. With its capability to operate reliably in harsh conditions, this switch supports modern IP-based applications such as large-scale WLAN coverage or video surveillance systems. The switch allows flexible network topologies, including star, bus, and ring topologies, with the ring topology ensuring communication recovery within 100 ms in the event of a segment failure.

The switch also offers Power-over-Ethernet (PoE) options, enabling connected devices to operate without separate power supplies. Featuring two fiber uplinks (100Base-FX) and four Fast Ethernet ports (10/100Base-TX), this switch is ideal for integration into existing or new industrial networks.

Technical Specifications:

Switch:

• Type: Fanless Fast Ethernet Switch
• Layer 2+, IEEE 802.3 compliant
• Performance: Store-and-forward, Full wire-speed, non-blocking on all ports
• MAC Addresses: 1,024 addresses, automatic learning and aging
• VLANs: IEEE 802.3ac tagging, 0-4095 VLAN IDs, static/dynamic
• QoS: 4 hardware queues per port, prioritization based on IPv4/IPv6, VLAN Priority IEEE 802.1p, port

Environmental Conditions:

• Operating Temperature: -20 °C to +60 °C (Standard), -40 °C to +75 °C (X-Version)
• Storage Temperature: -40 °C to +85 °C
• Humidity: 5–90 %, non-condensing

Local Ports:

• Quantity: 4
• Type: 10/100Base-TX Fast Ethernet
• Connector: RJ-45 jack, shielded
• Cable Type: Twisted-pair category 5, max. 100 m
• Features: Auto MDI/MDI-X, Auto Polarity, Flow Control (IEEE 802.3x)

Uplink Ports:

• Quantity: 2
• Type: 100Base-FX (Fast Ethernet)
• Cable Type: Multimode (62.5/125 µm or 50/125 µm), Single Mode (9/125 µm)

Power-over-Ethernet (PM Version only):

• PSE: IEEE 802.3af
• Quantity: 4 Ports
• Power: max. 15.4 W/port, total max. 65 W

Power Supply:

• 24 VDC Version:
- Input: 24 VDC
- Power Consumption: Typ. 6 W
- Connector: 2x 2-pin screw terminals (+/-)

• 48 VDC Version (PM):
- Input: 48 VDC
- Power Consumption: Typ. 6 W (without PoE), max. 65 W (with PoE)
- Connector: 2x 2-pin screw terminals (+/-)

• Grounding: Via DIN rail/grounding screw

Mechanical:

• Dimensions: 36 x 116 x 108 mm (W x H x D)
• Weight: 790 g
• Cooling: Passive, fanless
• Protection Class: IP30

Network Management:

• Features: VLAN, QoS, Ring topology with 100 ms recovery time
• Supported Standards: IEEE 802.1p, IEEE 802.3ac, IEEE 802.3af, etc.
• Management: Web, Telnet, SSH, SNMP v1/v2c/v3

Standards:

• Safety: EN 60950-1
• EMC: CE 2004/108/EC, EN 55022, EN 55024
• Reliability: MTBF 400,000 h (MIL HDBK-217F)

Package Contents:

• 1x 6-Port FE Industrial Profi Line Switch
• 1x User Manual
• 1x Installation Kit

Ordering Information:

• Variants:
- MS650501M: 2x 100FX ST/MM 1310 nm, 4x 10/100TX, 24 VDC
- MS650501PM-48: 2x 100FX ST/MM 1310 nm, 4x 10/100TX, 48 VDC with PoE
- Additional models available with different ranges (15 km, 40 km, 80 km) and connection types


Accessories:

• Power Supplies:
- MS700440: DIN rail power supply, 24 VDC/1.25 A
- MS700430: DIN rail power supply, 48..56 VDC/1.25 A

• Software:
- NMP Professional Network Management Platform: MS200160-1
- NMP Server with additional licenses available


Further Information:

Detailed technical specifications and firmware features are available on the MICROSENS website.
