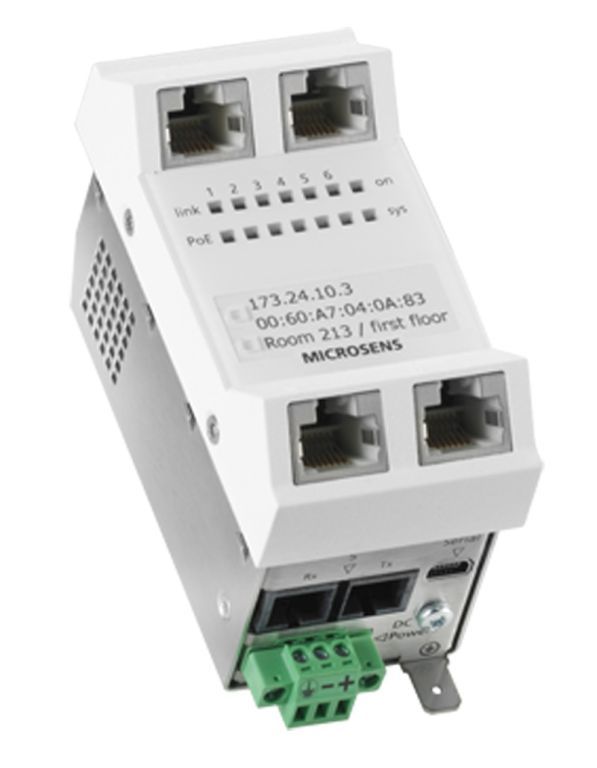

Microsens 6 Port Gigabit PoE + Switch cable channel, vertical M

GBE Installation Switch 4x10/100/1000Base-T + PoE / PoE + uplink: 1x1000Base-SX, ST multi-mode 850 nm, Downlink: 1x10/100/1000Base-T + PoE +, Vertical mounting, 44 VDC .57 Stromversorgung5x RJ 45, 1 x ST Duplex, 1 x 3-pin DCNeben the 1000Base-X fiber uplink for connection to the central distribution of this switch has an additional RJ-45 downlink port (10/100/1000Base-T). This connector is located on the inboard side of the switch and is by installing verdeckt.Mit this version can switch the connected devices, such as VoIP phones, IP cameras, or APs with Power-over-Ethernet and Power-over- Ethernet Plus are directly supplied with electricity. All 5x RJ-45 ports (4 user ports and 1 downlink) support the full functionality PoE according to IEEE Std 802.3af and 802.3at (at least 54VDC input voltage). A smart power management monitors the current power consumption of connected devices. The supply of installation switches via an external 54 VDC power supply. fiber optic and Ethernet network solutions, designed for industry, commercial environments, and infrastructure applications. The company is known for high performance, security, and compact designs, making it ideal for modern networking installations. <h3>Product Range</h3>

The 6-Port Gigabit Ethernet Switch in M45 design from MICROSENS is a space-saving, high-performance, and secure networking solution, perfect for installations in cable ducts, floor tanks, and other confined spaces:

Smallest and most compact Gigabit Ethernet switch in M45 design for tool-free installation.
6-Port non-blocking Full-Gigabit Switch:
Six RJ-45 ports with 10/100/1000 Mbps ensure high network performance with zero packet loss.
Maximum network security:
SSH, HTTPS, SNMPv3, Port Security 802.1x, and full RADIUS NAC compatibility provide advanced protection against unauthorized access.
Power-over-Ethernet (PoE+) support:
Up to 30W per port to flexibly power devices such as IP cameras, VoIP phones, and access points.
Flexible Fiber Optic SFP Uplink:
Dual-Speed 100/1000Base-X for reliable fiber connectivity.
Optional 2x fiber version for redundant network topologies.
Version with fixed integrated fiber optic (SC/ST) available.
Intuitive management and control:
Web, SSH, and SNMP interfaces for easy configuration.
MICROSENS NMP software for centralized monitoring and management.

<h3>Why MICROSENS?</h3>

MICROSENS delivers compact, highly secure, and high-performance networking solutions, making it ideal for installations in space-constrained areas such as cable ducts and floor tanks. With integrated PoE+ support, flexible fiber uplink options, and cutting-edge security features, this switch is a future-proof choice for professional network infrastructures.

For more information, visit the official MICROSENS website: www.microsens.com
