MICROSENS 3 Slot Chassis Enterprise, 48,3 cm ( 19 inch ), MS416006

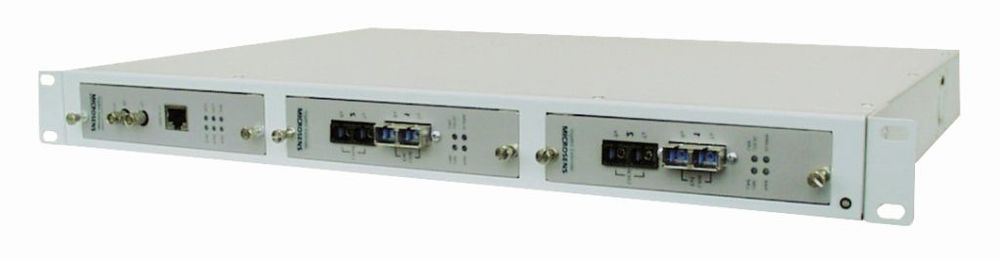

Enterprise Chassis 1 HU, 3 module plug-in slots, incl. 40VA / 230VAC power supplyThe MICROSENS MSP800 chassis variants provide the foundation for a modular and flexible system designed specifically for modern, fiber-optic-based network infrastructures. The platform is suitable for both LAN and WAN applications as well as telecommunication and industrial interfaces. The modular design enables easy adaptation to various requirements and use cases.

The chassis support the integration of function modules such as multimode/singlemode converters, wavelength converters, bridges, and G.703 converters. With hot-swap functionality, modules can be replaced during operation without impacting system availability. For added reliability and failover protection, redundant power supplies can be integrated.

Chassis Variants:

• MS416001M (3U):
- Accommodates up to 12 modules (with one power supply) or 10 modules (with two power supplies)
- Compatible with 230 VAC, 48 VDC, or 24 VDC power supplies
- Includes backplane for power supply and management
- Depth: 250 mm


• MS416006M (1U):
- Accommodates up to 3 modules (horizontal, 6 TE)
- Integrated 230 VAC power supply (40 W)
- Compact design with only 1U height
- Depth: 285 mm


• MS416007M (1U, redundant power supply):
- Accommodates up to 3 modules (horizontal, 6 TE)
- Redundant power supplies (2x 230 VAC, 40 W)
- Monitored fans for additional operational security
- Depth: 285 mm


• MS417001 (Desktop Chassis):
- For 1 module
- Includes external power supply (100–230 VAC, 1.3 A)
- Compact design for desktop applications
- Dimensions: 38 x 132 x 240 mm (WxHxD)


Technical Specifications:



• Dimensions:
- 3U Chassis (MS416001M): 482 x 130 x 250 mm (WxHxD)
- 1U Chassis (MS416006M/007M): 482 x 43 x 285 mm (WxHxD)
- Desktop Chassis (MS417001): 38 x 132 x 240 mm (WxHxD)

• Power Supply:
- MS416001M: Compatible with 230 VAC, 48 VDC, or 24 VDC power supplies (optionally 1 or 2 power supplies for redundancy)
- MS416006M: Integrated 230 VAC power supply (40 W)
- MS416007M: Redundant 230 VAC power supplies (2x 40 W)
- MS417001: External power supply (100–230 VAC, 1.3 A)

• Operating Temperature: 0 °C to 55 °C
• Storage Temperature: -20 °C to 80 °C
• Humidity: 5% to 80%, non-condensing

Chassis Components:

• Power Supplies for 3U Chassis (MS416001M):
- MS416004M: Power supply module 230 VAC, 90 W
- MS416005M: Power supply module 48 VDC, 90 W
- MS416005M-24: Power supply module 24 VDC, 90 W

• Blanking Panels:
- MS416100: For unused slots in 3U or 1U chassis

• Fan Modules:
- Included by default in 3U and 1U chassis (monitored via management)


Applications:


The MSP800 chassis variants are ideal for use in data centers, telecommunication systems, and industrial applications. With their modular design and hot-swap functionality, networks can be quickly and flexibly expanded or adapted. Integrated redundancy options ensure maximum reliability for mission-critical applications.
